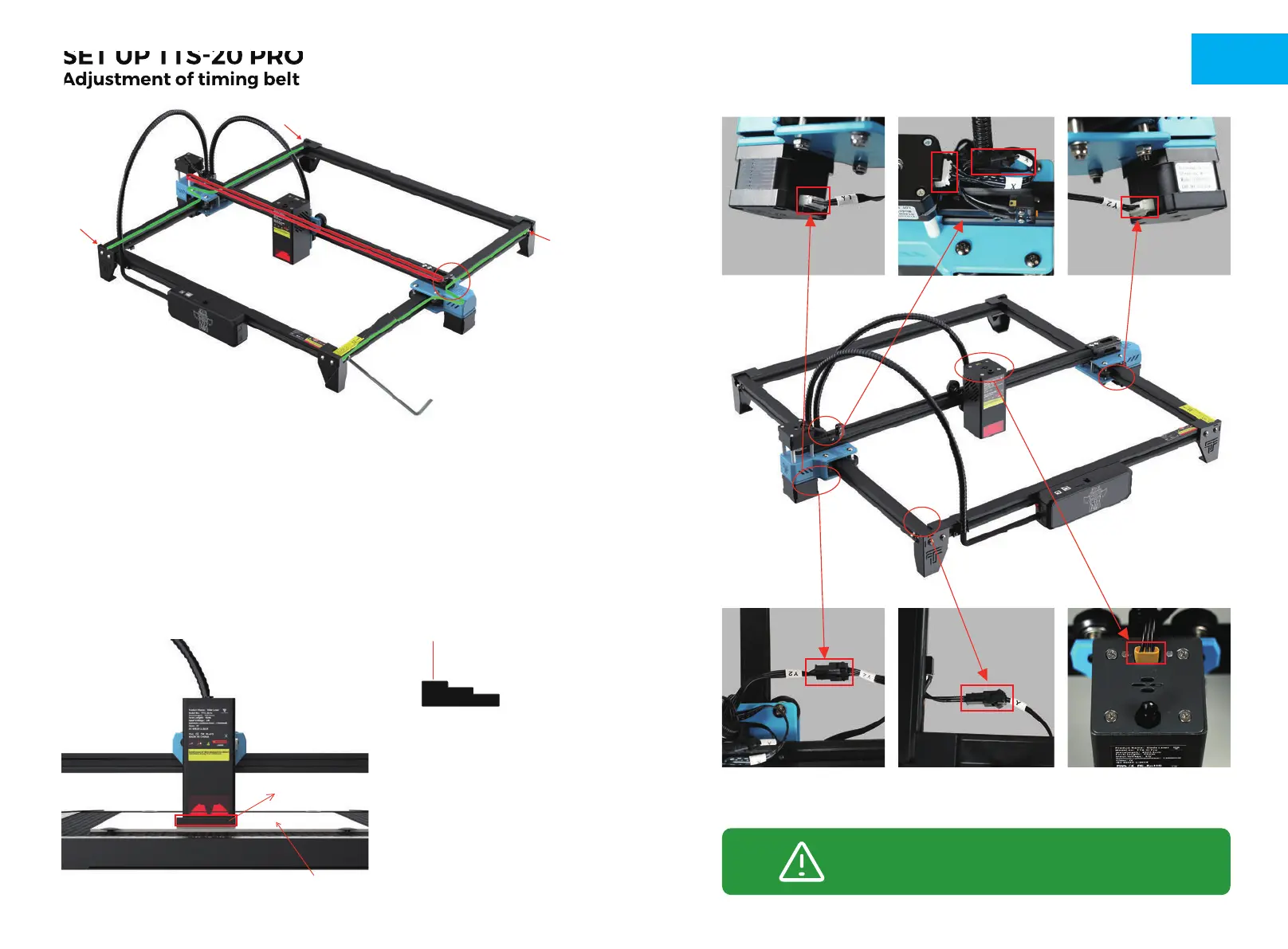

SET UP TTS-20 PRO
Adjustment of timing belt
SET UP TTS-20 PRO
Adjustment of timing belt
Side timing belt adjustment:
Lock the timing belt fixing screws on one side, pull the
timing belt tight on the other side and then lock the side
screws.
X-axis timing belt adjustment:
Check that the timing belt is hung on the X-axis motor
wrench
Adjust the focus
Laser Module
Fixed-thickness plate
Engraving/cutting height
Fixed-thickness plate
Engraving material
MACHINE WIRING
Y1 motor
X-axis motor cable
X-axis limit cable Y2 motor
Y2 motor pair wiring
(At the bottom)
Y-axis limit Laser module wiring
After the wire is connected, please try to push the machine
to move and check whether the wire will interfere with the
movement of the machine.
