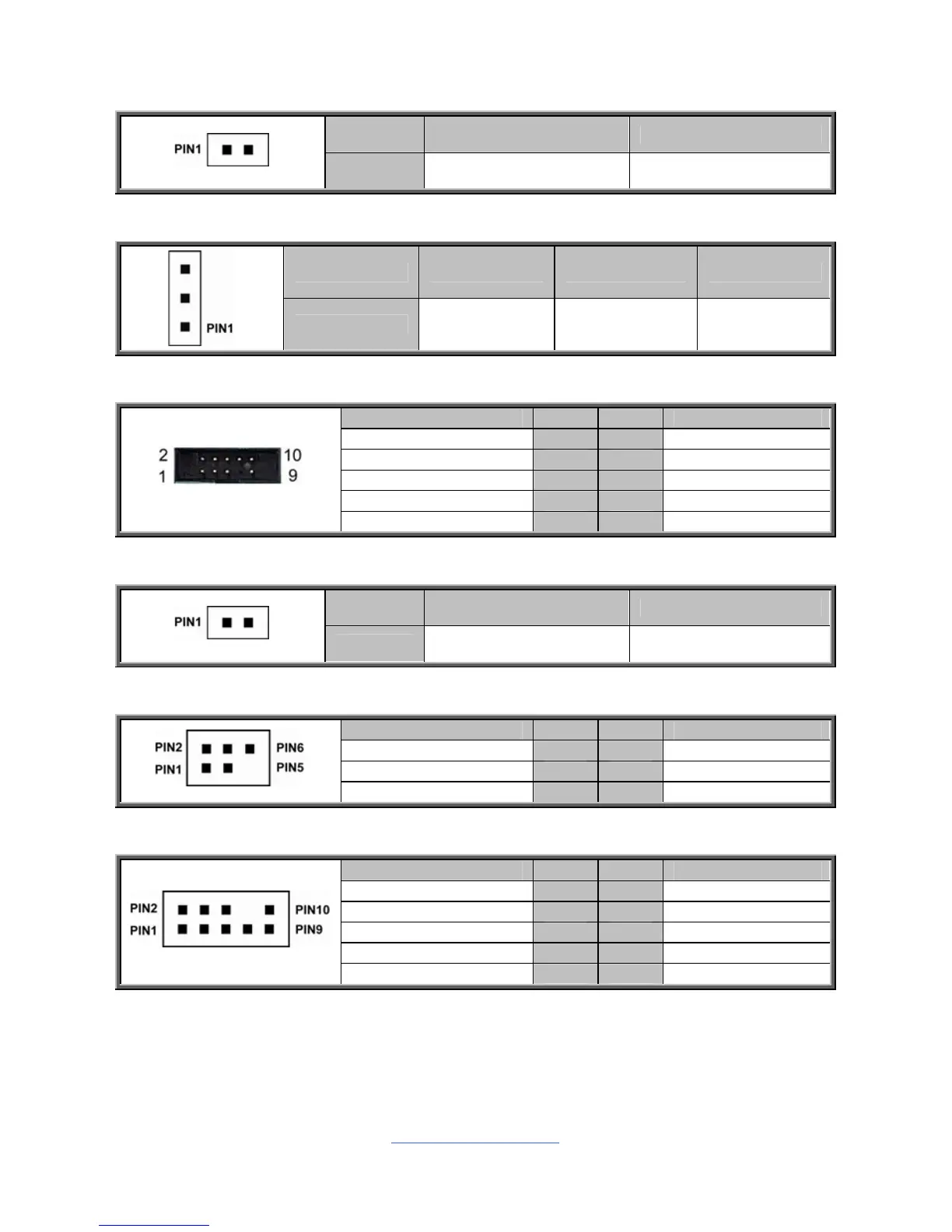

J8: IDLED SW Header
Pin 1 2
Signal FP IDLED Switch FP IDLED Switch (GND)
J34: Patsburg Upgrade ROM Module Connector
Pin 1 2 3
Signal GND SKU KEY GND
J49: SATA SGPIO Header for BB HD Board
Signal Pin Pin Signal
SMB CLK 1 2 SGPIO DATA0
SMB DATA 3 4 SGPIO DATA1
GND 5 6 SGPIO LOAD
KEY 7 8 SGPIO CLOCK
3.3V Standby 8 10 BP HDD FAULT
J66: Flash Security Override Header
Pin 1 2
Signal V3P3_AUX AUD_AZA_SDO
J51: HDD Fault Header for BB HD Board
Signal Pin Pin Signal
VCC 1 2 SMB CLK
GND 3 4 SMB DATA
KEY 5 6 HDD FAULT
J1: Front Panel Audio Header
Signal Pin Pin Signal
MIC2 L 1 2
AGND
MIC2 R 3 4
NC
LINE2 R 5 6
MIC2 JD
SENSE
7 8
KEY
LINE2 L 8 10
LINE2 JD
