2.11 Connecting External Devices

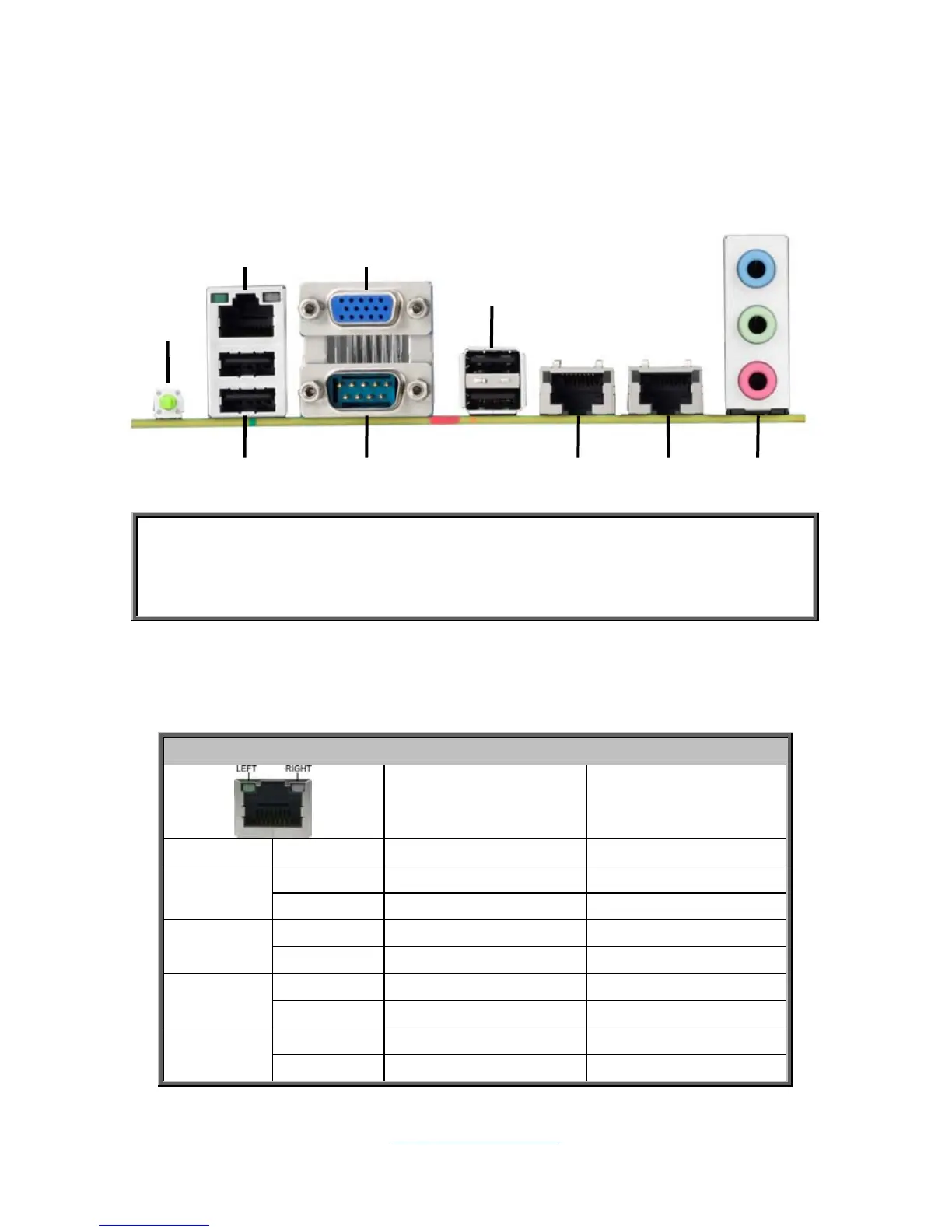

Connecting external devices to the motherboard is an easy task. The motherboard
supports a number of different interfaces through connecting peripherals. See the
following diagrams for the details.
NOTE:
1. When i350 LAN chip is on, LAN1 and LAN2 can support 10Mbps~1Gbps.
2. When X540 LAN chip is on, LAN1 and LAN2 can support up to 100Mbps~10Gbps.
3. Peripheral devices can be plugged straight into any of these ports but software
may be required to complete the installation.
Onboard LAN LED Color Definition
The three (3) onboard Ethernet ports have green and yellow LEDs to indicate LAN
status. The chart below illustrates the different LED states.
10/100/1000 Mbps LAN Link/Activity LED Scheme
Left LED
(Link/Activity)
Right LED
(Speed)
No Link OFF OFF
Link Green OFF
10 Mbps
Active Blinking Green OFF
Link Green Solid Green
100 Mbps
Active Blinking Green Solid Green
Link Green Solid Yellow
1000 Mbps
Active Blinking Green Solid Yellow
Link Yellow Solid Yellow
10 Gbps
Active Blinking Yellow Solid Yellow
LAN3 (Intel 82574L)
shared with IPMI
LAN2
VGA
COM1
ID LED
Button
LAN1
USB x2
