36

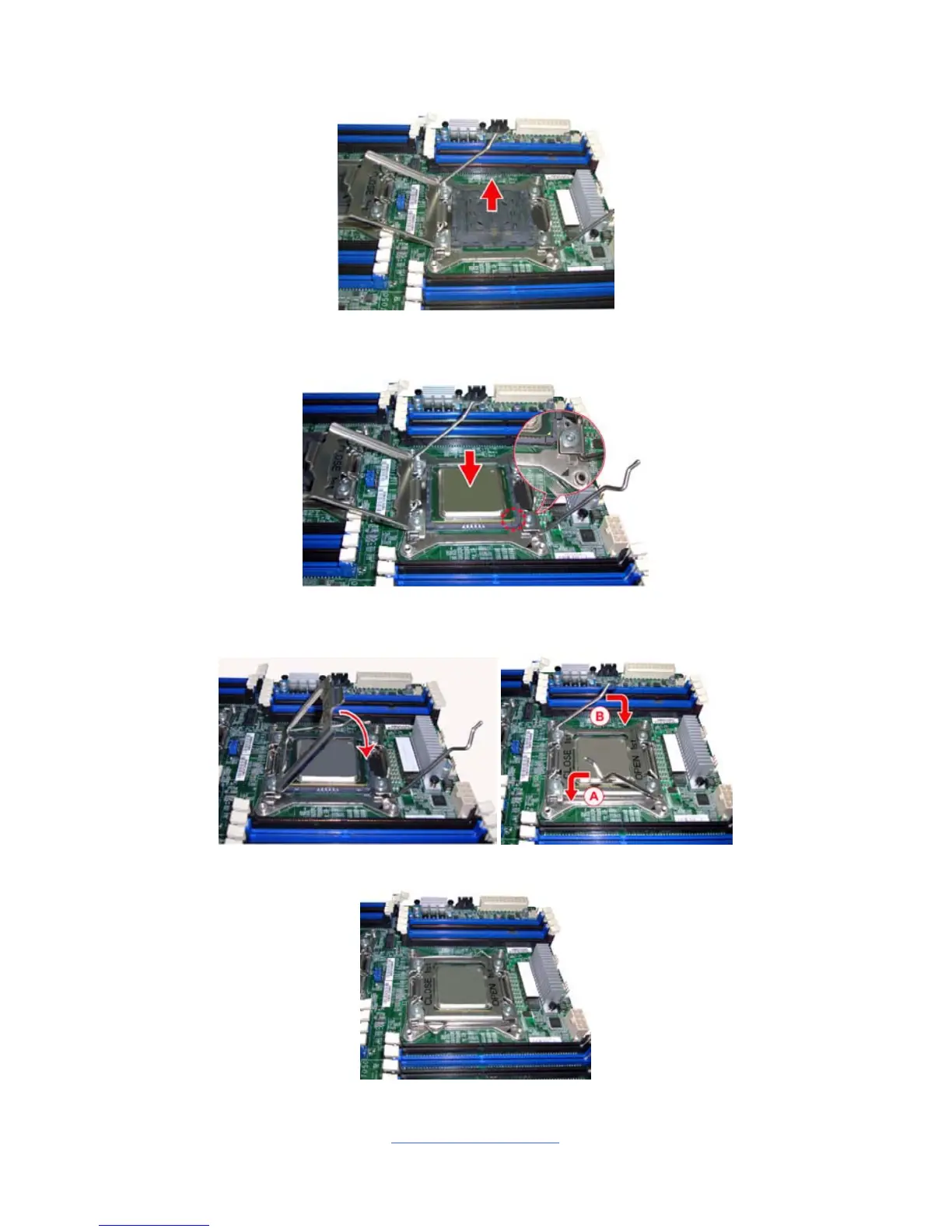

4. Take off the CPU protection cap.
5. Place the CPU in the CPU socket and make sure that the gold arrow is located
in the right direction with two notches properly aligned.
6. Close the socket cover and press the CPU socket lever down to lock the CPU
in place.
7. The CPU installation is now complete.
