76

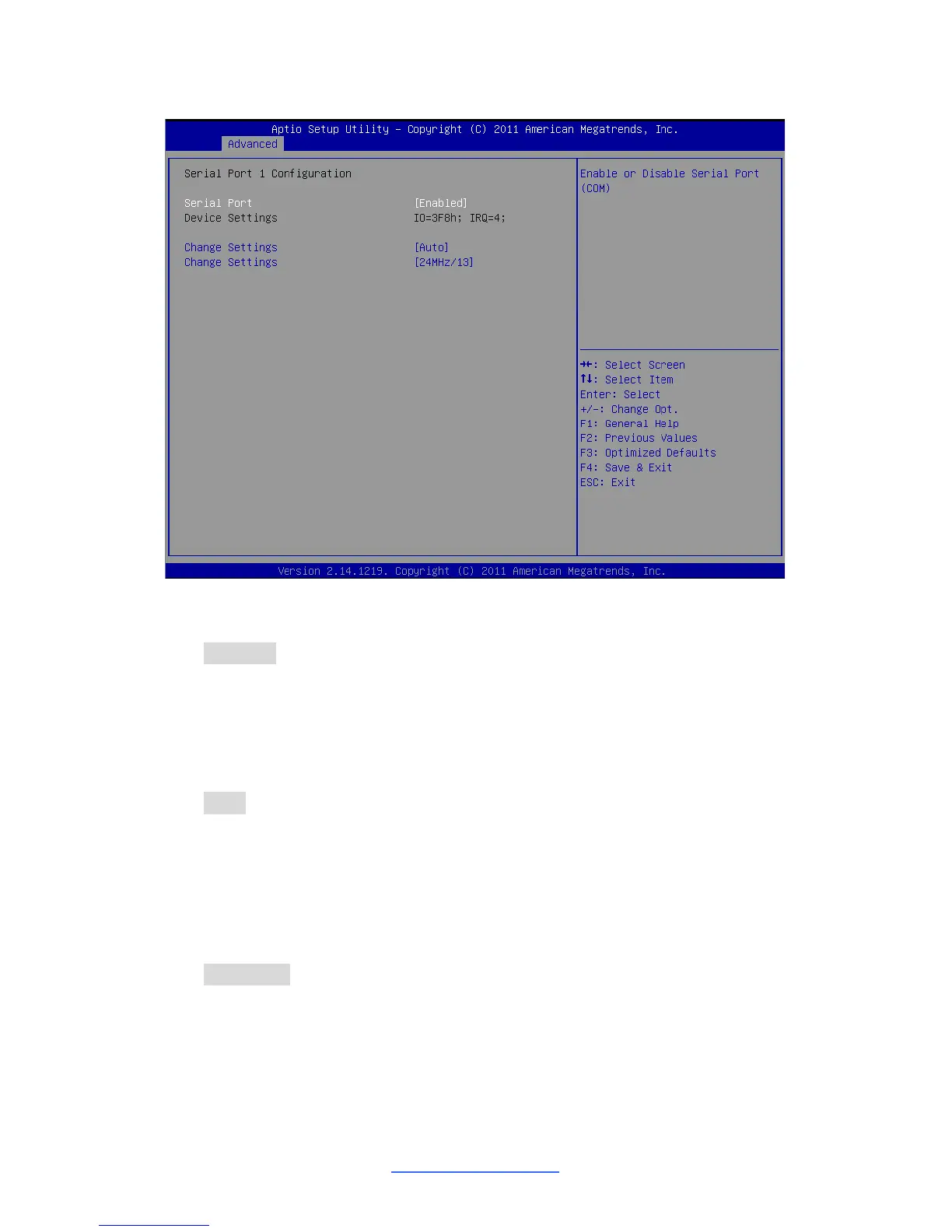

3.3.11.1 Serial Port 1/2 Configuration
Serial Port
Enable or disable Serial Port (COM).
Enabled / Disabled
Device Settings
Read only.
Change Settings
Select an optimal setting for Super IO Device.
Auto / IO=3F8h; IRQ=4;
/ IO=3F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
/ IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
/ IO=3E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
/ IO=2E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
Change Settings
SUART clock source.
24MHZ/13 / 24MHz
