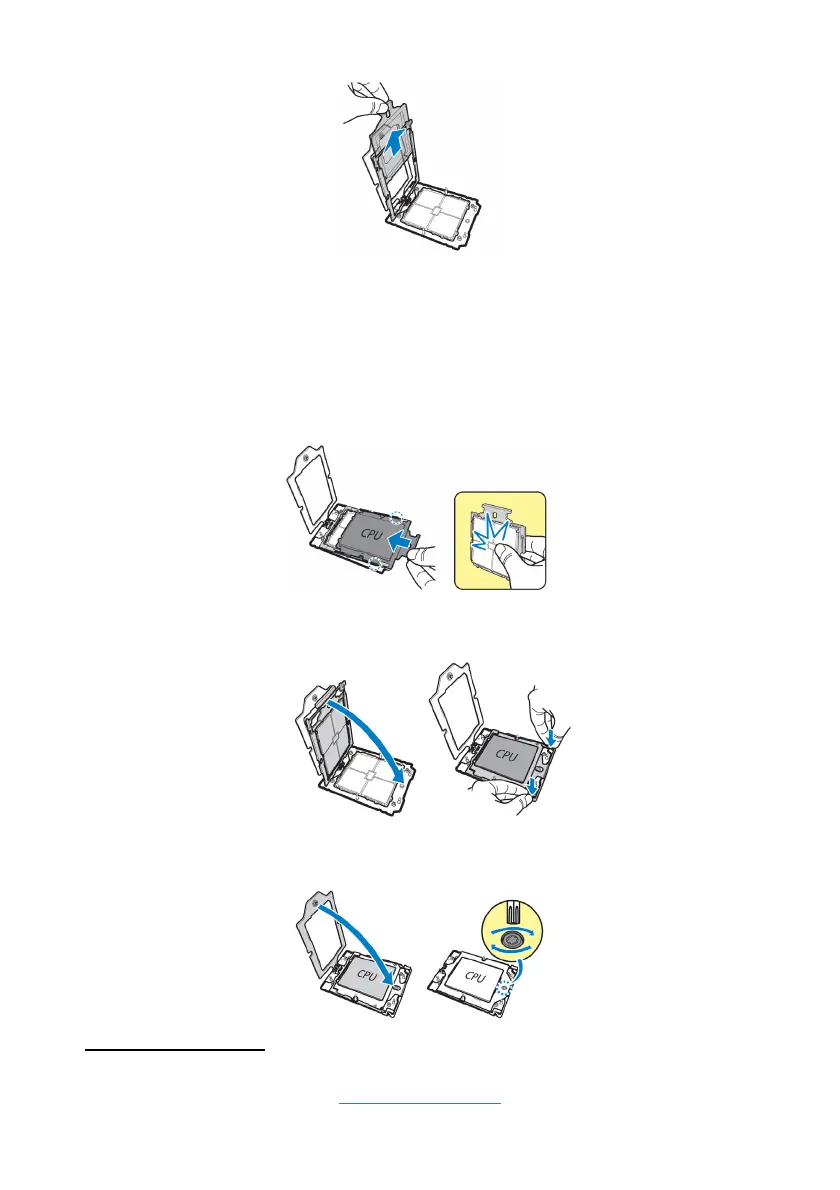

4. Align and install the carrier frame with package into the slot on the rail frame.
NOTE: During installation, observe the following:
make sure to push the carrier frame with package towards the end of the
rail frame until it clicks in place.
do not drop the carrier frame or touch the package pad to avoid component
damage.
5. Carefully close the rail frame with the installed package. Then push both
edges of the rail frame firmly until it locks in place.
6. Close the force frame. Then use a T20 Torx screwdriver to tighten the screw
to secure the force frame.
Heat sink Installation
