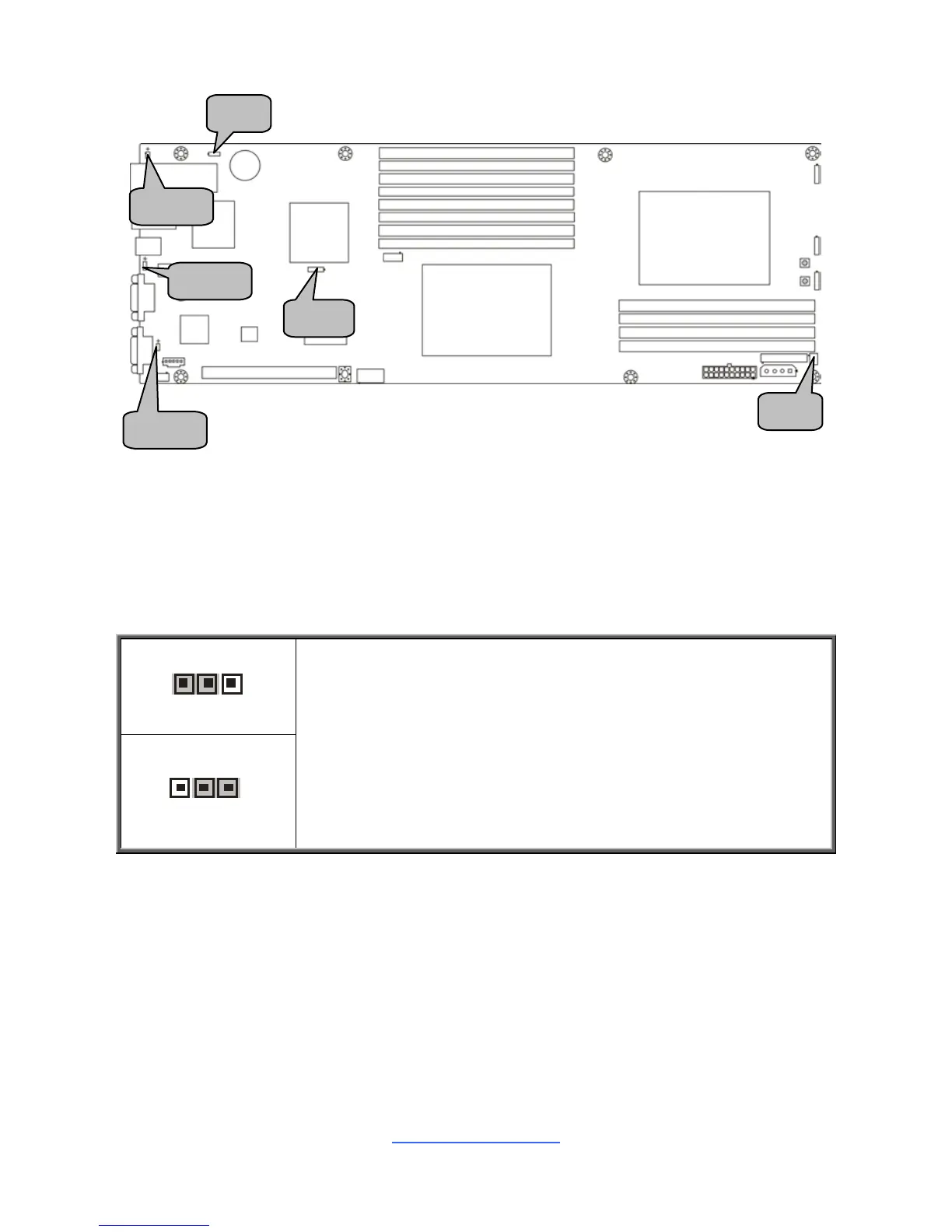

JP3: Clear CMOS Jumper
3 1
Normal (Default)
You can reset CMOS
by using this jumper if you have
forgotten your system/setup password or need to clear BIOS
setting.
1. Power off system and disconnect both power connectors
from the motherboard.
2. Use jumper cap to close Pin_2 and Pin_3 for seconds to
Clear CMOS.
3. Put jumper cap back to Pin_1 and Pin_2 (default setting).
4. Reconnect power & power on system.
1
3
Clear CMOS
J14
JP3
J4
