Tyco DV-3 User Manual

Electric
Actuation
The Electric Actuation Trim is required
for electric operation of the DV-3 Valve
by a detection system consisting of
electrical devices such as heat sensi-
tive thermostats, smoke detectors,
and/or electric manual pull stations.
Information on the various types of
separately ordered Solenoid Valves
that may be used with this trim pack-
age is given in Technical Data Sheet
TFP2180. Nominal installation dimen-
sions for the Electric Actuation Trim
are shown in Figure 10.
NOTE
Approval by Factory Mutual is contin-
gent on the use of an FM Approved
24VDC Solenoid Valve. FM only ap-
proves solenoid valves for use in non-
hazardous locations.
TheElectricActuationTrimisonlyto
be used in conjunction with an electric
deluge valve releasing panel (auto-
matic control unit) that is listed or ap-
proved (as appropriate) for fire protec-
tion system releasing service. In
addition, the deluge valve releasing
panelisonlytobeoperatedbylisted
or approved (as appropriate) fire de-
tectors.
Operation of an electrical device such
as a heat sensitive thermostat, smoke
detector, or electrical manual control
station signals the deluge valve re-
leasing panel to energize the Solenoid
Valve. In turn, the energized Solenoid
Valve opens resulting in a rapid pres-
sure drop in the Diaphragm Chamber
of the DV-3 Valve, and the force differ-
ential holding the Center Valve As-
sembly down in the set position is re-
duced to below the valve trip point.
NOTES
Consult with the Authority Having Ju-
risdiction regarding installation criteria
pertaining to electric actuation cir-
cuitry.
When a Solenoid Valve is energized to
operate the DV-3 Valve, the Solenoid
Valve must remain energized in order
for the DV-3 Valve to remain open.
Page 12 of 20
TFP1350

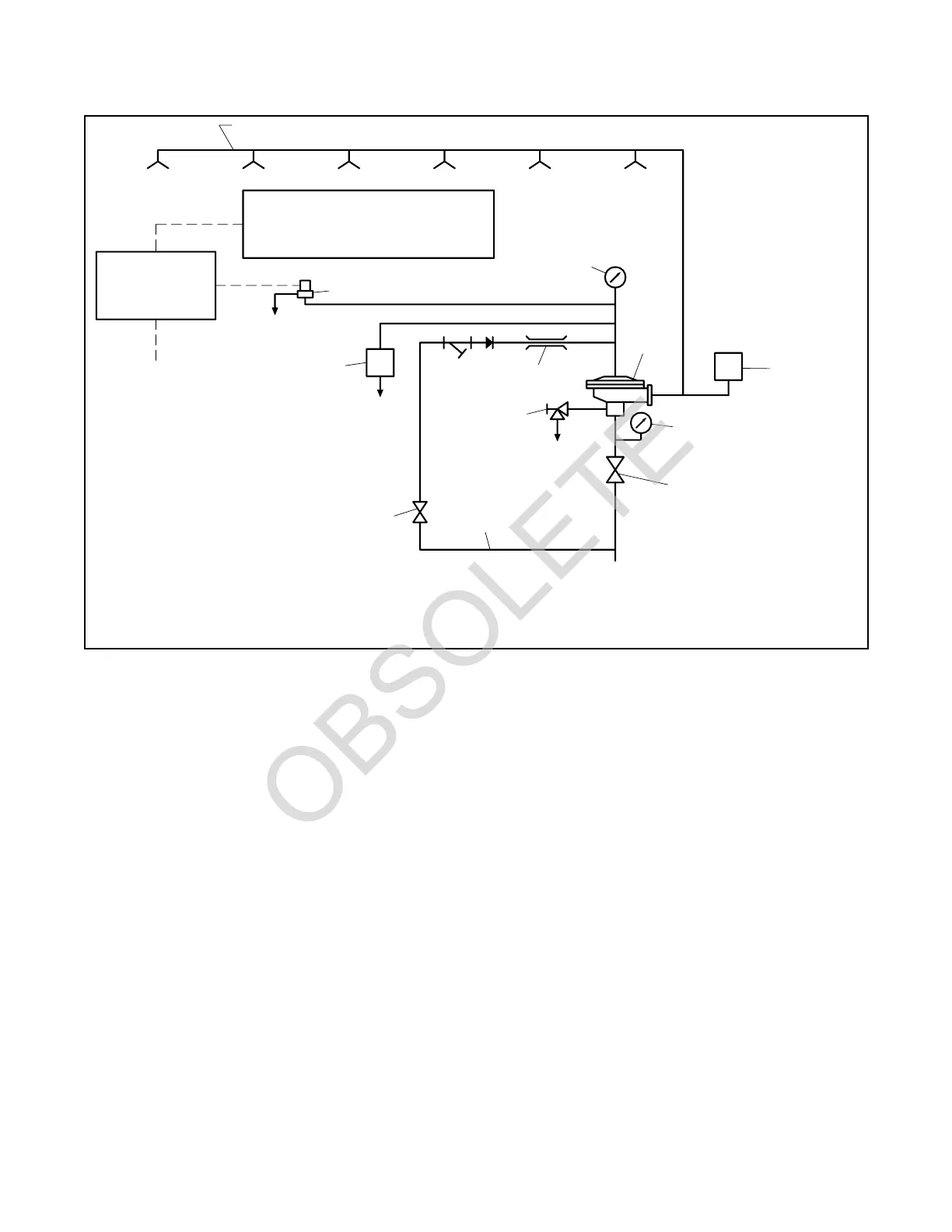

FIGURE 8
SYSTEM SCHEMATIC — ELECTRIC ACTUATION
CONNECTION
SUPPLY
SYSTEM PIPIN
G
WITH
O
PEN N
O
ZZLES
O
R SPRINKLERS - N
O
RMALLY DRY
RESTRICTION
DRAIN VALVE
(NORMALLY
PRESSURE
S
U
PPLY
WATER
DRAIN
ALARM SWITCH
WATER SUPPLY
CONTROL VALVE
PRESSURE
OPEN)
GAUGE
(NORMALLY
MAIN
GAUGE
PRESSURE
CHAMBER
DIAPHRAGM
WATERFLOW
DRAIN
STATION
MANUAL
CONTROL
LOCAL
CLOSED)
MAIN
DIAPHRAGM
CHAMBER
DIAPHRAGM
(NORMALLY OPEN)
CONTROL VALVE
CHAMBER SUPPLY
VALVE
DELUGE
POWER SUPPLY
120 VOLTS AC)
(TYPICALLY
RELEASING PANEL
DELUGE VALVE
CONTROL UNIT)
(AUTOMATIC
(TYPICALLY 24 VOLTS DC)
SOLENOID VALVE
(TYPICALLY 24 VOLTS DC)
MANUAL PULL STATIONS, ETC.
ELECTRIC DETECTION SYSTEM
HEAT DETECTORS, SMOKE DETECTORS,
DRAIN
OBSOLETE
