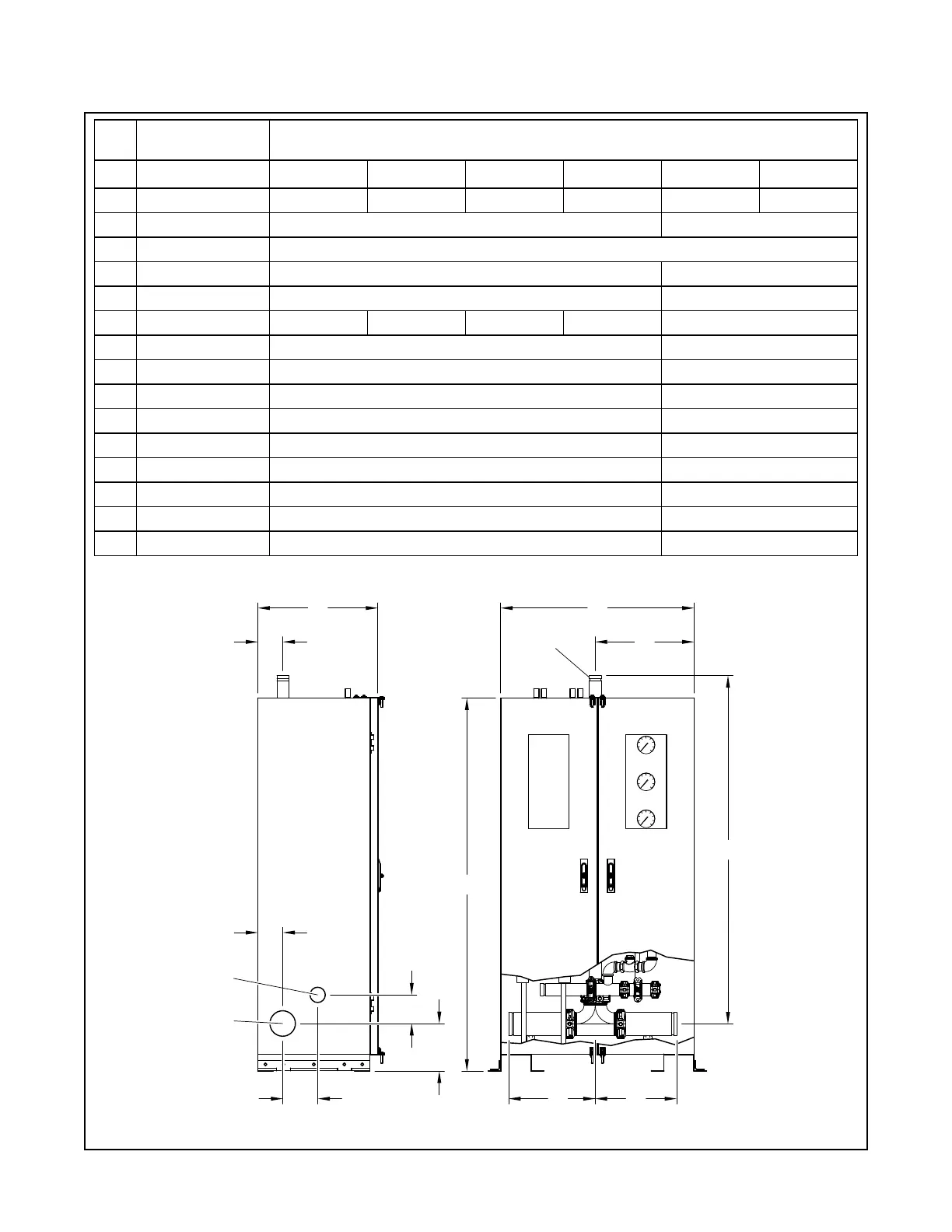

FIGURE 1
INSTALLATION DIMENSIONS AND REFERENCE POINTS
ED
N
P
A M
C
B
J
K
G
L
H
R
F
Nominal Riser Size
Nominal Dimension
in. (mm)
1
DIM Description 1 1/2 (DN40) 2 (DN50) 3 (DN80) 4 (DN100) 6 (DN150) 8 (DN200)
A System Discharge 1 1/2 (DN40) 2 (DN50) 3 (DN80) 4 (DN100) 6 (DN150) 8 (DN200)
B Supply Header 4 (DN100) 8 (DN200)
C Drain Header 2 (DN50)
D Header Left 17.0 (432,0) 24.75 (628,7)
E Header Right 16.0 (406,0) 26.75 (679,5)
F Riser Height 68. 26 (1733,8) 68.4 (1737,36) 68.44 (1738,4) 67.34 (1738,4) 67.9 (1724,7)
G Connection Offset 9.42 (239,3) 9. 3 4 ( 2 37, 2)
H Connection Offset 5.0 (127, 0 ) 8.6 (218,4)
J Connection Offset 4.88 (124,0) 8.5 (215,9)
K Connection Offset 6.88 (174,8) 9.5 (241,3)
L Connection Offset 5.63 (143,0) 6.57 (166,9)
M Connection Offset 19.5 (495,3) 25.15 (638,8)
N Cabinet Height 73.25 (1860,6) 73.5 (1866,9)
P Cabinet Width 38.15 (969,0) 48.15 (1223,0)
R Cabinet Depth 23.73 (602,7) 29.64 (752,9)
Notes
1. All pipe connections are grooved
2. Supply and drain header connections made internal to cabinet
TFP1301
