-6-

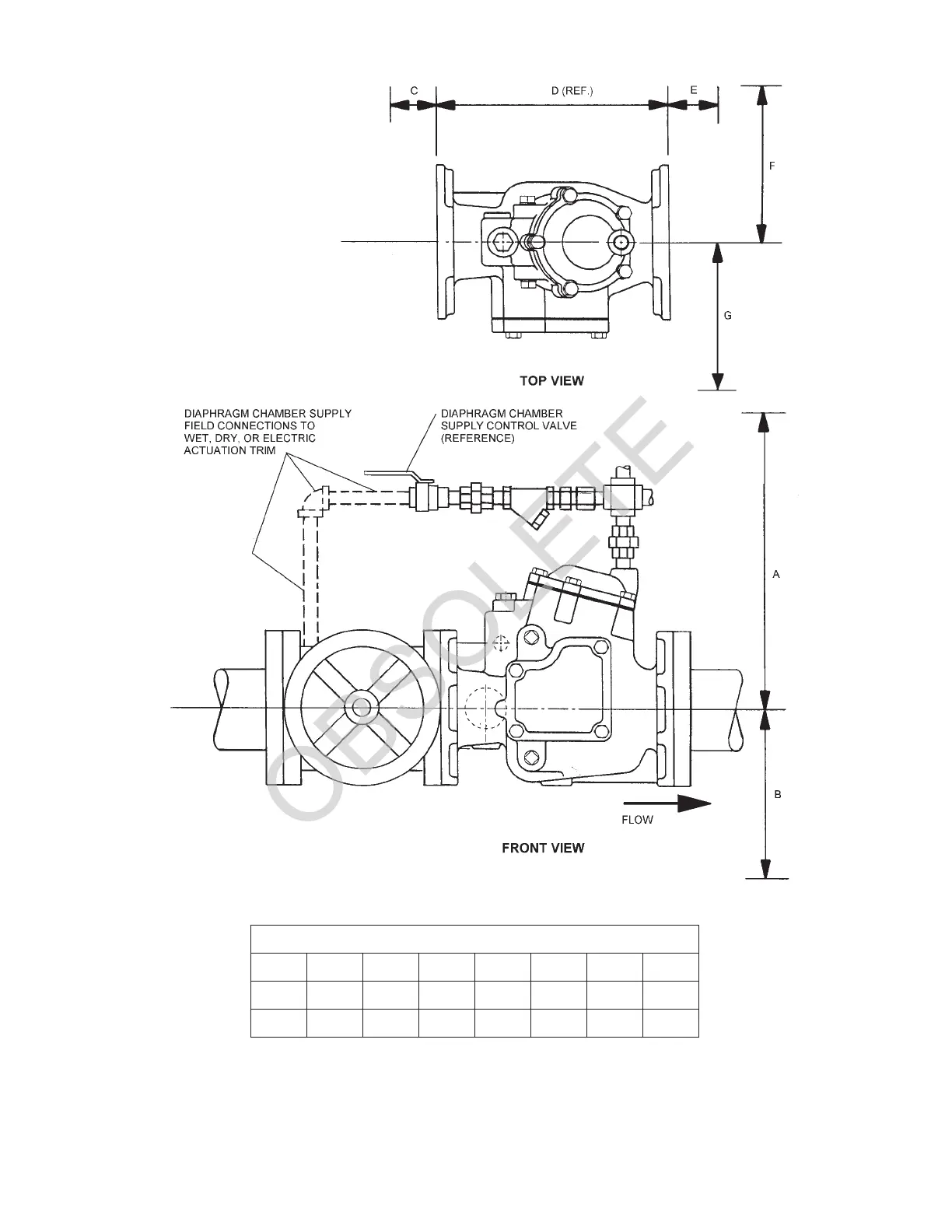

FIGURE C
MINIMUM CLEARANCE DIMENSIONS FOR
WET PILOT, DRY PILOT, OR ELECTRIC ACTUATION TRIM
Minimum Clearance Dimensions in Inches and (mm)
VALVE
SIZE
4
(100)
6
(150)
A
17-1/2
(445)
18-1/2
(470)
B
13
(325)
14
(350)
C
9
(225)
10-1/2
(270)
D
13.25
(336,6)
14.25
(362,0)
E
10
(250)
36
(900)
F
12
(300)
12
(300)
G
36
(900)
10
(250)
4 INCH (100 mm)
VALVE ILLUSTRATED
OBSOLETE
