TYM BT400 - SUBFRAME-T400;T451 ASSEMBLY

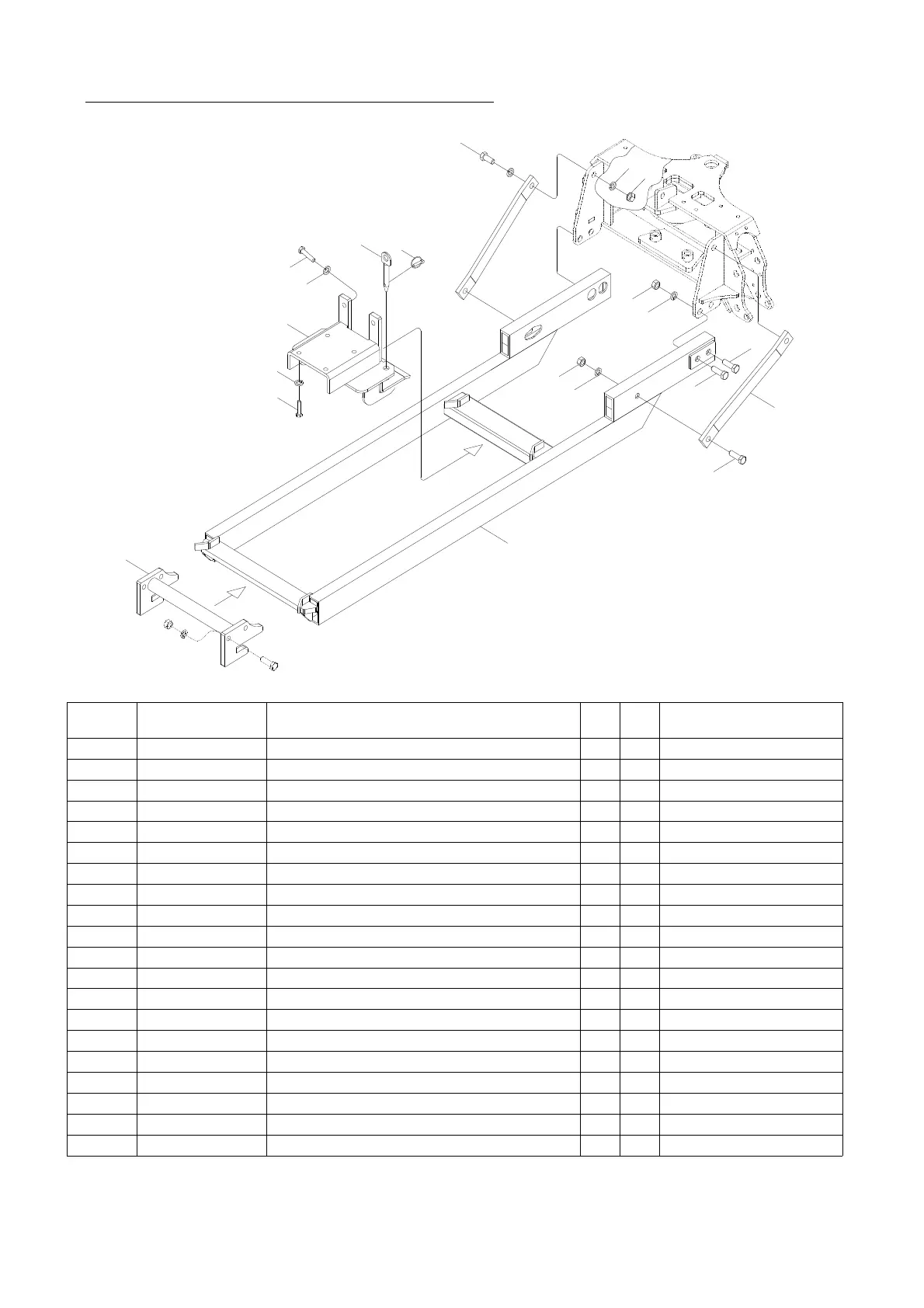

SUBFRAME-T400/T451 ASSEMBLY
1
13
8
3
9
14
5
6
10
15
18
2
10
18
15
4
19
16
12
11
- 30 -
REF.NO
REF.NO
REF.NO
REF.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C REMARK
REMARKREMARK
REMARK
0 LYS05-20000 SUBFRAME-T400/T451 ASSEMBLY, NO. 1~19 1
1 LYS05-23000 CROSS BAR W.A 1
2 LYS05-30000 RAIL W.A 1
3 LYS05-22000 BRACKET_MID W.A 1
4 DK05-0101-02 BRACE 2
5 DK04-0100 PIN 2
6 1008-1001 RING PIN 2
8 10191-M1406-40 HEX. BOLT-HT, M14-2.0P 40L 4
9 10191-M1606-40 HEX. BOLT-HT, M16-2.0P 40L 2
10 10191-M2007-50 HEX. BOLT-HT, M20-2.5P 50L 4
11 10191-M2207-80 HEX. BOLT-HT, M22-2.5P 80L 2
12 10191-M2207-90 HEX. BOLT-HT, M22-2.5P 90L 2
13 10316-M1400 WASHER-SPRING, M14 4
14 10316-M1600 WASHER-SPRING, M16 2
15 10316-M2000 WASHER-SPRING, M20 4
16 10316-M2200 WASHER-SPRING, M22 4
18 10261-M2007 HEX. NUT-HT, M20-2.5P 4
19 10261-M2207 HEX. NUT-HT, M22-2.5P 4
