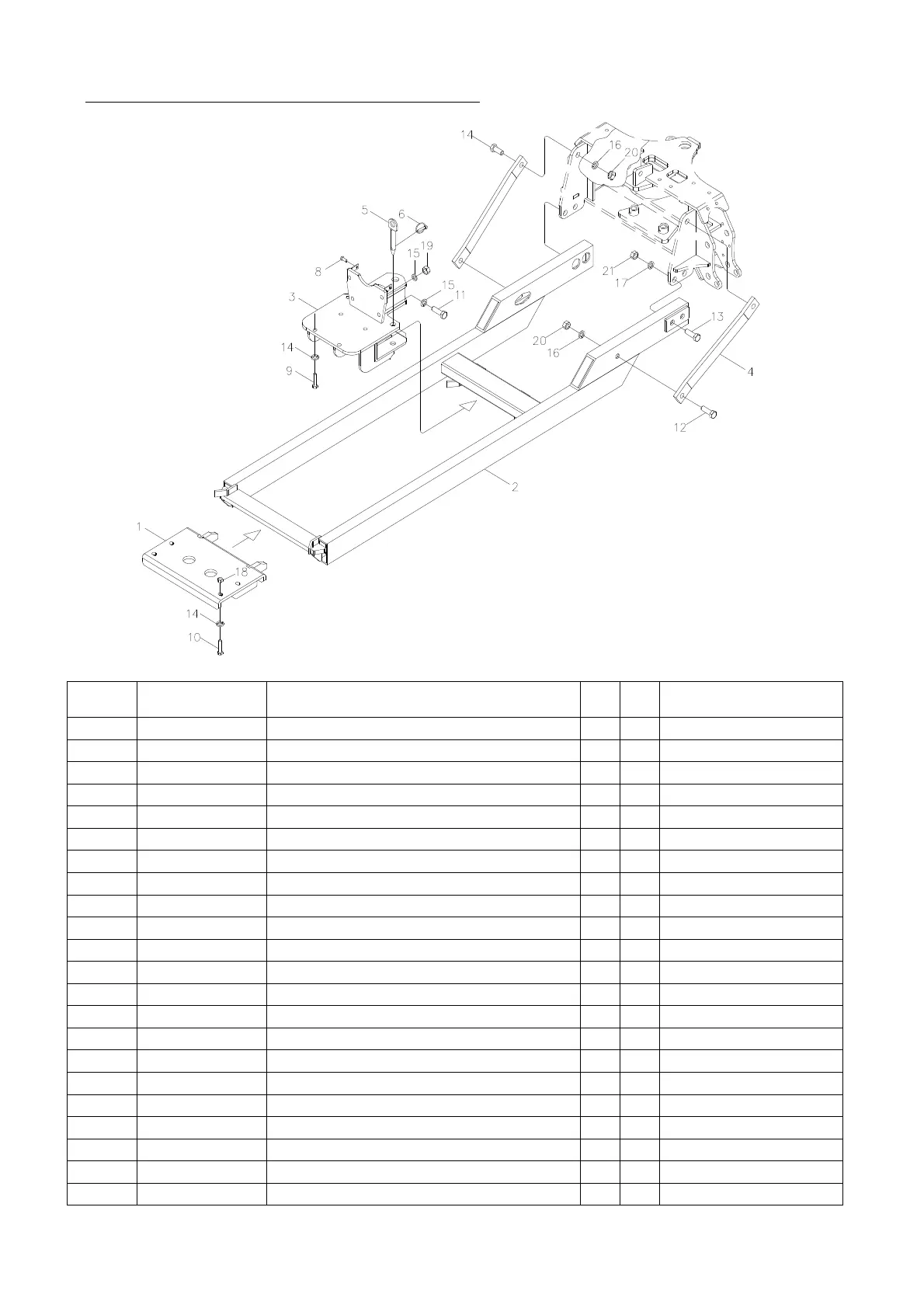

TYM BT400 - SUBFRAME-T433;503 ASSEMBLY

SUBFRAME-T433/503 ASSEMBLY
- 31 -
REF.NO
REF.NO
REF.NO
REF.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C REMARK
REMARKREMARK
REMARK
0 LYS13-20000 SUBFRAME-T433/483 ASSEMBLY, NO. 1~21 1
1 LYS13-21000 CROSS BAR W.A 1
2 LYS13-22000 RAIL W.A 1
3 LYS13-23000 BRACKET_MID W.A 1
4 DK05-0101-02 BRACE 2
5 LYS13-24000 PIN ASS'Y 2
6 1008-1001 RING PIN, Φ10 2
8 10191-M0803-15 HEX. BOLT-HT, M8-1.25P 15L 2
9 10191-M1406-40 HEX. BOLT-HT, M14-2.0P 40L 4
10 10191-M1406-45 HEX. BOLT-HT, M14-2.0P 45L 4
11 10191-M1606-35 HEX. BOLT-HT, M16-2.0P 35L 2
12 10191-M2007-70 HEX. BOLT-HT, M20-2.5P 70L 4
13 10191-M2207-70 HEX. BOLT-HT, M22-2.5P 70L 4
14 10316-M1400 WASHER-SPRING, M14 8
15 10316-M1600 WASHER-SPRING, M16 4
16 10316-M2000 WASHER-SPRING, M20 4
17 10316-M2200 WASHER-SPRING, M22 4
18 10261-M1406 HEX. NUT-HT, M14-2.0P 4
19 10261-M1606 HEX. NUT-HT, M16-2.0P 2
20 10261-M2007 HEX. NUT-HT, M20-2.5P 4
21 10261-M2207 HEX. NUT-HT, M22-2.5P 4
- 31 -
