TYM BT400 - DIPPERSTICK CYLINDER ASSEMBLY

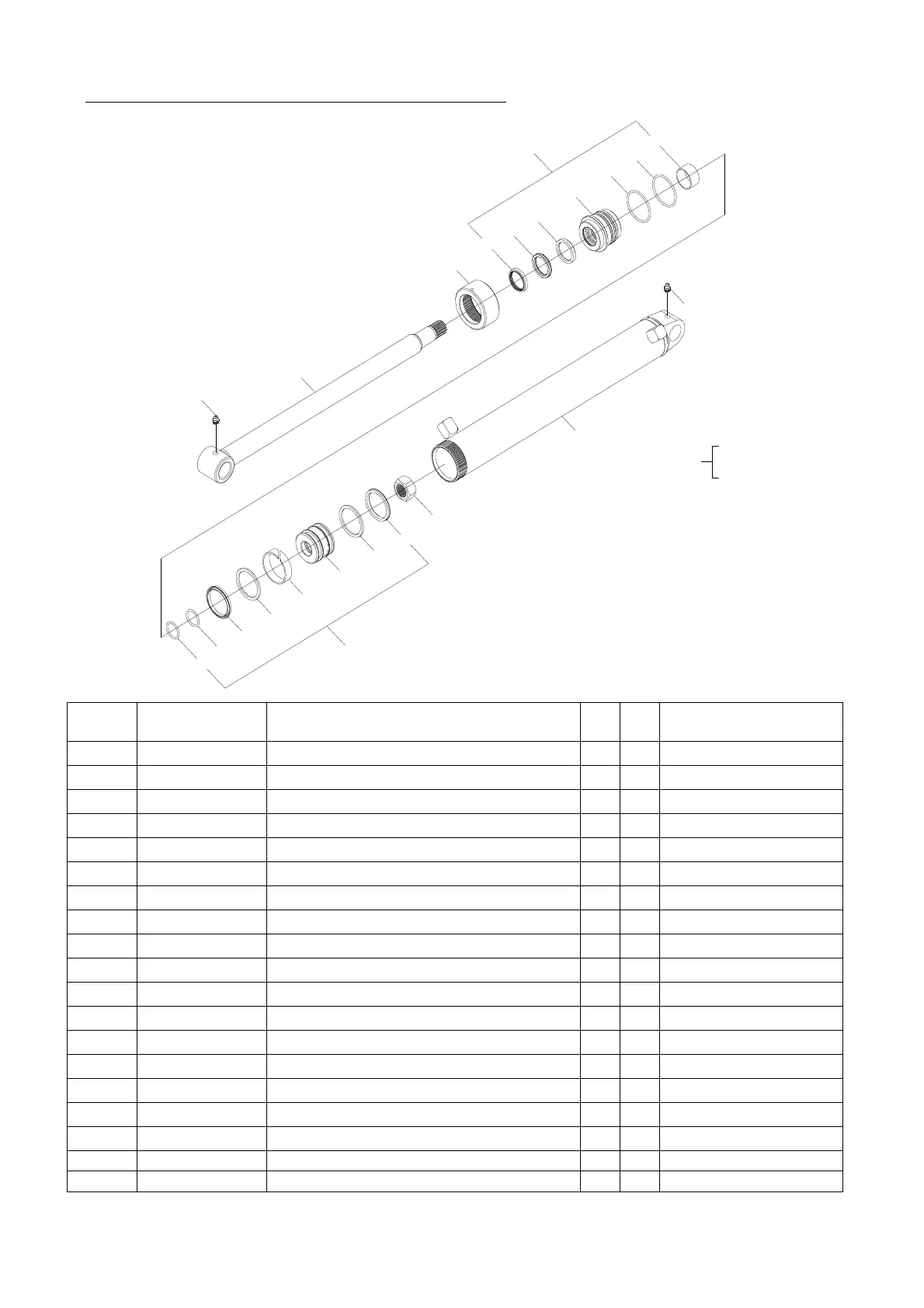

DIPPERSTICK CYLINDER ASSEMBLY
18
19
17
~
2
1
11
5
6
7
4
8
8
9
16
17
2
17
3
15
12
13
10
14
13
12
11
- 45 -
REF.NO
REF.NO
REF.NO
REF.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C REMARK
REMARKREMARK
REMARK
1 227101 DIPERSTICK CYLINDER ASSEMBLY 1
2 227101-R ROD ASS'Y 1
3 OC70-8037 CAP OUTER, Φ70x80x37L 1
4 IC70-4055 COVER INNER, Φ70x40x55L 1
5 DSSD-R040 DUST, SDR 40x48x5/6.5 1
6 UPSK-Y040 PACKING U , SKY 40x50x6 1
7 UPIS-I040 PACKING U, ISI 40x50x6 1
8 OR1B-G065 O-RING, 1BG55 2
9 DU04-0020 BUSHING DU, 40x44x20 1
10 PI70-2746 PISTION, Φ70x27x46L 1
11 OR1B-G027 O-RING, 1BG27 2
12 UPOS-I070 PACKING U, OSI 70x60x6 2
13 TRBR-0070 BACKUP RING, 70x60x3 2
14 WERY-T070 WEARING, RYT 70x65x15 1
15 NTP0-U100-C NUT, 1-14UN 1
16 227101-T TUBE ASS'Y 1
17 GNIT-018I GREASE NIPPLE, PT 1/8" 2
18 IA70-4055 SEAL KIT HEAD, NO.4~9 1
19 PA70-2746 SEAL KIT PISTON, NO.10~14 1
19
11
14
13
12
11
