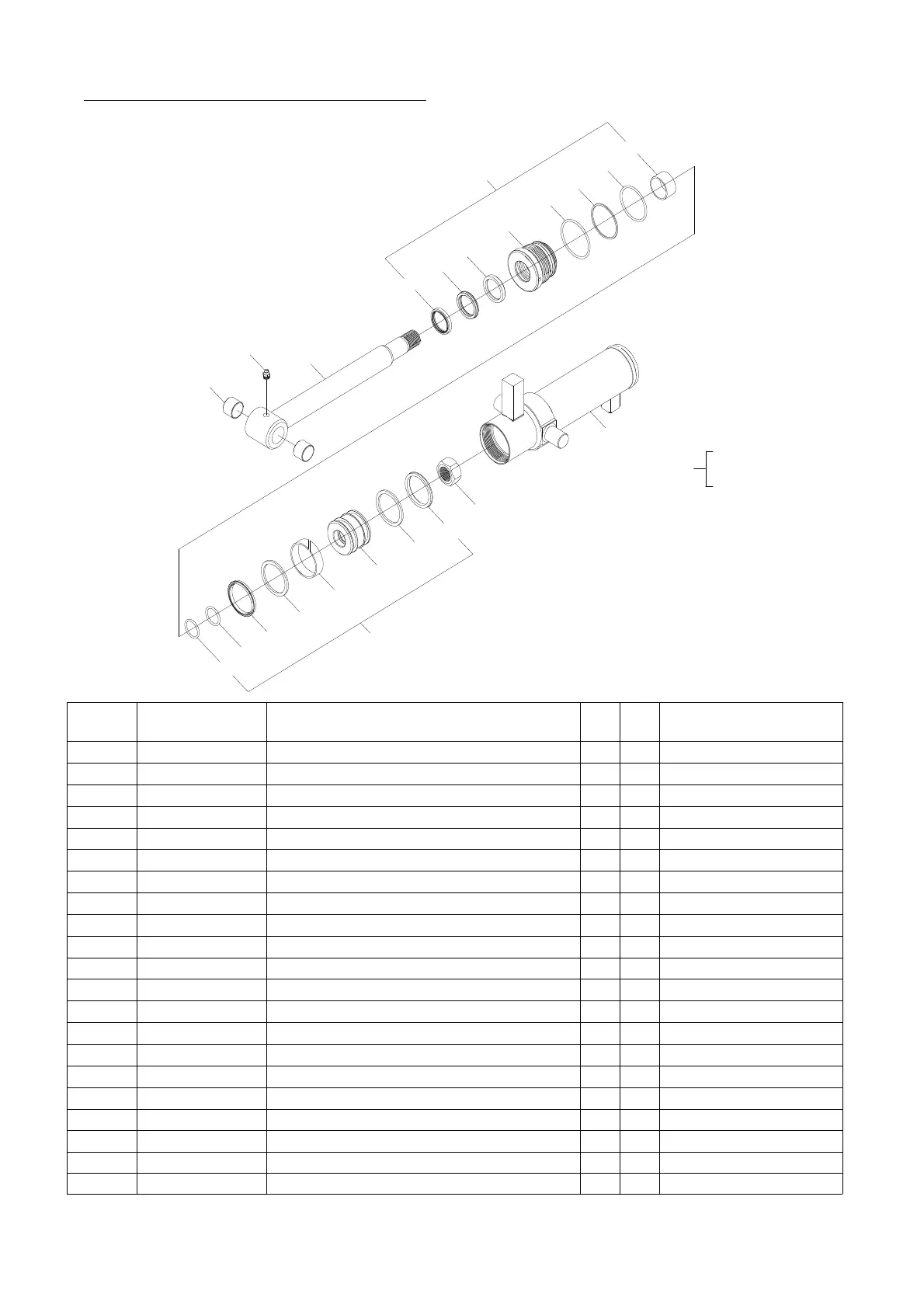

TYM BT400 - SWING CYLINDER ASSEMBLY

SWING CYLINDER ASSEMBLY
20
21
1
2
~
19
2
18
5
4
6
3
7
8
9
10
12
12
13
14
15
11
14
16
13
17
19
- 47 -
REF.NO
REF.NO
REF.NO
REF.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C REMARK
REMARKREMARK
REMARK
1 225806 SWING CYLINDER ASSEMBLY 1
2 225806-R ROD ASS'Y 1
3 BC60-3555 HEAD, Φ60x35x55L 1
4 DSSD-R035 DUST, SDR 35x43x5/6.5 1
5 UPSK-Y035 PACKING U, SKY 35x45x6 1
6 UPIS-I035 PACKING U, ISI 35x45x6 1
7 TRBR-G055 BACKUP RING, G55 1
8 OR00-G060 O-RING, G60 1
9 OR1B-G055 O-RING, 1BG55 1
10 DU03-5020 BUSHING DU, 35x39x20 1
11 PI60-2746 PISTION, Φ60x27x46L 1
12 OR1B-G027 O-RING, 1BG27 2
13 UPOS-I060 PACKING U, OSI 60x50x6 2
14 TRBR-0060 BACKUP RING, 60x50x3 2
15 WEWR-0060 WEARING, WR 60x55x15 1
16 NTP0-U100-C NUT, 1-14UN 1
17 225806-T TUBE ASS'Y 1
18 GNIT-018I GREASE NIPPLE, PT 1/8" 1
19 DU02-5020 BUSHING DU, 25x28x20 2
20 BA60-3555 SEAL KIT HEAD, NO.3~10 1
21 PA60-2746-S SEAL KIT PISTON, NO.11~15 1
21
12
12
13
14
15
