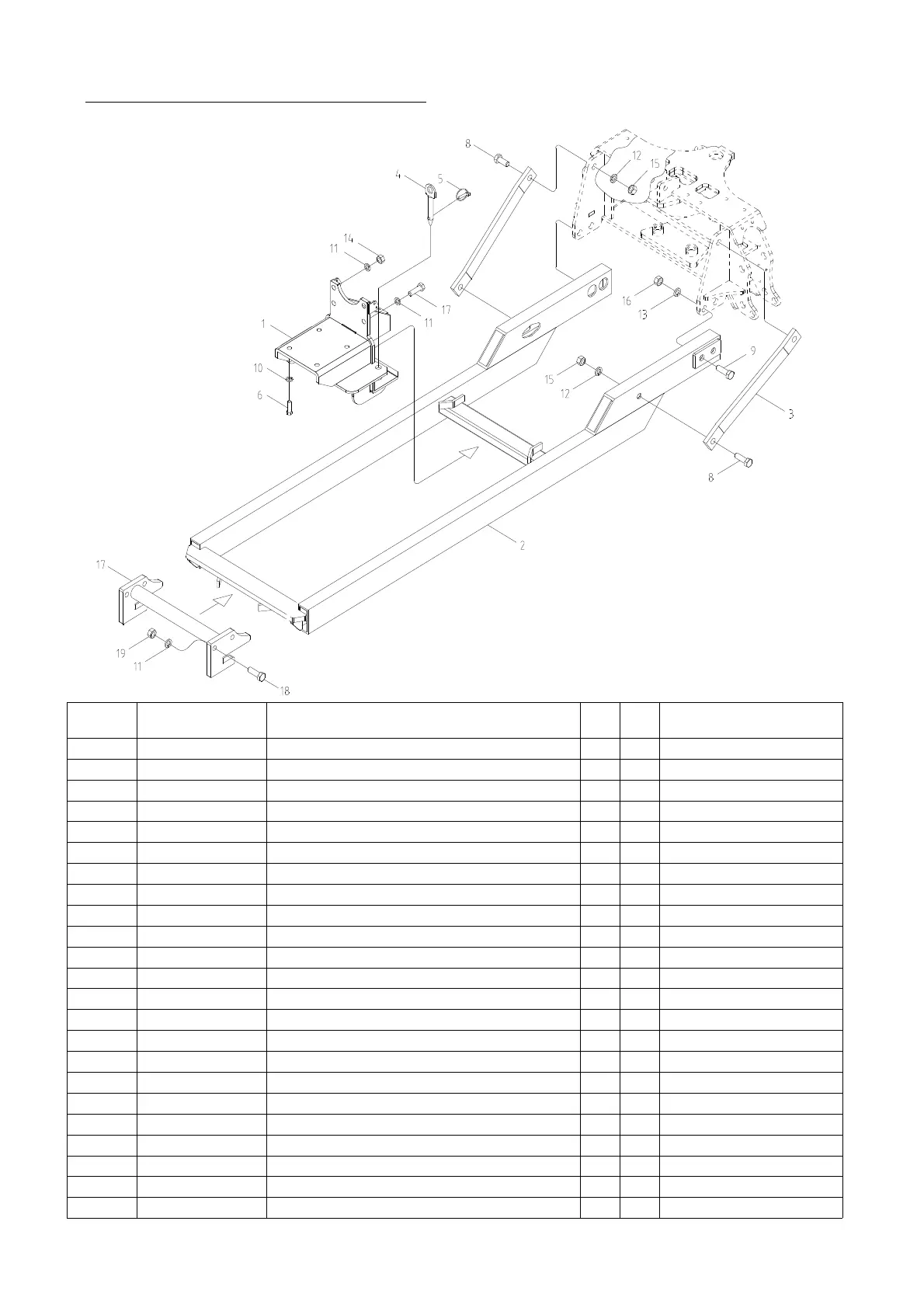

SUBFRAME-T603 ASSEMBLY
UPDATED : 09. 20. 2007
- 32 -
REF.NO
REF.NO
REF.NO
REF.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C REMARK
REMARKREMARK
REMARK
0 LYS12-20000-01 SUBFRAME-T603 ASSEMBLY, NO. 1~16 1
1 LYS12-22000-01 BRACKET_MID W.A 1
2 LYS12-30000 RAIL W.A 1
3 DK05-0101-02 BRACE 2
4 DK04-0100 PIN 2
5 1008-1001 RING PIN 2
6 10191-M1406-35 HEX. BOLT-HT, M14-2.0P 35L 4
7 10191-M1606-35 HEX. BOLT-HT, M16-2.0P 35L 2
8 10191-M2007-70 HEX. BOLT-HT, M20-2.5P 70L 4
9 10191-M2207-70 HEX. BOLT-HT, M22-2.5P 70L 4
10 10316-M1400 WASHER-SPRING, M14 4
11 10316-M1600 WASHER-SPRING, M16 8
12 10316-M2000 WASHER-SPRING, M20 4
13 10316-M2200
WASHER-SPRING, M22 4
14 10261-M1606 HEX. NUT-HT, M16-2.0P 2
15 10261-M2007 HEX. NUT-HT, M20-2.5P 4
16 10261-M2207 HEX. NUT-HT, M22-2.5P 4
17 LYS05-23000-02 CROSS BAR W.A 1
18 10191-M1606-50 HEX. BOLT-HT, M16-2.0P 50L 4
19 10261-M1606 HEX. NUT-HT, M16-2.0P 4
- 32 -
