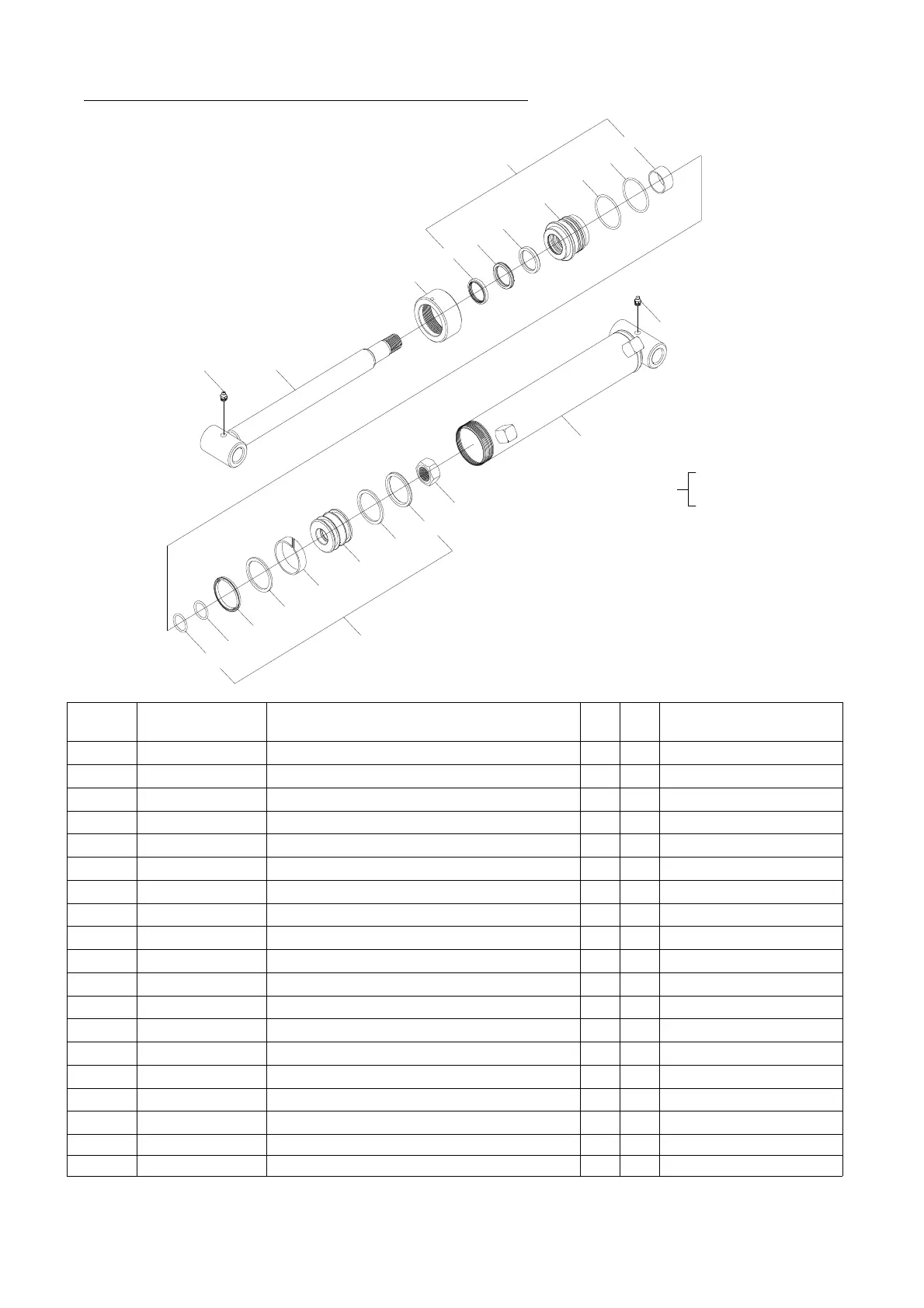

TYM BT400 - STABILIZER CYLINDER ASSEMBLY-LH

STABILIZER CYLINDER ASSEMBLY-LH
18
19
1
2
~
17
16
17
2
3
7
6
5
9
8
8
4
12
11
11
14
13
13
10
12
15
17
- 48 -
REF.NO
REF.NO
REF.NO
REF.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C REMARK
REMARKREMARK
REMARK
1 224304 STABILIZER CYLINDER ASSEMBLY -LH 1
2 224304-R ROD ASS'Y 1
3 OC60-7037 CAP OUTER, Φ60x70x37L 1
4 IC60-3555 COVER INNER, Φ60x35x55L 1
5 DSSD-R035 DUST, SDR 35x43x5/6.5 1
6 UPSK-Y035 PACKING U, SKY 35x45x6 1
7 UPIS-I035 PACKING U, ISI 35x45x6 1
8 OR1B-G055 O-RING, 1BG55 2
9 DU03-5020 BUSHING DU, 35x39x20 1
10 PI60-2746 PISTION, Φ60x27x46L 1
11 OR1B-G027 O-RING, 1BG27 2
12 UPOS-I060 PACKING U, OSI 60x50x6 2
13 TRBR-0060 BACKUP RING, 60x50x3 2
14 WEWR-0060 WEARING, WR 60x55x15 1
15 NTP0-U100-C NUT, 1-14UN 1
16 224304-T TUBE ASS'Y 1
17 GNIT-018I GREASE NIPPLE, PT 1/8" 2
18 IA60-3555 SEAL KIT HEAD, NO.4~9 1
19 PA60-2746 SEAL KIT PISTON, NO.10~14 1
19
12
11
11
14
13
