E
MAINTENANCE
26
This supplies power to the cabin control
panel and cabin electric devices.
If any cabin electric device is not
operating properly, check this part. If
defect is found, replace it with a new
one.

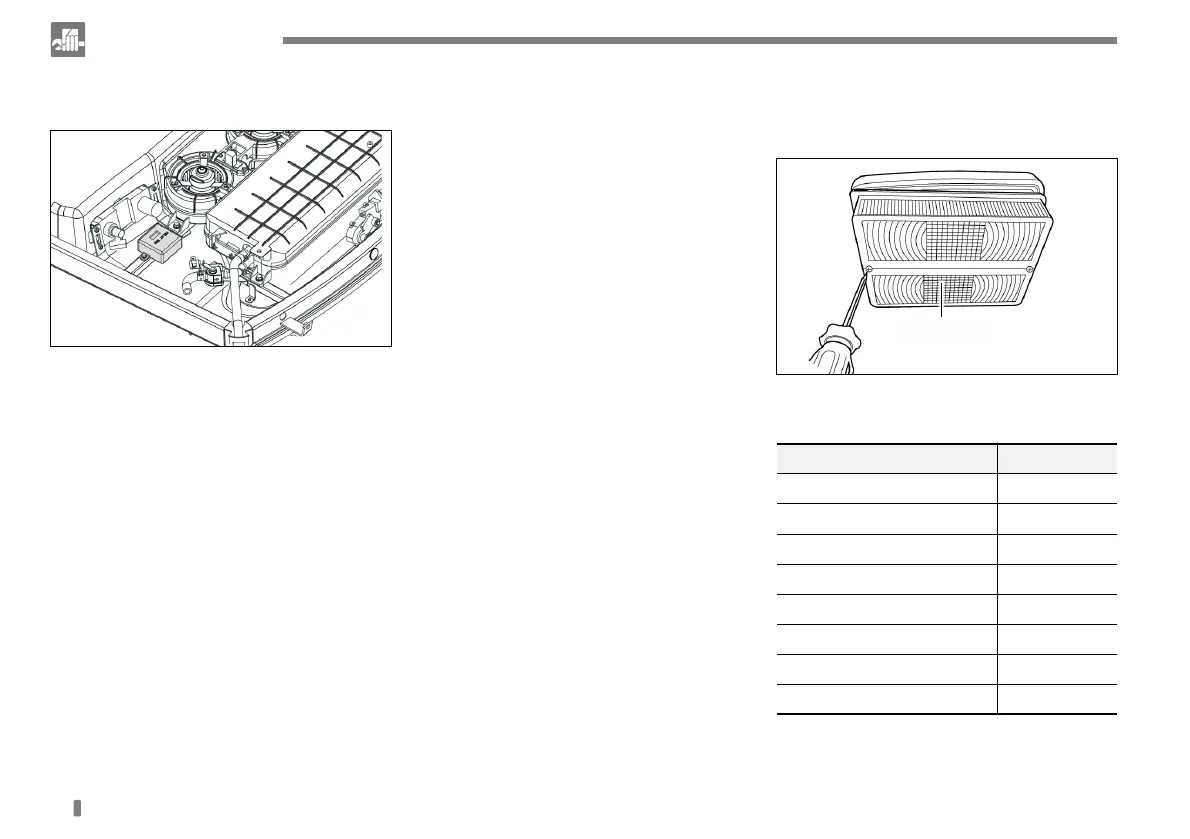

(The cabin relay box is installed in the
roof.)
▶ CABIN RELAY BOX
If a lamp does not come on by operating
the corresponding switch:
1. Check the corresponding fuse.
2. If the fuse is intact, remove the bulb
socket from the lamp.
3. Remove the bulb from the socket
and check for blown filament.
4. If the filament is blown, replace the
bulb with a new bulb with the same
capacity.
1. Remove the lamp lens using a flat-
bladed screwdriver.
▶ REPLACING LAMP BULB
▶ REPLACING TURN SIGNAL
LAMP/POSITION LAMP
BULB SPEC.
HAND LAMP 12V 55W/55W
TURN SIGNAL LAMP (F) 12V 21W
TURN SIGNAL LAMP (R) 12V 21W
POSITION LAMP (F) 12V 8W
STOP/POSITION LAMP (R) 12V 21W/5W
BACKUP LAMP 12V 21W
INTERIOR LAMP 12V 10W
WORK LAMP H3 12V 35W
LAMP LENS
