E
MAINTENANCE
E
35

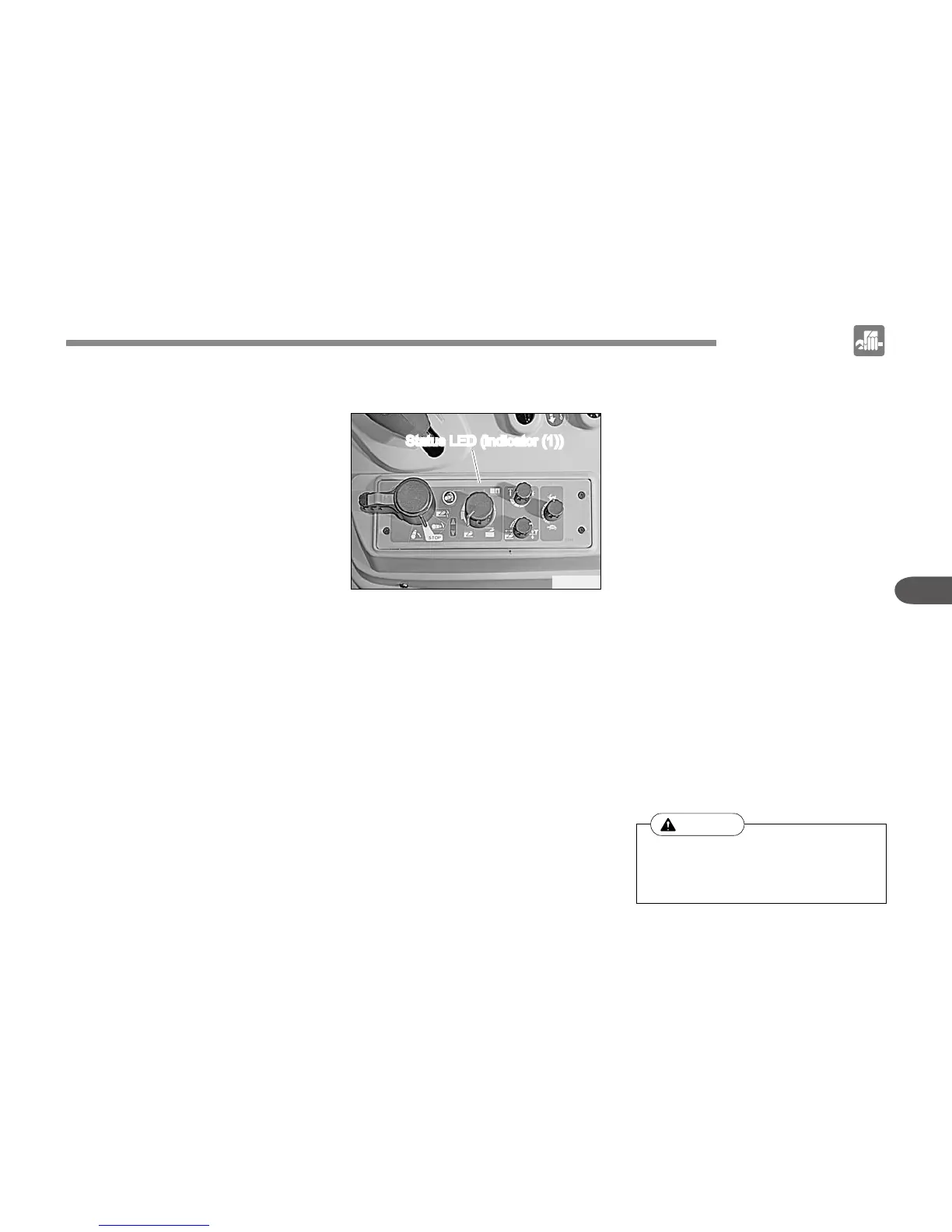

If there is an error in the system, the status LED indicates this error by blinking in the specified setting.
● : ON ○ : OFF
▶ LED BLINKING BY ERROR CODE
FAULTS
CODE
1 PHASE
2 PHASE
3 PHASE
4 PHASE
DESCRIPTION
2 SEC. 1
st
DIGIT 1 SEC. 2
nd
DIGIT
11 ○ ● ○ ●
Indicates Circuit Fault of the Lift Arm solenoid for Raising
12 ○ ● ○ ●●
Indicates Circuit Fault of the Lift Arm solenoid for Lowering
13 ○ ● ○ ●●●
Indicates Short Fault of the Lift Solenoid for Raising/Lowering
14 ○ ● ○ ●●●●
Indicates Connecting Fault of Exterior (Raise and Lower) control button for Raising
15 ○ ● ○ ●●●●●
Indicates Connecting Fault of Exterior (Raise and Lower) control button for Lowering
16 ○ ● ○ ●●●●●●
Indicates power Supply Fault of the Lift Arm controller (In short Circuit to +10V)
17 ○ ● ○ ●●●●●●●
Indicates power Supply Fault of the Lift Arm controller (In short Circuit to +10V)
22 ○ ●● ○ ●●
Indicates Position Sensor Fault
23 ○ ●● ○ ●●●
Indicates Setpoint knob fault
24 ○ ●● ○ ●●●●
Indicates Upper limit knob fault
28 ○ ●● ○ ●●●●●●●●
Indicates Control Lever(Lift / stop / lowering) Switch fault
31 ○ ●●● ○ ●
Indicates Left Draft Sensor Fault
32 ○ ●●● ○ ●●
Indicates Left Draft Sensor Fault
33 ○ ●●● ○ ●●●
Indicates Low battery voltage fault (below+8v)
34 ○ ●●● ○ ●●●●
Indicates Lowering speed control knob fault
36 ○ ●●● ○ ●●●●●
Indicates Position / Draft sensitivity control knob fault
44 ○ ●●●● ○ ●●●●
Indicates Position Sensor needs calibration
