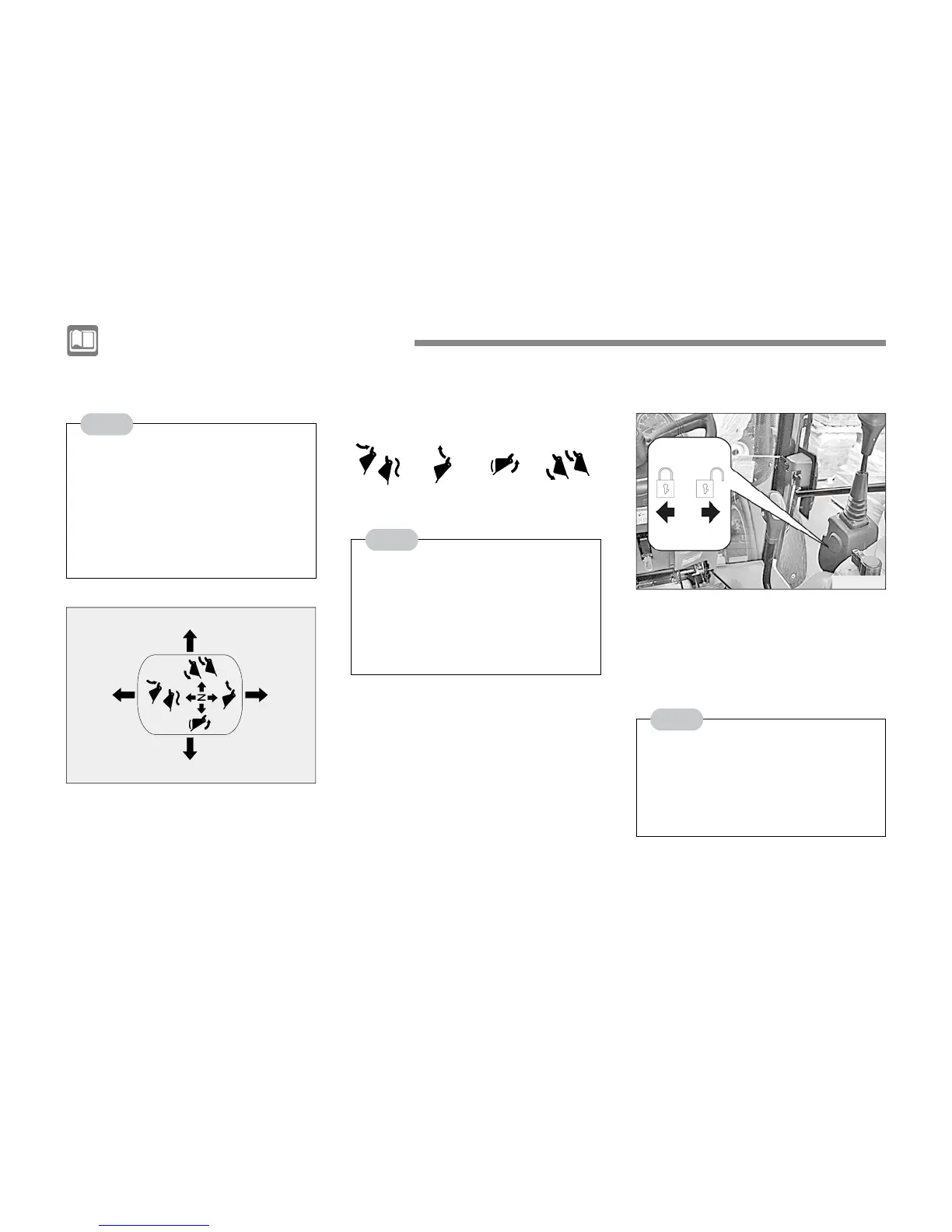

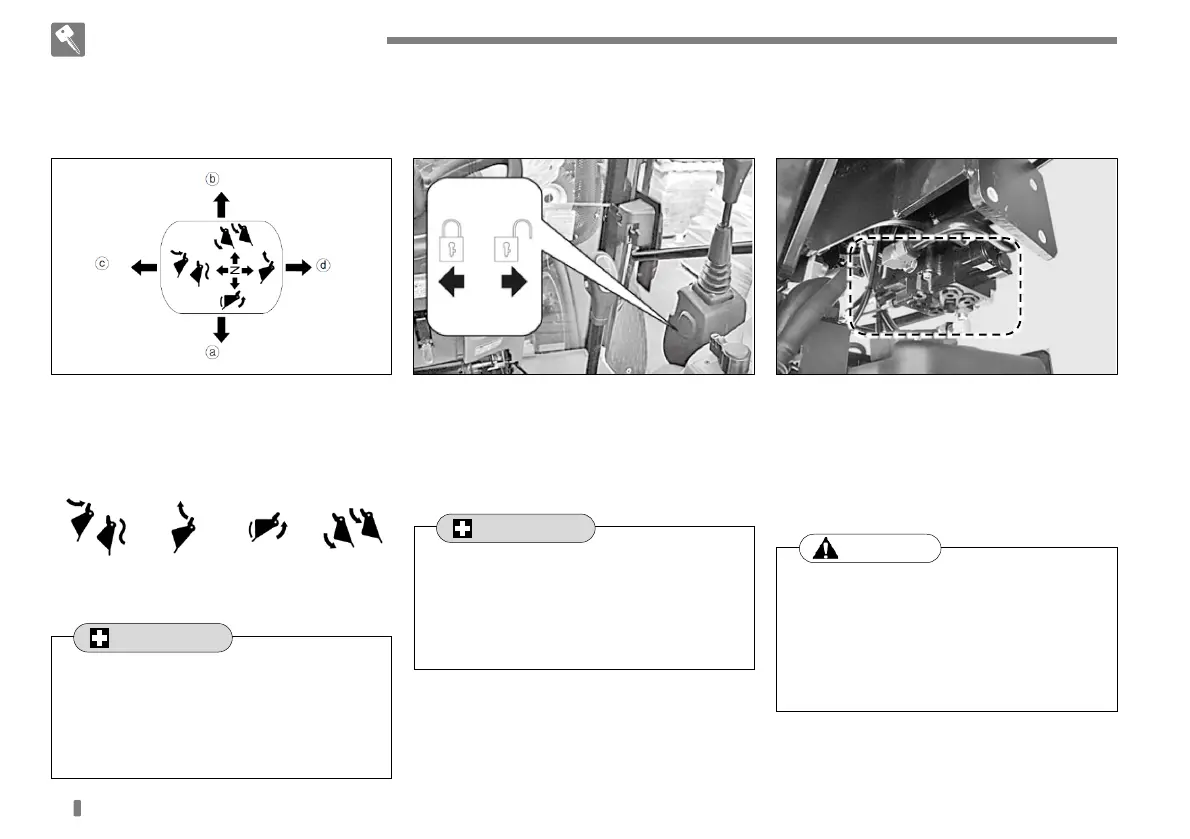

C
TRACTOR INSTRUMENTS
22
This lever is used to control a loader
(when equipped).
< Joystick lever operating direction >
Boom down Boom up Bucket up Bucket down
▶ JOYSTICK LEVER OPERATING
DIRECTION
There is a switch to lock the operation
of the joystick lever. Pushing it to the
left locks the lever while pushing it to
the right unlocks the lever.
The loader valve is installed under the
step on the right side and the joystick
lever is installed on the right from the
driver's seat in the cabin for easy
installation and operation of a loader.
▶ JOYSTICK LEVER SAFETY
DEVICE
▶ LOADER VALVE AND JOYSTICK
LEVER
Do not operate the boom cylinder and
bucket cylinder simultaneously. Their
simultaneous operation can lead to a
lack of hydraulic oil, resulting in
abnormal operation of the loader.
IMPORTANT
A implement can be dropped suddenly
by operating the joystick lever
accidentally. Therefore, lock it in
position with its lock switch when it is
not in use.
IMPORTANT
Abnormal operation of a loader can lead
to an accident. Therefore, when
connecting the hydraulic pipes, set the
valve connection according to the
operating directions specified on the
label attached to the joystick lever.
WARNING
