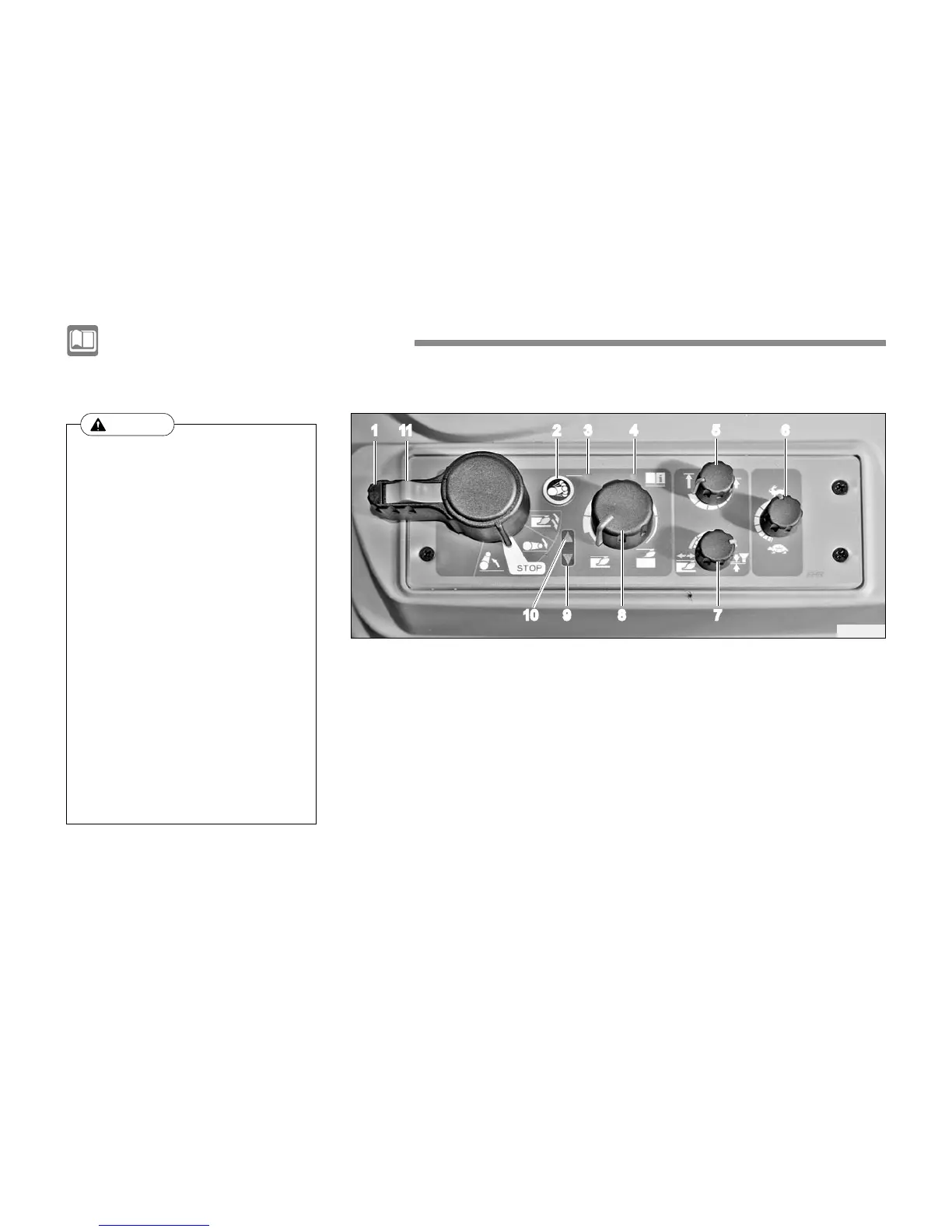

< Operation of interior controls >

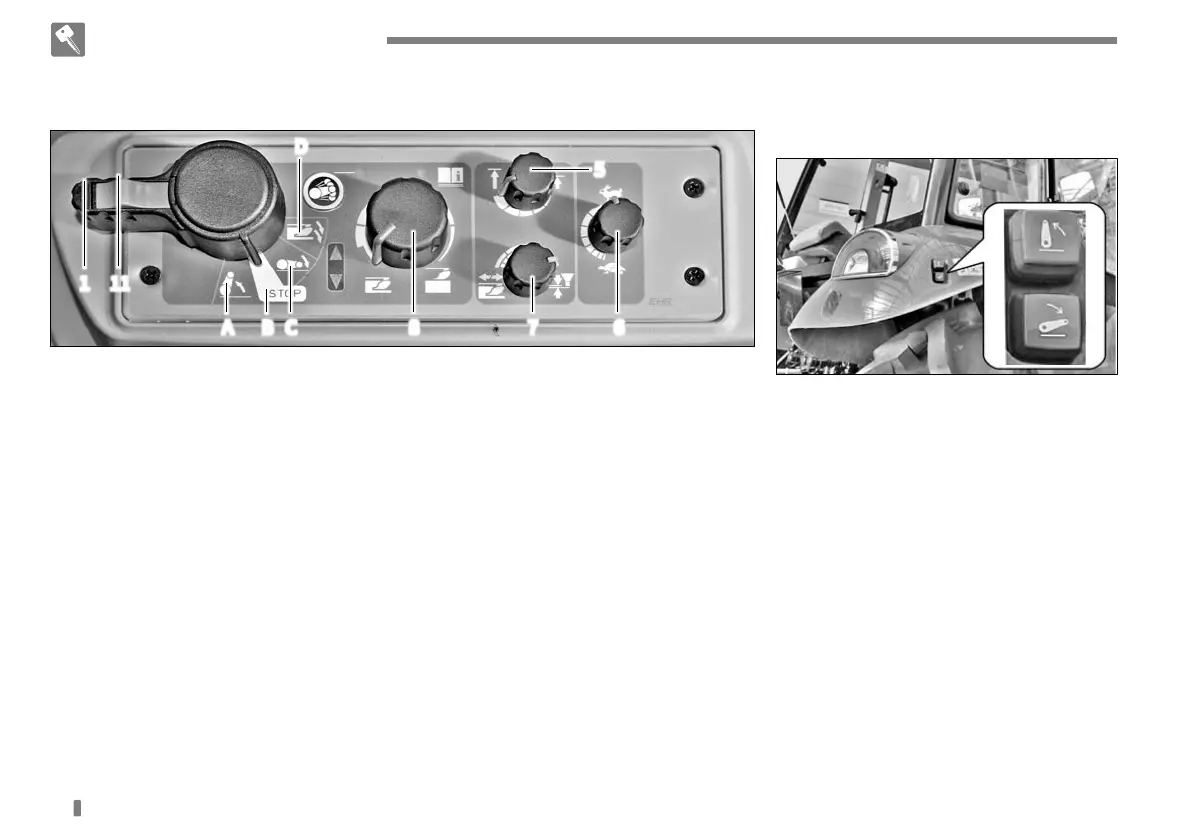

1. Control lever
A. Lift lift arm
B. Stop
C. Lower lift arm
D. Lower to ground rapidly
When releasing the knob in this position,
the knob is automatically returned to
the position B.
2. Lift arm upper position limit control
knob
- Turning it clockwise decreases the
upper position limit of the lift arm.
- Turning it counterclockwise increases
the upper position limit of the lift arm.
3. Lift arm lowering speed control knob
- Turning the knob toward the rabbit
symbol increases the lift arm lowering
speed.
- Turning the knob toward the tortoise
symbol decreases the lift arm lowering
speed.
4. Position/Draft control knob
- Turning it counterclockwise sets the
draft control with higher priority.
- Turning it clockwise sets the position
control with higher priority.
5.Working depth control knob
- Turning it clockwise increases the
height of the lift arm.
- Turning it counterclockwise decreases
the height of the lift arm.
<External lifting/lowering switch
operation>
These switches are installed to the left
and right mudguards on the back of the
vehicle and can be used to lift and lower
an implement.
▶ EXTERNAL LIFTING/LOWERING
SWITCH
1 11
D
5
8 7 6A B C
