< Operation >
Keep the following instructions for safe
and correct use of the electronic lift:
1. When starting the engine, the
indicator (4) comes on to inform the
driver that the interior lift controls
cannot be used for now for safety
reason.
The exterior lifting/lowering
switches (12) on the rear
mudguards are available to use.
the knob (5) and place the lift
control lever (1) into the lifting
position (A). Then, the indicator (4)
goes off and the indicator (10)
comes on.
< Hydraulic lock operation >
1. Before operation, set the lever (1) to
the lifting position (A) to lift the
implement.
2. Turn the knob (6) counterclockwise
to its end.
3. Push the lock button (11) forward to
fix the lever in the lifting position.
Keep other settings as before
locking the lever.
< Swing attenuation device >
This device is to protect the hydraulic
system against impact from an
implement when driving the tractor
equipped with an implement.
To activate this device, set the lever (1)
to the lifting position (A) and press the
switch (2). Then, the indicator (3) comes
on to inform its activation.
If the control lever (1) is already in the
lifting position (A), set it to the Stop
position first and move it to the lifting
position (A).
When driving the tractor with an
implement attached, press the swing
attenuation button to protect the
hydraulic system against impact from
an swinging implement.
CAUTION

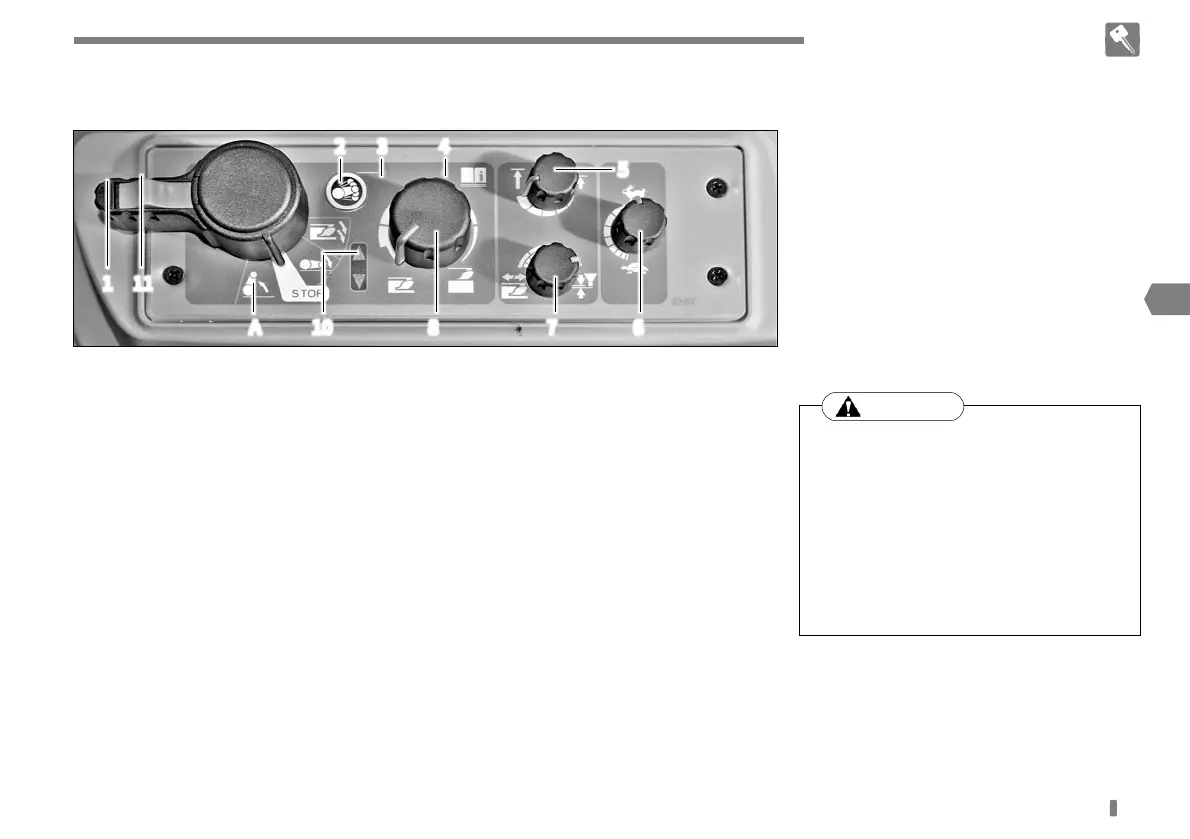

1 11
2 3 4
5
10 8 7 6A
