typical GC0303DCX - Installing the Machine Head; Installing the Knee Lifter Assembly

-2-
1
2
5
2
3
3
2
3
4
1
2
3

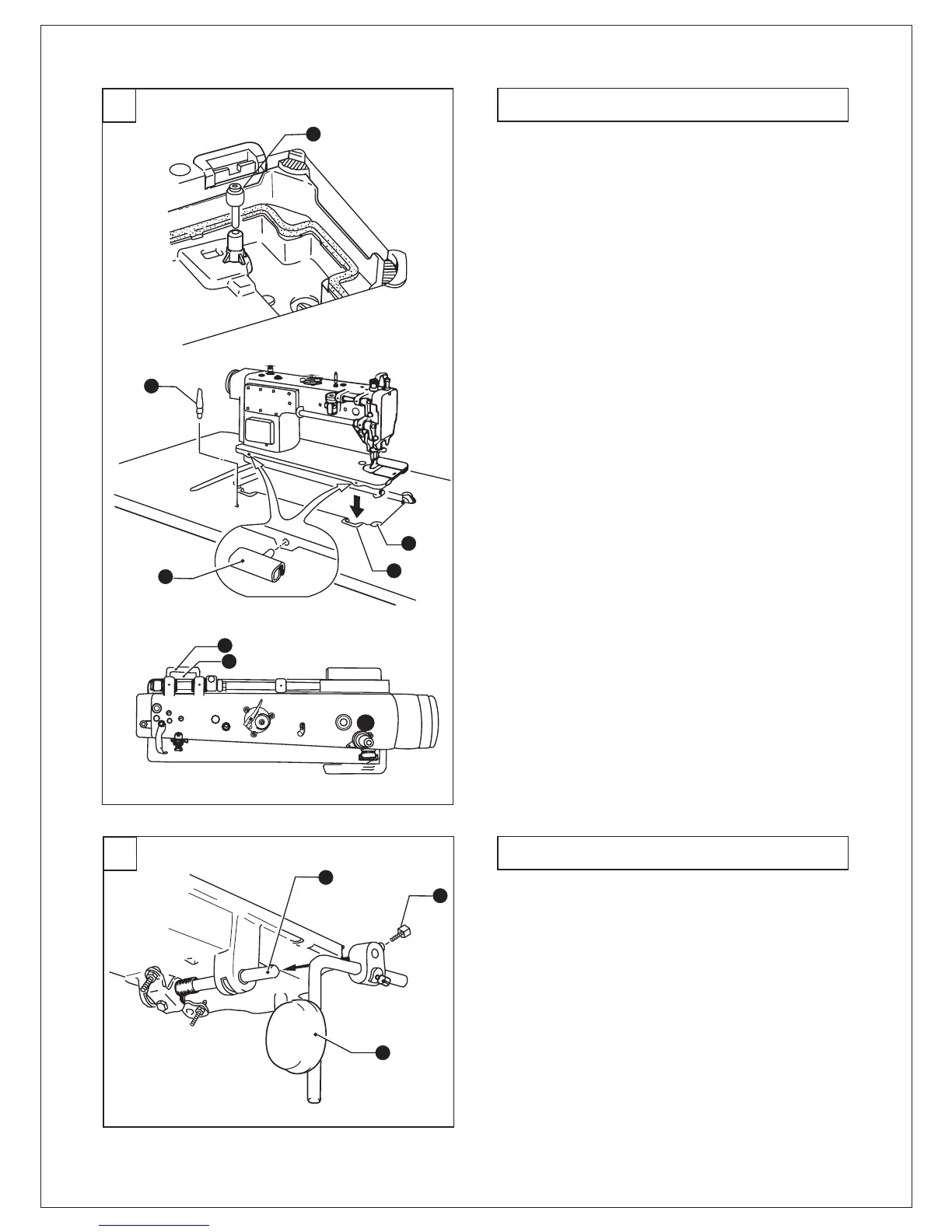

4. Installing the machine head (Fig.2)
1.Insert the knee lifter lifting bar ①.
2.Insert the two hinges ② into the holes in the
machine bed.
3.Clamp the two hinges onto the rubber
cushions ③ in the work table, and the place the
machine head onto the head cushions ④ which
are on the top of the oil pan corners.
4.Tap the rest bar ⑤ into the table hole.
NOTE: Tap the rest bar securely into the table
hole, if not, the machine head will not be safe
when it is tilted back.
5. Installing the knee lifter assy. (Fig.3)
Insert the knee lifter assy. ① into the shaft ②
under the oil pan, and slightly tight the screw ③.
