09

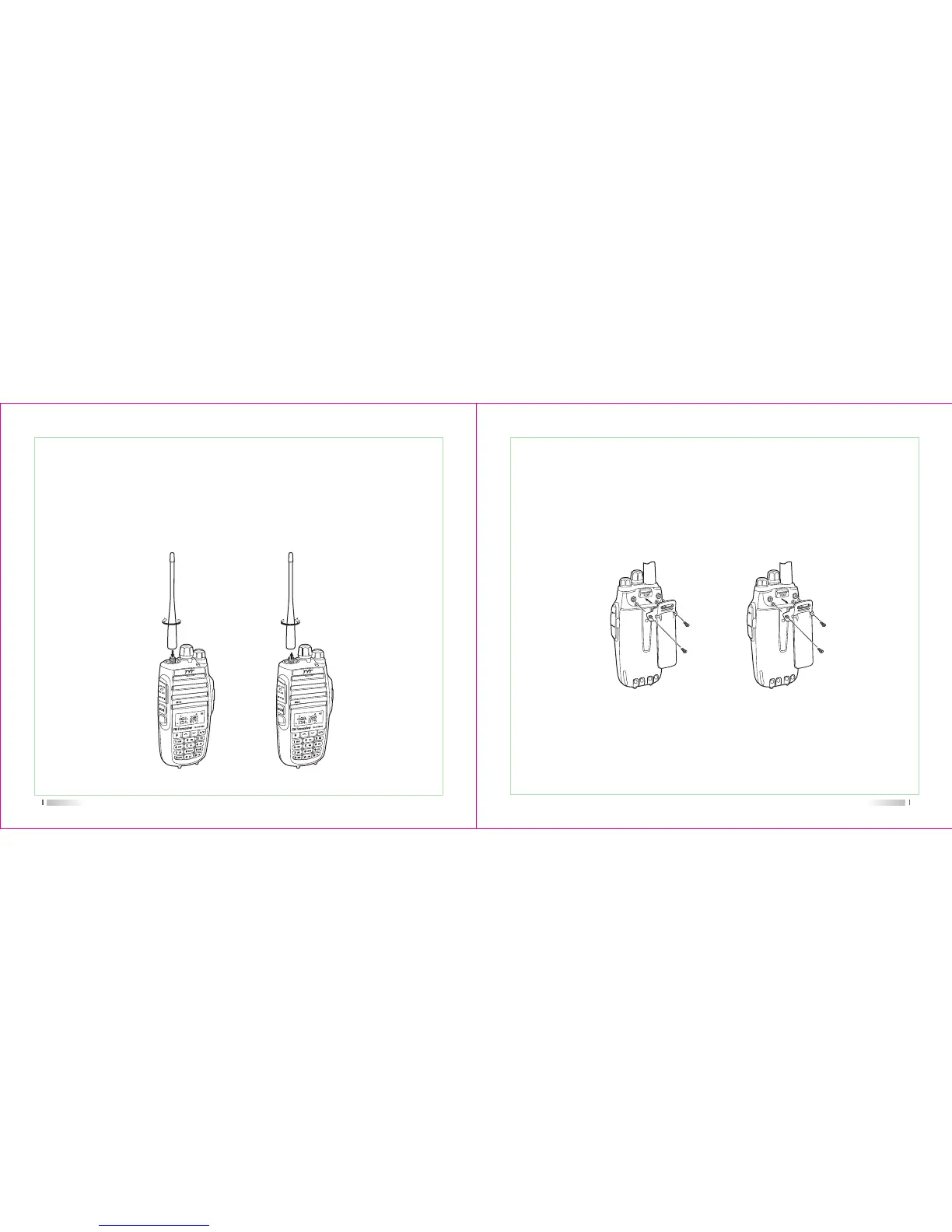

1) Align the threaded end of antenna and the threaded hole at the top of radio, rotate the
antenna clockwise until it is tight. (picture 3)
2) To remove the antenna, rotate it counter-clockwise until the antenna spirals out.
(picture 4)
Installing and removing the antenna
(picture 4)(picture 3)
10
(picture 5) (picture 6)
1) Align the two holes of belt clip and the two holes of the radio, fix them with the supplied
M2.5x5 screw. (picture 5)
2) Loosen the screw set to remove the belt clip (picture 6)
Installing/removing the belt clip
