Service and Parts Manual
42

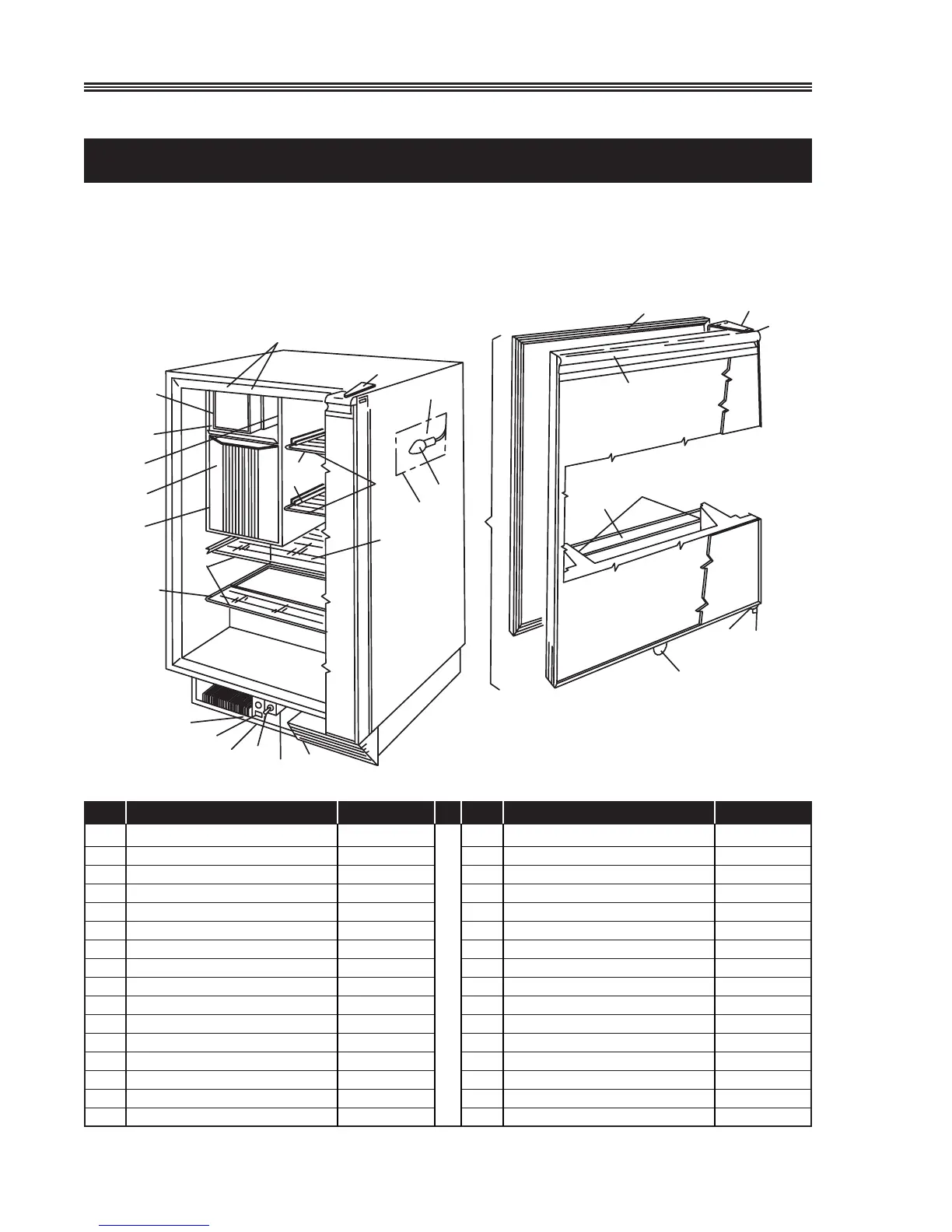

COMBO 75FF (1 of 2)
New Design Starting With Serial Numbers
7CF600000
For Item #10, see Model 402 Ice Maker (page 39) for separate breakdown.
Item Description Part No.
1 Handle 31789-4*
2 Door Gasket 31493-4*
3 Door Shelf Retainers (3) 31521-1
4 Shelf Retainer Rivet (6) 41824
5 Door Switch 1916
6 Door Ass’y 75-DOOR*
7 Hinge, Top 11849-ST*
8 Pivot Screw, Top 41785-SS*
9 Dr Switch Brkt 11712
10 Ice Maker Ass’y 402
11 Ice Bucket 31501
12 Control 2717
13 Control Knob 41492
14 Switch On-Off 2053
15 Lamp Bulb 31317
16 Ice Bin Door 31523-S
`Item Description Part No.
17 Glass Shelf (1) 31427-1
18 Glass Half Shelf (1) 31435
19 Grille 11664*
20 Glass Short Shelf (2) 31423-1
21 Trim Strip, Front Long (2) 31443-4
22 Trim Strip, Front Short (2) 31443-2
23 Timer 2632-2-S
24 Fan Motor, Evaporator 5299-1
25 Fan Blade, Evaporator 31656
26 Hinge, Bottom 11849-SB*
27 Pivot Screw, Bottom 41747-SS*
28 Freezer Housing 11537-S
29 Ice Bin Door Hinge 31463
30 Evaporator & Heat Exchanger 2669-FFS
31 Light Cover 31314
32 Lamp Holder 31316-1
*Please indicate color
9
1
11
26
27
4
3
8
7
2
19
23
5
13
12
14
6
17
22
7
18
21
20
28
25
24
16
10
29
15
31
32
COMBO75FFc
