Service and Parts Manual
44

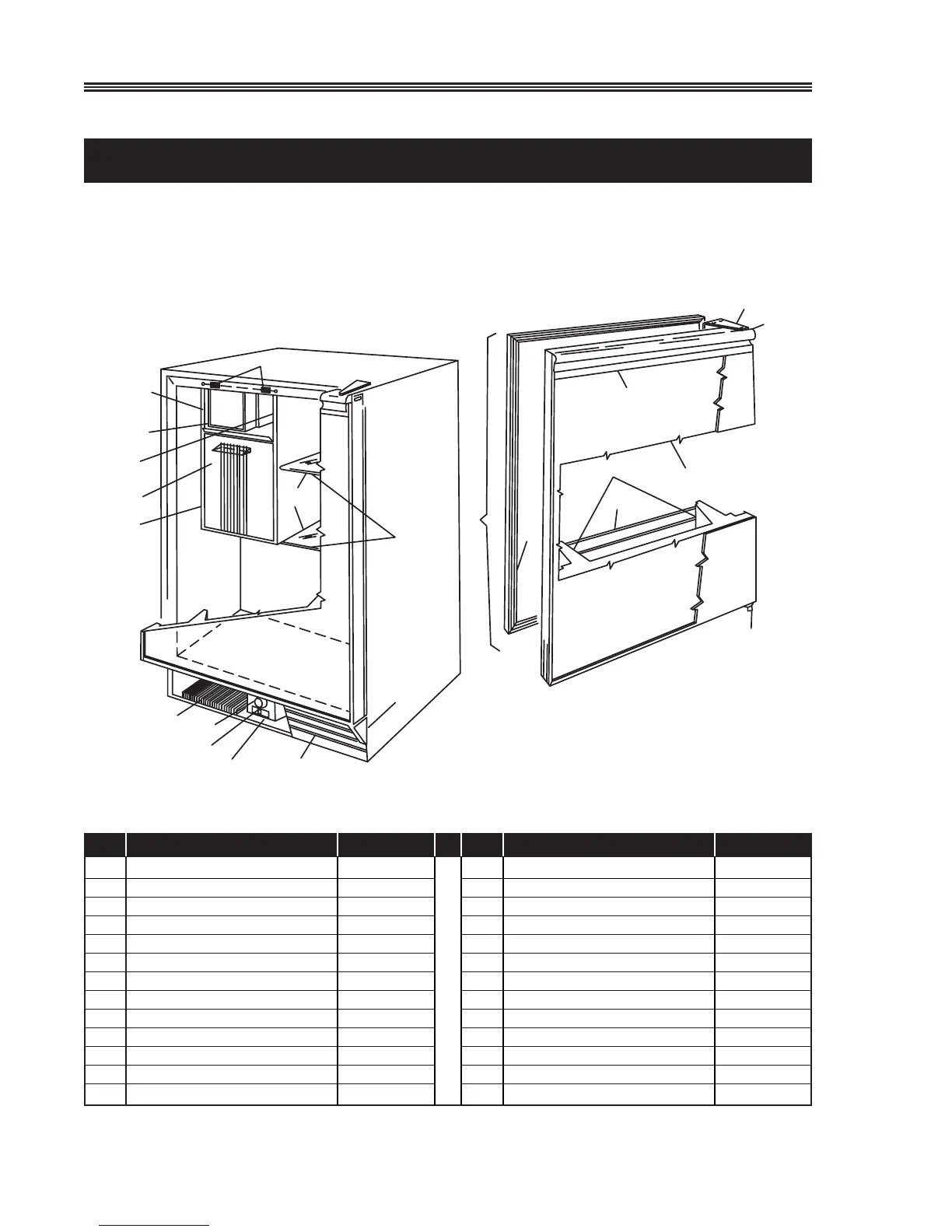

COMBO 29FF (1 of 2)
Previous Design Starting With Serial Numbers
2CF300000, 2CF400000 or 2CF500000
For Item #9, see Model 402 Ice Maker (page 39) for separate breakdown.
Item Description Part No.
1 Handle 31489-3*
2 Door Gasket 31493-3*
3 Door Shelf Retainer (Long) 31521-2
4 Door Shelf Retainer (Short) 31521-3
5 Fan Blade, Evaporator 31656
6 Pivot Hinge, Top 11697-ST*
7 Pivot Hinge, Bottom 11695-S*
9 Ice Maker Ass’y 402
10 Ice Bucket 31501
11 Complete Door Ass’y 29-DOOR*
12 Control 2636
13 Grille 11663*
14 Ice Bin Door 31523-S
Item Description Part No.
15 Glass Shelf (2) Short 31425-1
16 Switch On-Off 2053
17 Ice Bin Door Hinge (2) 31463
18 Shelf Retainer Rivet (6) 41824
19 Trim Strip, Front Short (2) 31443-1
20 Pivot Screw, Top 41785-SS*
21 Condenser 1893-FFS
22 **Timer 2632-1
23 Fan Motor, Evaporator 5299-1
24 Pivot Screw, Bottom 41747-SS*
25 Freezer Housing 11471-S
26 Control Knob 41492
27 Evaporator & Heat Exchanger 2631-S29
*Please indicate color.
**Replaces P/N 2595 or 2632 through installation of kit.
7
2
4
22
16
26
15
19
9
17
20
6
24
1
18
14
5
23
27
11
13
12
21
25
3
10
COMBO29FFa
COMBO29FFa
