45

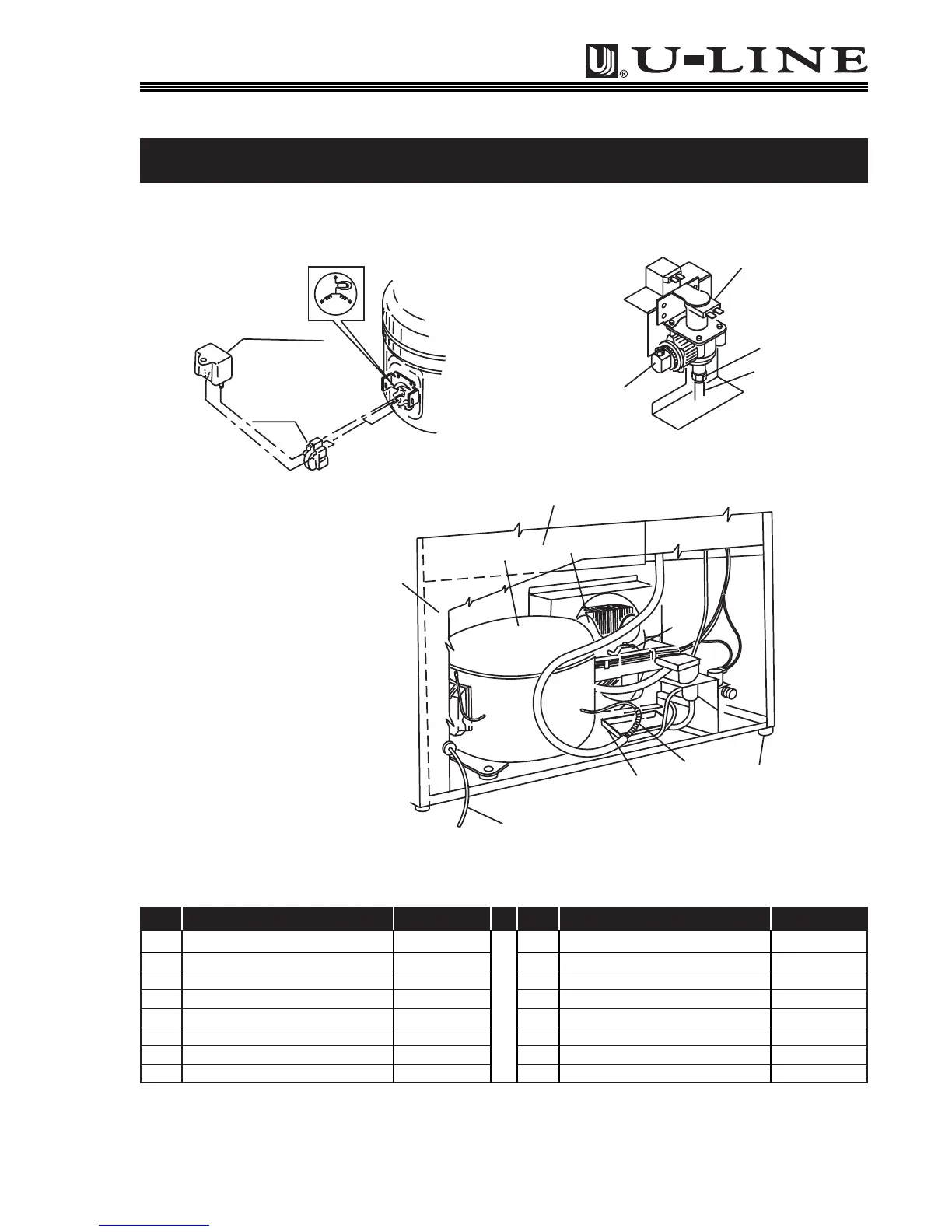

COMBO 29FF (2 of 2)
Previous Design Starting With Serial Numbers
2CF300000, 2CF400000 or 2CF500000
Item Description Part No.
1 Water Line 404FF
2 Water Line Connection 41826
3 Plastic Nut & Ass’y 41254
12 Cabinet Foot (4) 41125
13 Dryer 2692
15 Fan Motor, Condenser 5263
16 Fan Blade, Condenser 5188
18 Back Panel 11545-1
Item Description Part No.
19 Power Cord 2293
20 Solenoid Valve 2552A
22 ** Relay/Overload 5421
24 * Compressor 5405-FFS
25 By-Pass Valve Ass'y 2749-S
28 Drain Pan 31550-1-F
29 **Capacitor 5422
30 **Insulation 31622
* Replaces P/N 5402-FFs through installation of kit.
** New part added through installation of kit.
*** Replaces P/N's 5413 and 5414 through installation of kit.
C
S
M
PTC RELAY
RUNNING CAPACITOR
12
19
13
28
16
30
24
18
1
3
20
2
15
22
29
COMBO29FFb
