U-Line BI15 Icemaker User Manual

Service and Parts Manual
66

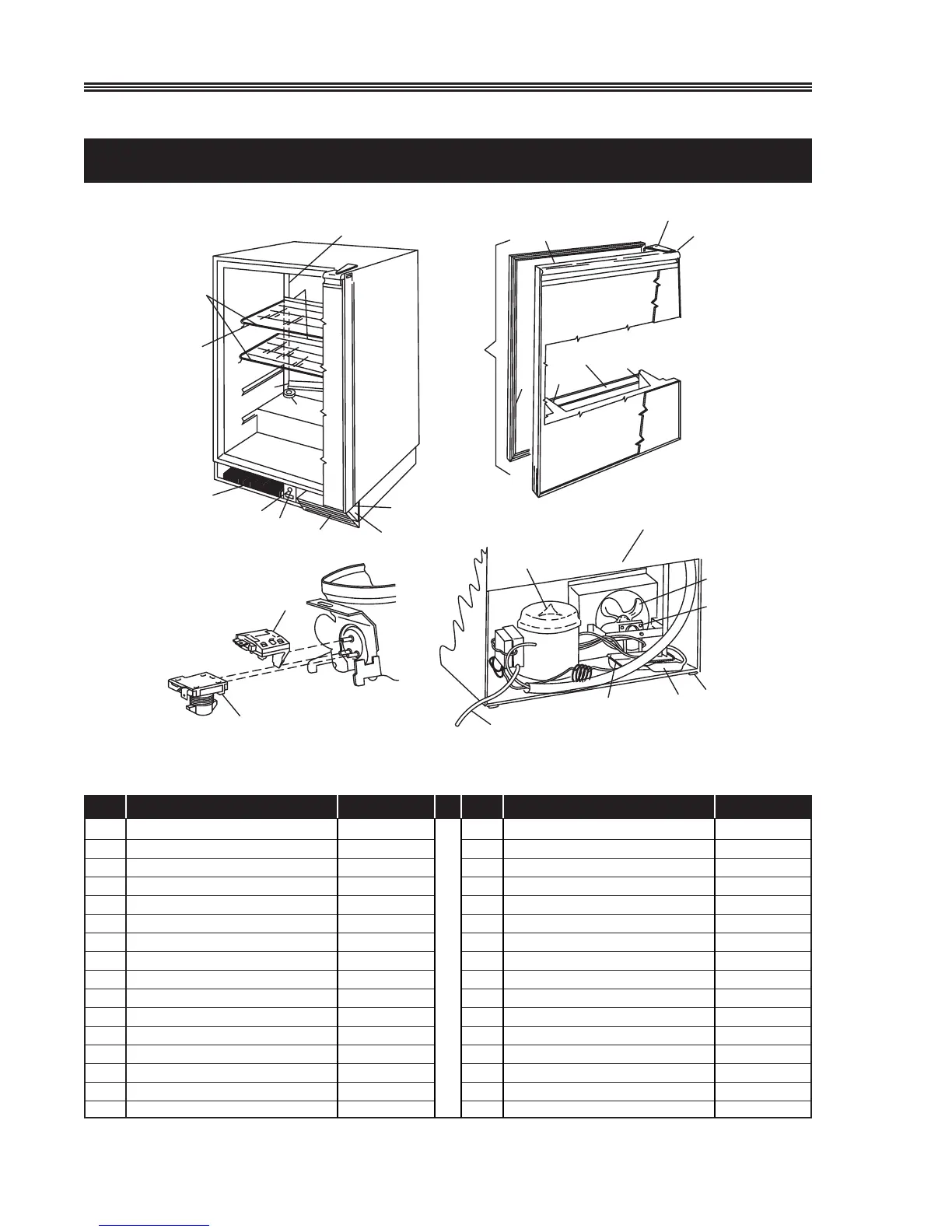

MODEL 29R
Item Description Part No.
2 Grille 11663*
3 Glass Shelves (3) 31426-1
4 Condenser 1893-S
5 Control 2745-S
6 Control Knob-Silver 41715
Alternate Control Knob-Black 41492
7 Door Shelf Retainer (Short) (1) 31521-3
8 Drain Cup 11508
9 Drain Pan 31550-1-F
10 Drain Trough 31391
11 Door Gasket 31493-3*
12 Door Handle 31489-3*
13 Door Shelf Retainers (Long) (2) 31521-2
14 Door Hinge, Upper 11697-ST*
15 Door Hinge, Lower 11695-S*
16 Compressor 5400-S
Item Description Part No.
17 Relay 5412
18 Door Ass’y 29-DOOR*
19 Back Panel 11545-1
20 Dryer 2693
21 Fan Motor 5263
22 Fan Blade 5188
23 Power Cord 2234
24 Evaporator & Heat Exchanger 1960-S
25 Cabinet Feet (4) 41125
26 Shelf Retainer Rivet (6) 41824
27 Shelf Trim Strip (Long) Front (3) 31443-3
28 Shelf Trim Strip (Long) Rear (3) 31444-3
29 Pivot Screw, Top 41785*
30 Overload 5287
31 Pivot Screw, Bottom 41747*
23
9
20
25
21
22
16
19
13 (7)
26
26
12
8
10
24
28
3
27
18
14
29
11
2
6
5
4
30
17
31
15
*Please indicate color.
MODEL29R
