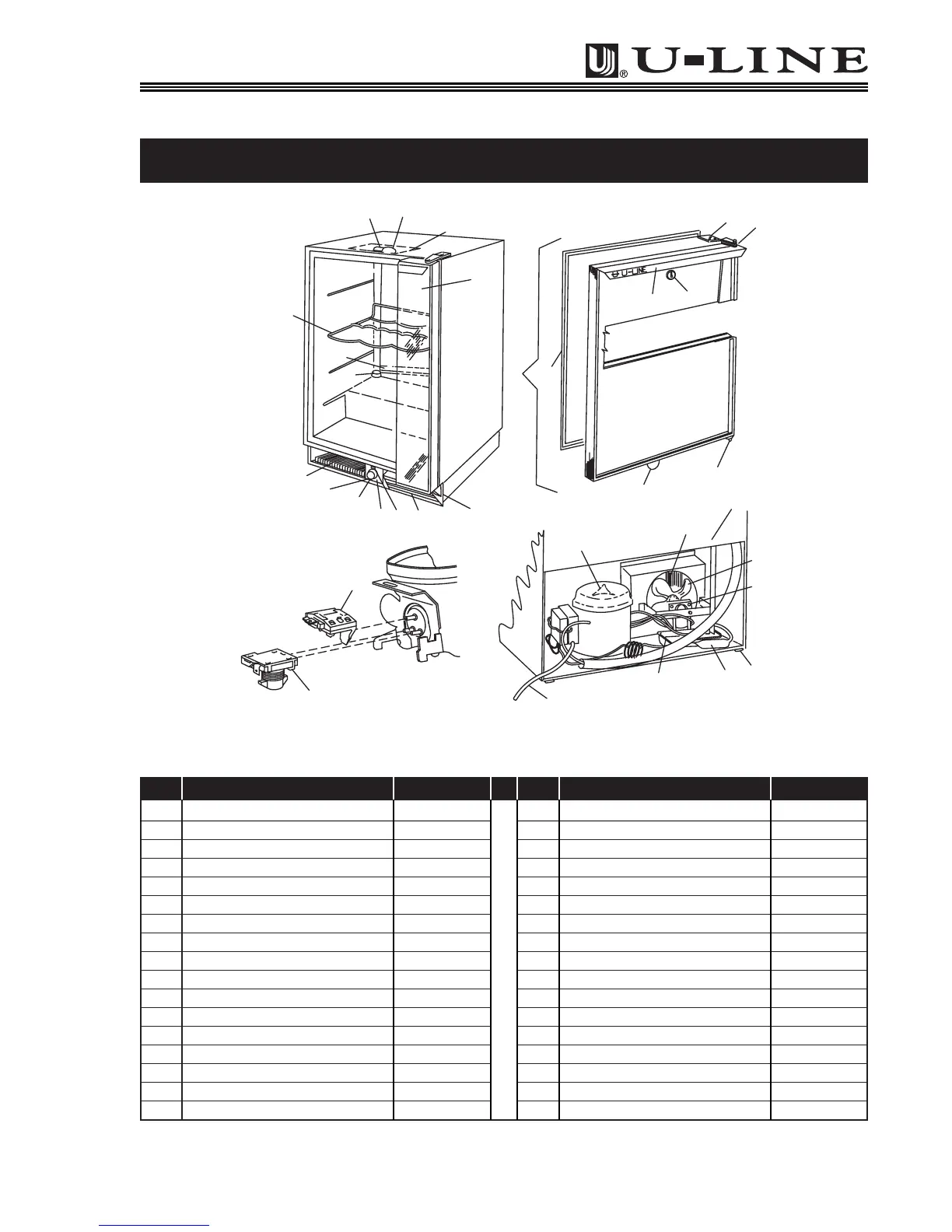

MODEL 29WC
Item Description Part No.
1 Dr Switch Brkt 11712
2 Grille 11663*
3 Condenser 1893-S
4 Control 2744-S
5 Control Knob-Silver 41715
Alternate Control Knob-Black 41492
6 Drain Cup 11508
7 Drain Pan 31550-1-F
8 Drain Trough 31391
9 Door Gasket 31493-3*
10 Door Handle
41984-2-BLK
11 Wire Wine Rack 2299
13 Light Bulb 31317
14 Light Socket 31316-1
15 Door Hinge, Upper 1848A-S*
16 Hinge Plate, Lower Right 1847-2-S*
17 Compressor 5400-S
Item Description Part No.
18 Relay 5412
19 Door Ass’y WC29-DOOR
20 Back Panel 11545-1
21 Dryer 2693
22 Fan Motor 5263
23 Fan Blade 5188
24 Power Cord 2240
25 Evaporator & Heat Exchanger 1960-S
26 Cabinet Feet (4) 41125
27 Light Door Switch 1916
28 Light On-Off Switch 2053
29 Light Cover 31314
31 Lower Hinge Support 11624-1-S*
32 Lock Ass’y 41734-S
33 Hinge Plate, Top Right 1847-1-S*
34 Overload 5411
33
25
3
31
2
27
4
5
28
3
6
8
11
29
13
14
20
23
22
26
21
17
7
24
34
18
19
16
1
32
10
15
9
*Please indicate color.
MODEL29WC
