Service and Parts Manual
68

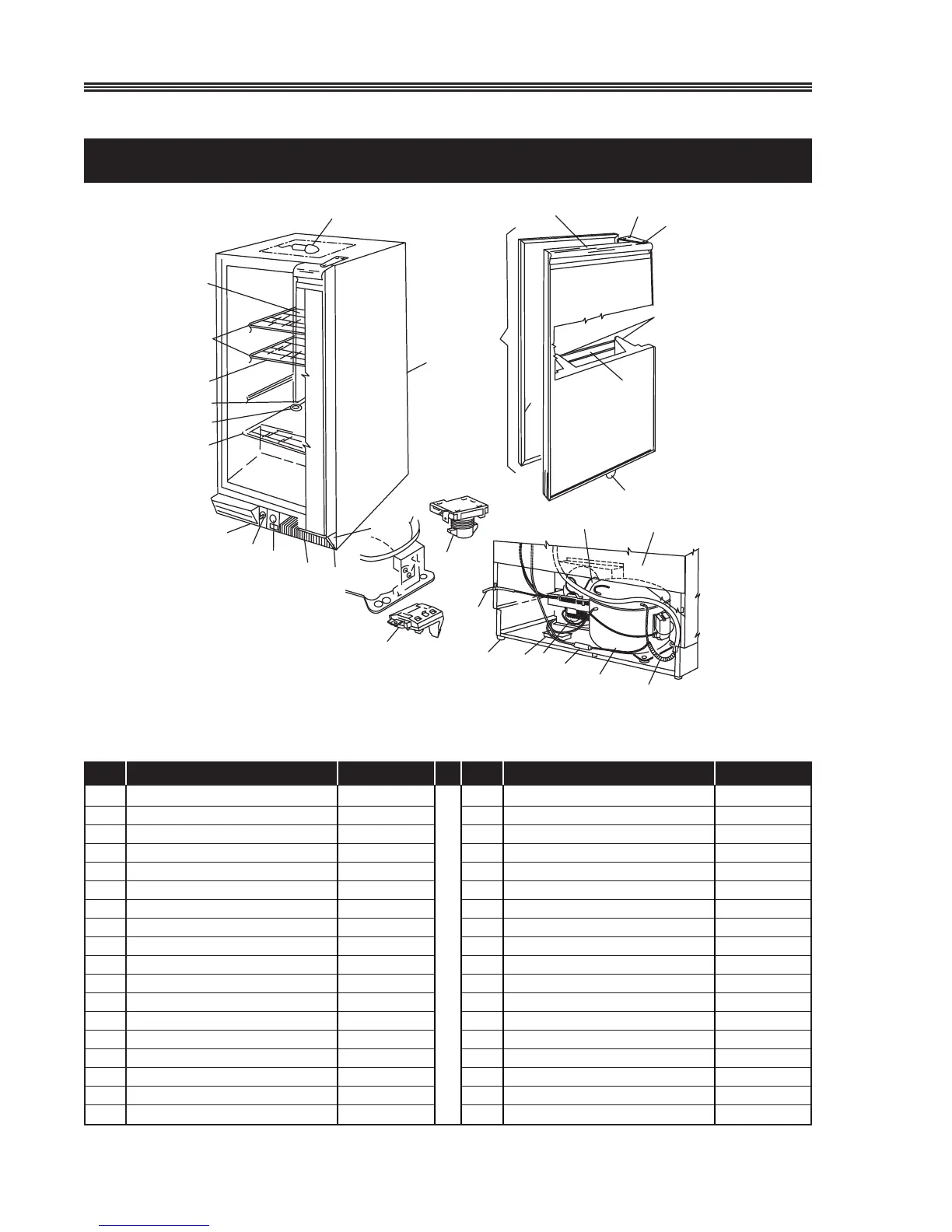

MODEL 15R
Item Description Part No.
1 Dr Switch Brkt 11712
2 Grille 31543*
3 Back Panel 41802
4 Feet Leveler (4) 41319
5 Door Shelf Retainers (3) 31521-3
6 Glass Shelf (3) 11771
7 Glass Shelf (1) 11770
8 Drain Cup 11508
9 Drain Pan 31550-1-F
10 Drain Trough 31391-2
11 Hinge Bracket, Top 11697-ST*
12 Hinge Bracket, Bottom 11695-S*
13 Hinge Pin, Top 41785-SS*
14 Hinge Pin, Bottom 41747-SS*
15 Door Ass’y 15R-DOOR*
16 Door Handle 31489-2*
17 Door Gasket 31493-6*
18 Shelf Retainer Rivet (6) 41824
Item Description Part No.
19 Control Knob-Silver 41715
Alternate Control Knob-Black 41492
20 Control 2745-S
21 Door Switch (Plunger) 1916
22 Lamp Cover 31314
23 Lamp Holder 31316-1
24 Lamp Bulb 31317
25 Compressor 5400-S
26 Condenser 2223-S
27 Relay 5288
28 Evaporator & Heat Exchanger 2649-S
29 Dryer 2694
30 Fan Motor, Condenser 5263
31 Fan Blade, Condenser 5188
32 Power Cord 2241
33 Glass Trim Strip, Front (4) 31443-5
34 Glass Trim Strip, Rear (3) 31444-5
35 Overload 5287
1
17
5
18
13
11
16
15
3
31
28
25
29
30
9
4
32
35
27
25
20
26
19
21
2
7
8
10
33
6
34
3
22, 23, 24
14
12
*Please indicate color.
MODEL15R
