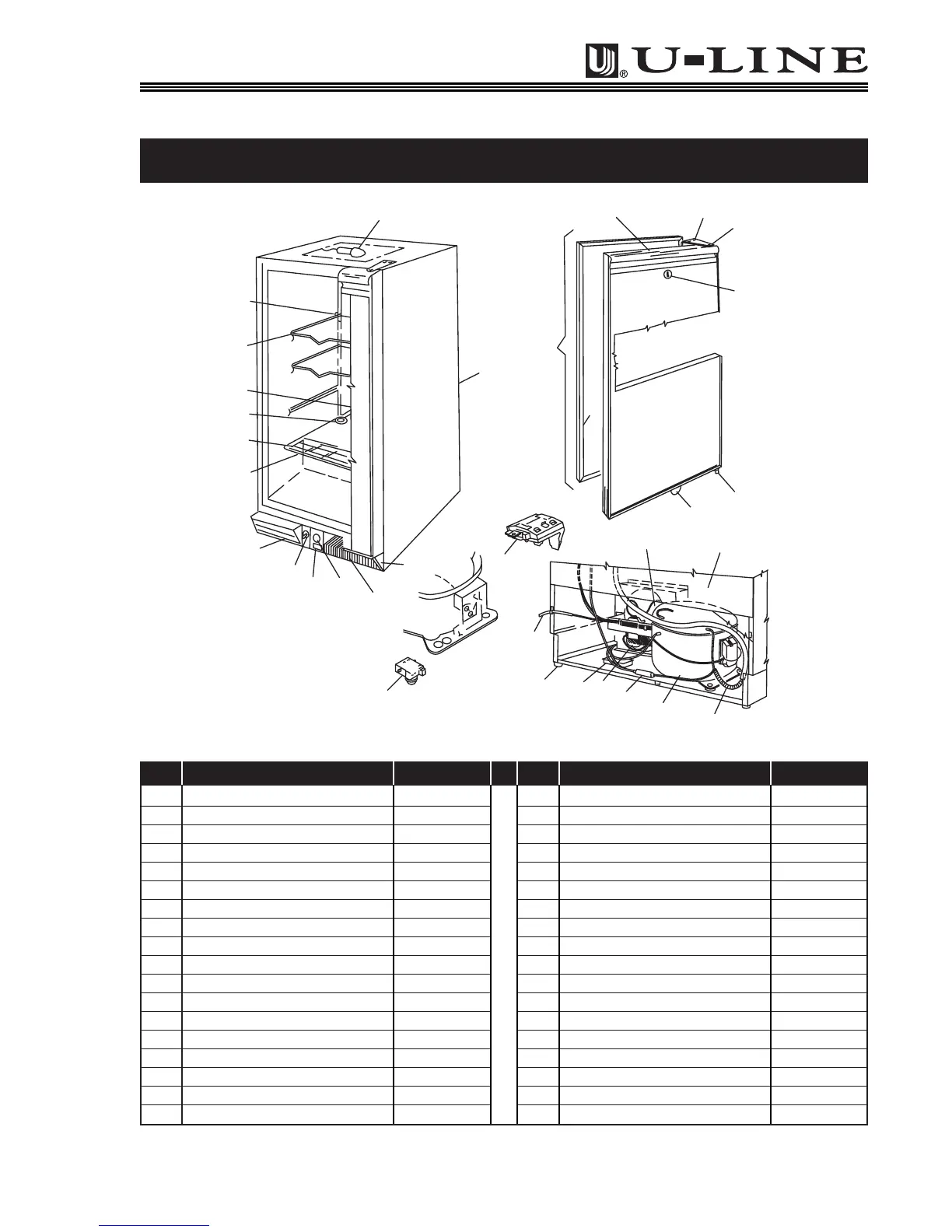

U-Line BI15 Icemaker User Manual

69
MODEL 15WC
Item Description Part No.
1 Dr Switch Brkt 11712
2 Grille 31543*
3 Back Panel 41802
4 Feet Leveler (4) 41319
5 Wine Rack 2301
6 Wine Rack Clip 31648
7 Glass Half Shelf (1) 11770
8 Drain Cup 11508
9 Drain Pan 31550-1-F
10 Drain Trough 31391-2
11 Hinge Bracket Ass’y, Top 1848A-S*
12 Hinge Bracket, Bottom 11624-1-S*
13 Pivot Hinge, Top 1847-1-S*
14 Pivot Hinge, Bottom 1847-2-S*
15 Door Ass’y 15WC-DOOR*
16 Door Handle 41984-1*
17 Door Gasket 31493-6*
18 Lock Ass’y 41734-S
Item Description Part No.
19 Control Knob-Silver 41715
Alternate Control Knob-Black 41492
20 Control 2744-S
21 Door Switch - Plunger 1916
22 Lamp On-Off Switch 2053
23 Lamp Cover 31314
24 Lamp Holder 31316-1
25 Lamp Bulb 31317
26 Compressor 5400-S
27 Condenser 2223-S
28 Relay 5412
29 Evaporator & Heat Exchanger 2649-S
30 Dryer 2694
31 Fan Motor, Condenser 5263
32 Fan Blade, Condenser 5188
33 Power Cord 2240
34 Glass Trim Strip Front 31443-5
35 Overload 5411
1
22
12
18
28
34
7
8
10
5
6
13
11
14
3
29
15
17
3
16
22, 23, 24
32
26
33
30
26
9
4
31
35
27
21
2
19
20
*Please indicate color.
MODEL15WC

U-Line BI15 Icemaker Specifications

General

Brand	U-Line
Model	BI15 Icemaker
Category	Ice Maker
Language	English
