4. If door edge opposite the hinges needs to move up, move plate
toward outside of door. If door edge needs to move down, move
plate toward inside of door (Figure 19). Repeat until top edge of
door is parallel with top of cabinet and tighten screws securely.

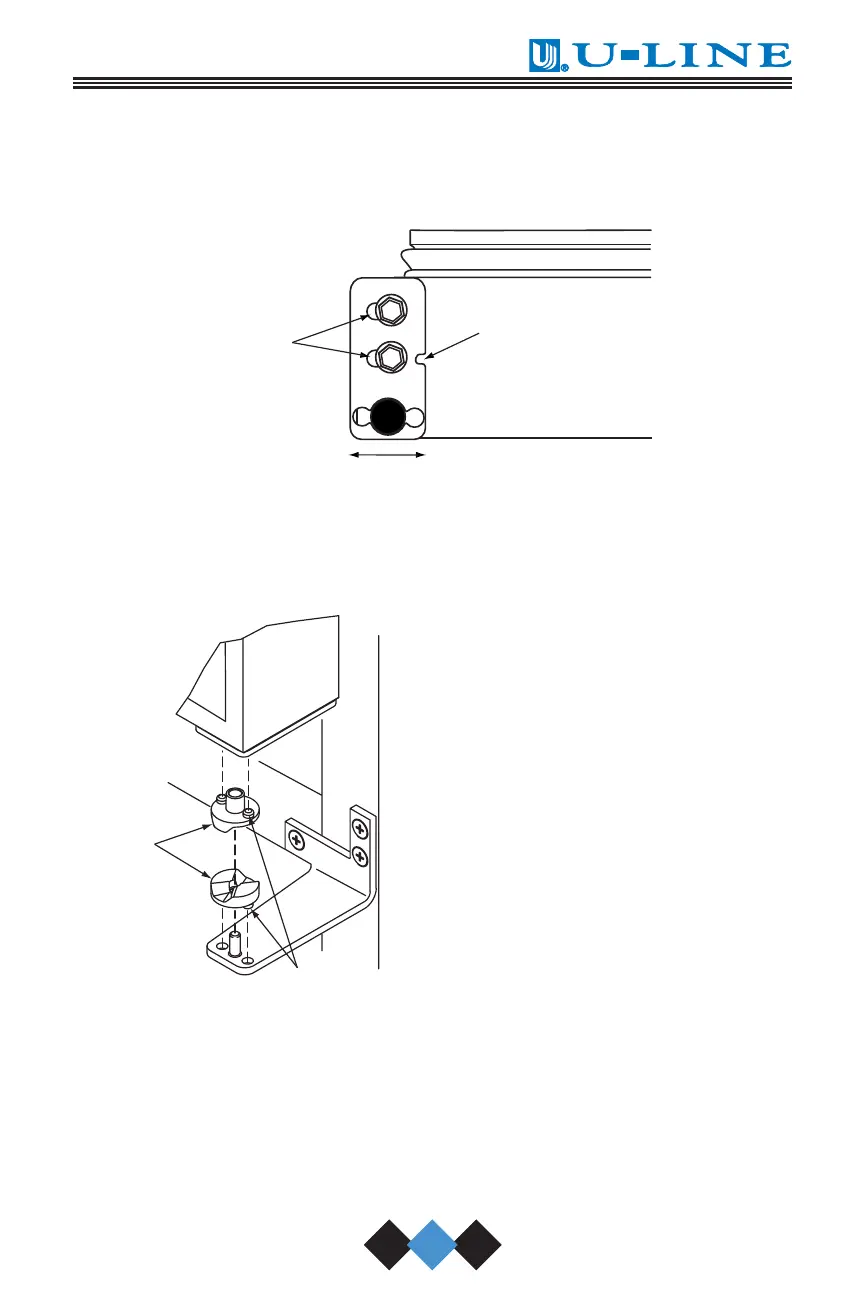

Figure 19
5. After adjustment is complete,
remove the door closers from
the bottom hinge, clean
thoroughly and apply petroleum
jelly to the mating surfaces of
the closers (Figure 20). Be
sure that bosses on closers
align with holes in hinge and
hinge plate. Mount door and
install top hinge pivot pin.
SLOTTED
MOUNTING
HOLES
NOTCH
LOWER
OUTSIDE
DOOR EDGE
RAISE
OUTSIDE
DOOR EDGE
CLRCO001a
19
UL312
DOOR
CLOSERS
BOSS
Figure 20
