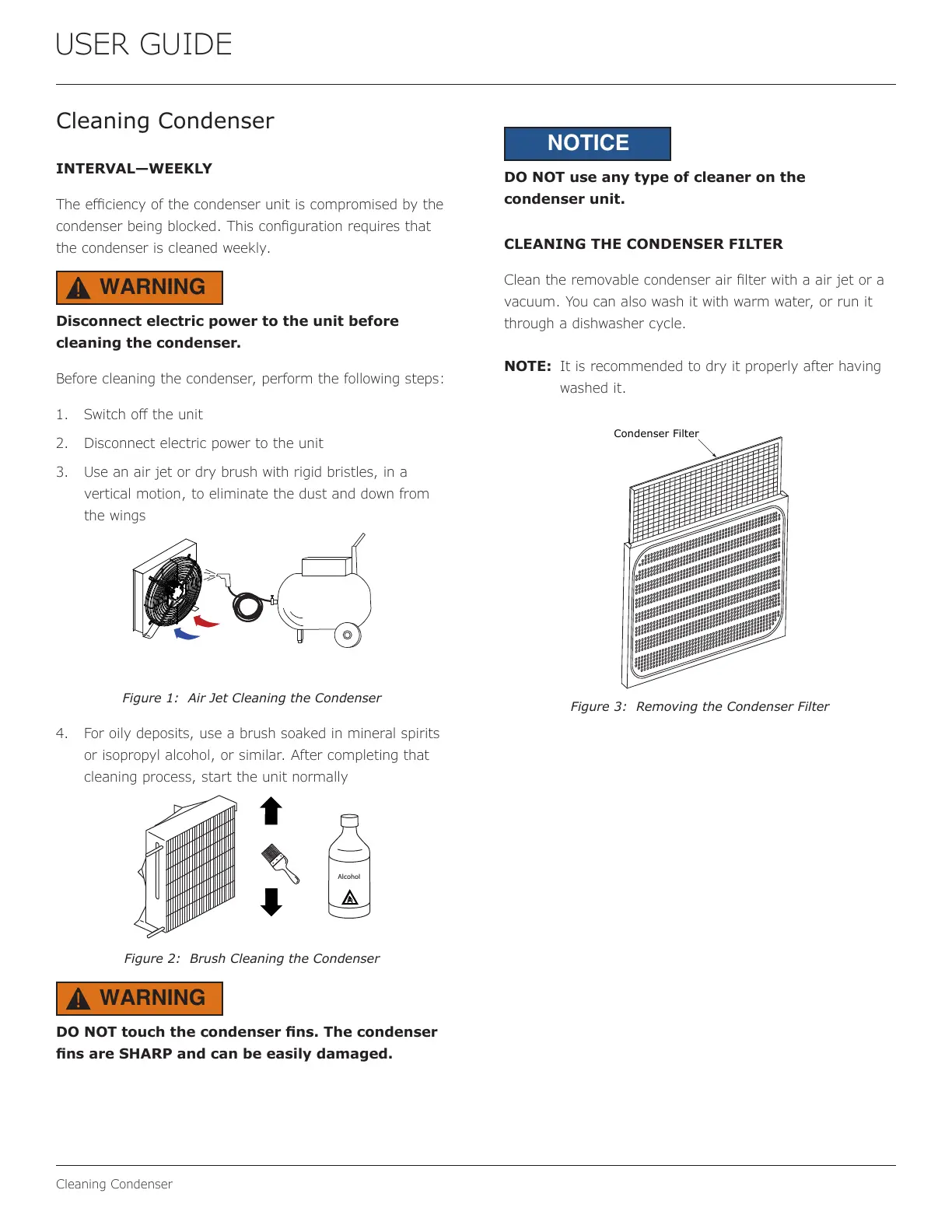

USER GUIDE
Cleaning Condenser
Cleaning Condenser
INTERVAL—WEEKLY
The eciency of the condenser unit is compromised by the
condenser being blocked. This conguration requires that
the condenser is cleaned weekly.
WARNING
!
Disconnect electric power to the unit before
cleaning the condenser.
Before cleaning the condenser, perform the following steps:
1. Switch o the unit
2. Disconnect electric power to the unit
3. Use an air jet or dry brush with rigid bristles, in a
vertical motion, to eliminate the dust and down from
the wings
Figure 1: Air Jet Cleaning the Condenser
4. For oily deposits, use a brush soaked in mineral spirits
or isopropyl alcohol, or similar. After completing that
cleaning process, start the unit normally
Alcohol
Figure 2: Brush Cleaning the Condenser
WARNING
!
DO NOT touch the condenser ns. The condenser
ns are SHARP and can be easily damaged.
NOTICE
DO NOT use any type of cleaner on the
condenser unit.
CLEANING THE CONDENSER FILTER
Clean the removable condenser air lter with a air jet or a
vacuum. You can also wash it with warm water, or run it
through a dishwasher cycle.
NOTE: It is recommended to dry it properly after having
washed it.
Condenser Filter
Figure 3: Removing the Condenser Filter
32
