U-Line UCBF632-SS12A User Guide & Service Manual

USER GUIDE
Wire Diagram 1
Wire Diagram

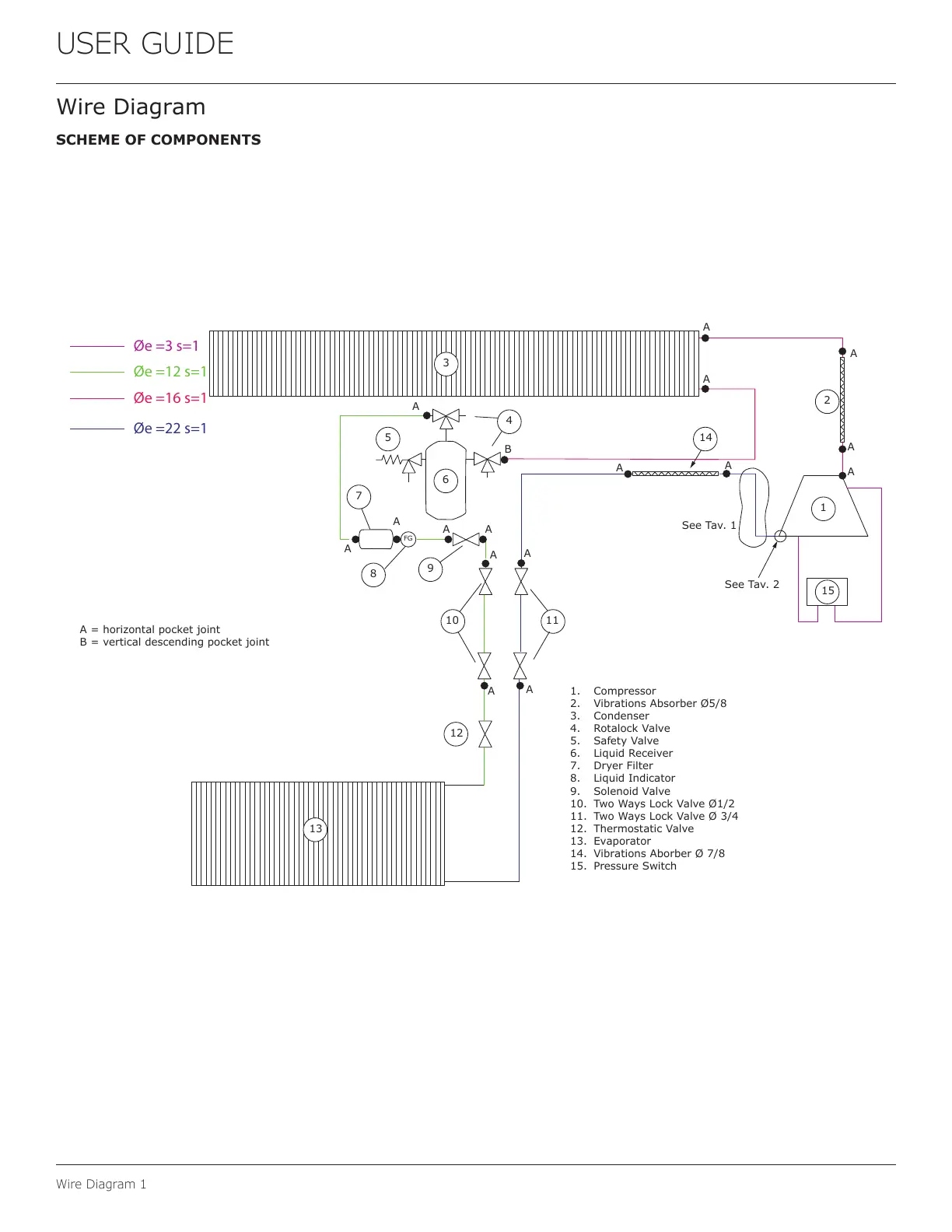

SCHEME OF COMPONENTS
Øe =3 s=1
Øe =22 s=1
Øe =16 s=1
Øe =12 s=1
3
13
15
1
2
14
12
1110
9
8
6
5
7
A
A
A
A A
A
A
A
A
A
A
A
A
A
A
A
B
A = horizontal pocket joint
B = vertical descending pocket joint
1. Compressor
2. Vibrations Absorber Ø5/8
3. Condenser
4. Rotalock Valve
5. Safety Valve
6. Liquid Receiver
7. Dryer Filter
8. Liquid Indicator
9. Solenoid Valve
10. Two Ways Lock Valve Ø1/2
11. Two Ways Lock Valve Ø 3/4
12. Thermostatic Valve
13. Evaporator
14. Vibrations Aborber Ø 7/8
15. Pressure Switch
FG
See Tav. 1
See Tav. 2
4
41

U-Line UCBF632-SS12A Specifications

General

Brand	U-Line
Model	UCBF632-SS12A
Category	Freezer
Language	English
