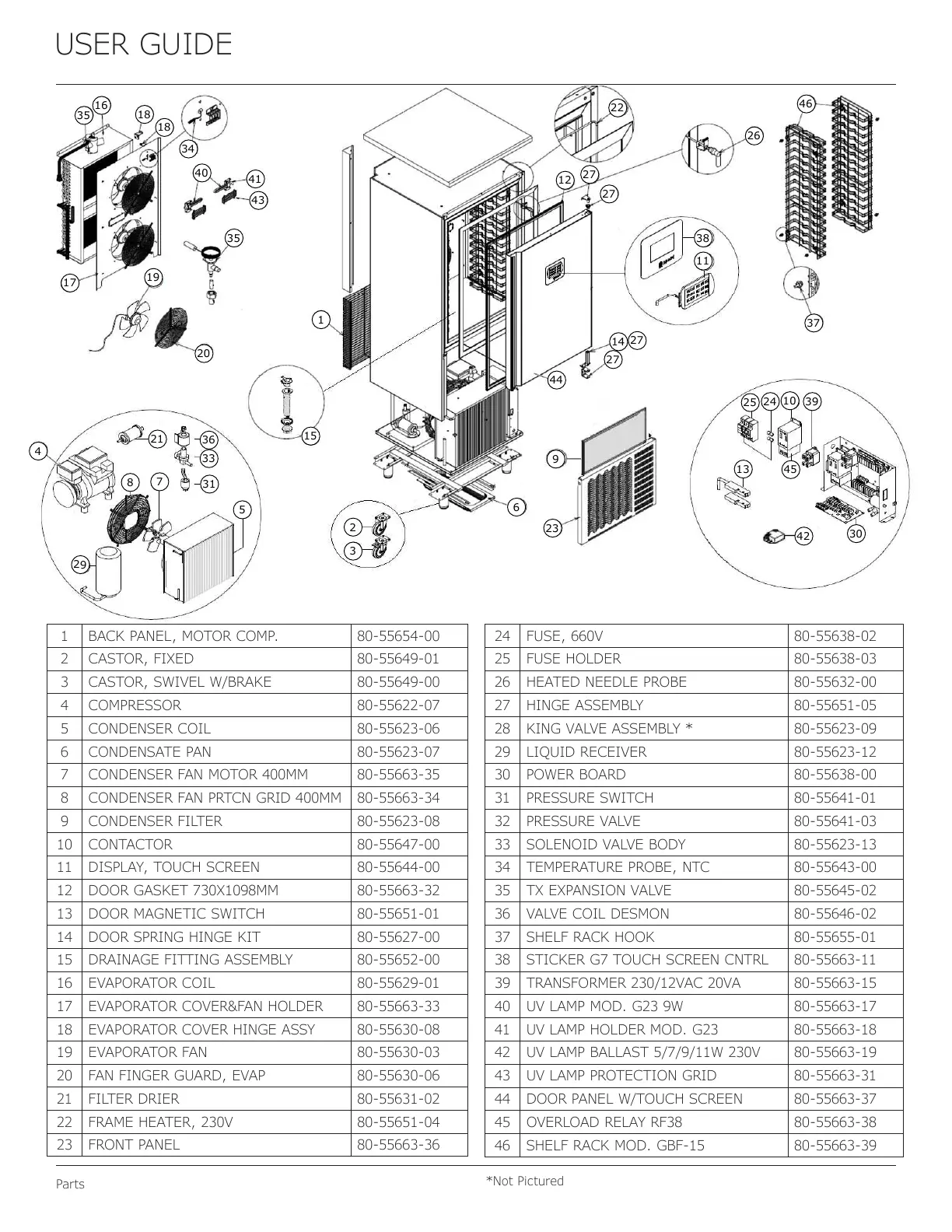

USER GUIDE
Parts
Pa rts
11
10
11
11
11
12
11
13
11
14
11
15
11
16
11
18
11
18
11
19
11
20
11
21
11
22
44
45
46
23
24
25
26
27
27
27
27
29
30
31
33
34
35
35
36
37
39
41
42
43
40
38
11
17
1
2
3
5
6
7
8
9
4
24 FUSE, 660V 80-55638-02
25 FUSE HOLDER 80-55638-03
26 HEATED NEEDLE PROBE 80-55632-00
27 HINGE ASSEMBLY 80-55651-05
28 KING VALVE ASSEMBLY * 80-55623-09
29 LIQUID RECEIVER 80-55623-12
30 POWER BOARD 80-55638-00
31 PRESSURE SWITCH 80-55641-01
32 PRESSURE VALVE 80-55641-03
33 SOLENOID VALVE BODY 80-55623-13
34 TEMPERATURE PROBE, NTC 80-55643-00
35 TX EXPANSION VALVE 80-55645-02
36 VALVE COIL DESMON 80-55646-02
37 SHELF RACK HOOK 80-55655-01
38 STICKER G7 TOUCH SCREEN CNTRL 80-55663-11
39 TRANSFORMER 230/12VAC 20VA 80-55663-15
40 UV LAMP MOD. G23 9W 80-55663-17
41 UV LAMP HOLDER MOD. G23 80-55663-18
42 UV LAMP BALLAST 5/7/9/11W 230V 80-55663-19
43 UV LAMP PROTECTION GRID 80-55663-31
44 DOOR PANEL W/TOUCH SCREEN 80-55663-37
45 OVERLOAD RELAY RF38 80-55663-38
46 SHELF RACK MOD. GBF-15 80-55663-39
1 BACK PANEL, MOTOR COMP. 80-55654-00
2 CASTOR, FIXED 80-55649-01
3 CASTOR, SWIVEL W/BRAKE 80-55649-00
4 COMPRESSOR 80-55622-07
5 CONDENSER COIL 80-55623-06
6 CONDENSATE PAN 80-55623-07
7 CONDENSER FAN MOTOR 400MM 80-55663-35
8 CONDENSER FAN PRTCN GRID 400MM 80-55663-34
9 CONDENSER FILTER 80-55623-08
10 CONTACTOR 80-55647-00
11 DISPLAY, TOUCH SCREEN 80-55644-00
12 DOOR GASKET 730X1098MM 80-55663-32
13 DOOR MAGNETIC SWITCH 80-55651-01
14 DOOR SPRING HINGE KIT 80-55627-00
15 DRAINAGE FITTING ASSEMBLY 80-55652-00
16 EVAPORATOR COIL 80-55629-01
17 EVAPORATOR COVER&FAN HOLDER 80-55663-33
18 EVAPORATOR COVER HINGE ASSY 80-55630-08
19 EVAPORATOR FAN 80-55630-03
20 FAN FINGER GUARD, EVAP 80-55630-06
21 FILTER DRIER 80-55631-02
22 FRAME HEATER, 230V 80-55651-04
23 FRONT PANEL 80-55663-36
*Not Pictured
