MAX-M10M-Integration manual

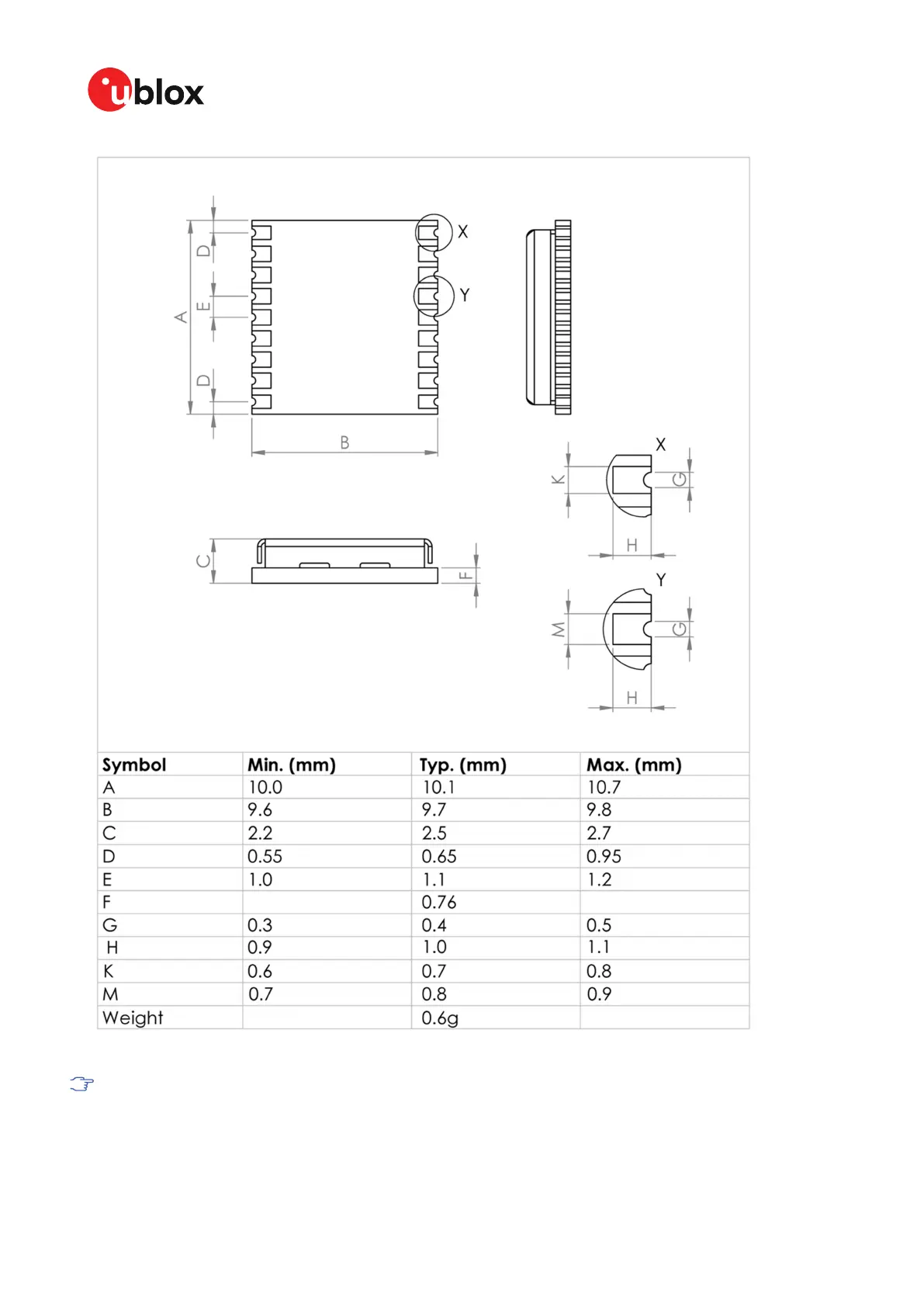

Figure 29: MAX-M10M mechanical dimensions
MAX form factor is 10.1 x 9.7 x 2.5 mm. All pins have 1.1 mm pitch and are 0.8 mm wide, except
the 4 pads at each corner (pin 1, 9, 10, and 18) that are only 0.7 mm.
Figure 30 and Figure 31 describe the footprint and provide recommendations for the paste mask.
Note that the copper and solder masks have the same size and position.
UBX-22038241 - R02

4 Hardware integration Page 73 of 92
C1-Public
