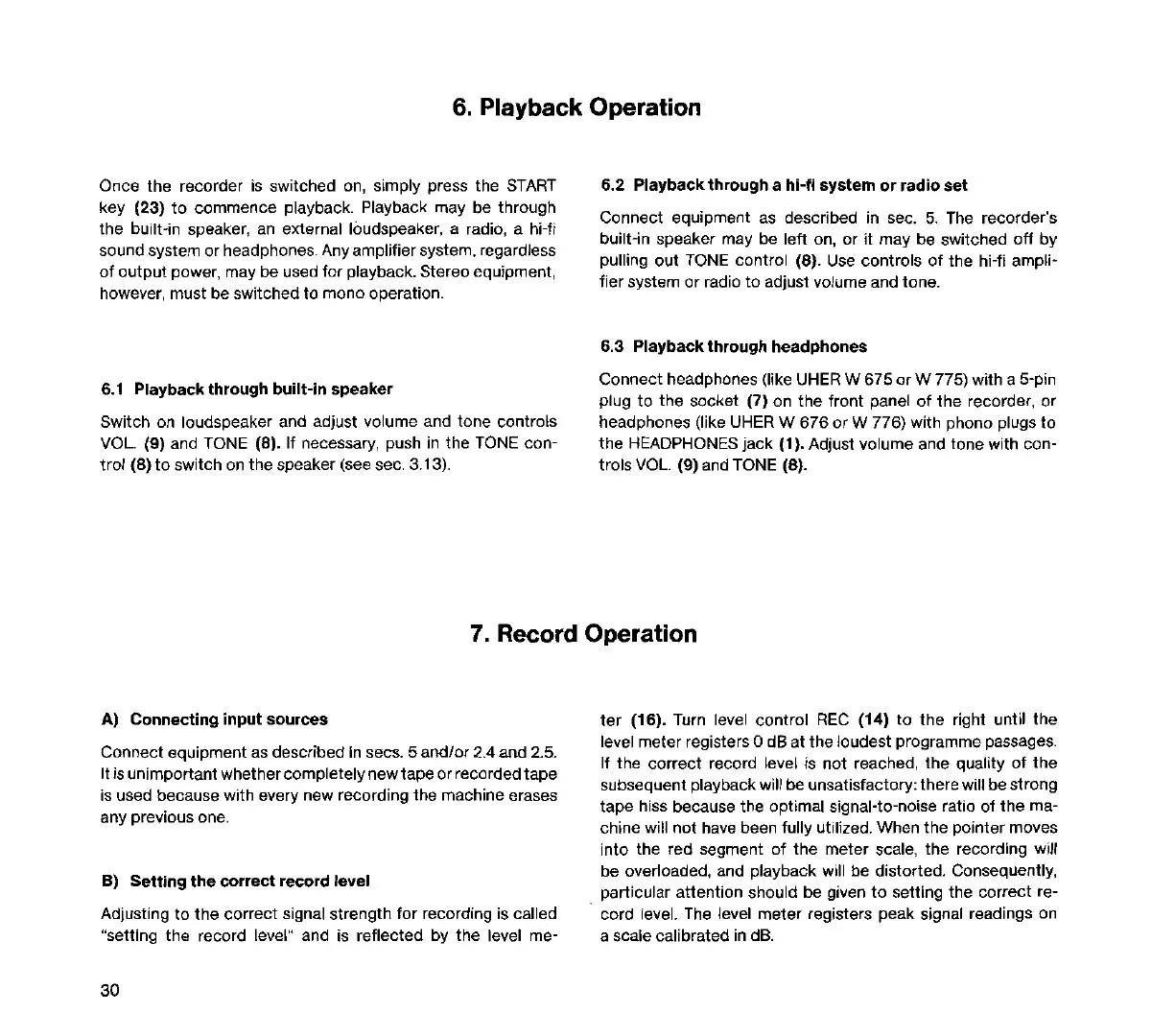

6.
Playback Operation
Once the recorder
is
switched on, simply press the
START
key (23)
to
commence playback. Playback may be through
the
built~in
speaker,
an
external loudspeaker, a radio, a hi-fi
sound system or headphones. Any amplifier system, regardless
of
output
power, may
be
used for playback.
Stereo
equipment,
however,
must
be
switched
to
mono
operation.
6.1
Playback
through
built-in
speaker
Switch
on
loudspeaker and adjust volums and tone controls
VOL. (9) and TONE (8). If necessary, push
in
the
TONE con-
trol
(8)
to
switch
on
the
speaker (see sec. 3.13).
6.2
Playback
through
a hi-fi
system
or
radio
set
Connect equipment as described
in
sec.
5.
The recorder's
built-in speaker may be left on,
er
11
may be switched
off
by
pulling out TONE contraI (8).
Use
controls
of
the hi-fi ampli-
fier system
or
radio
to
adjust volums and tone.
6.3
Playback
Ihrou9h
headphones
Connecl headphones (Iike UHER W 675 or W 775)
wilh
a 5-pin
plug to
the
socket (7) on
the
front panel
of
the
recorder,
er
headphones (Iike UHER W
676
or W 776) with phono plugs
to
lhe
HEADPHONES jack (1). Adjust volume and tone with con-
lrols
VOL. (9) and TONE (8).
7.
Record Operation
A)
Connecting
input
sources
Connect equipment as described
in
secs. 5
and/cr
2.4 and
2.5.
lt is unimportant whethercompletely
newtape
or recarded tape
is used because with every new recording the machine erases
any previous one.
B)
Setting
the
correct
record
level
Adjusting
to
the
correct signal strength for recording is called
"setting
the
record level" and is reflected by
the
level me-
30
ter
(16). Turn level contral
REC
(14) to
the
right unlil
lhe
level meter registers 0 dB at the loudest programme passages.
If the correct record level is not reached,
the
quality
of
the
subsequent playback will be unsatisfactory: there will be strong
tape hiss because the optimal signal-to-noise ratio
of
the
ma-
chine will not have been fully utilized. When
the
pointer moves
into the red segment
of
the
meter scale, the recording will
be overloaded, and playback will be distorted. Consequently,
particular attention should be given
to
setting the correct re-
. cord level. The level meter registers peak signal readings on
a scale calibrated
in
dB.
