X-Axis
Page | 47
X-Axis

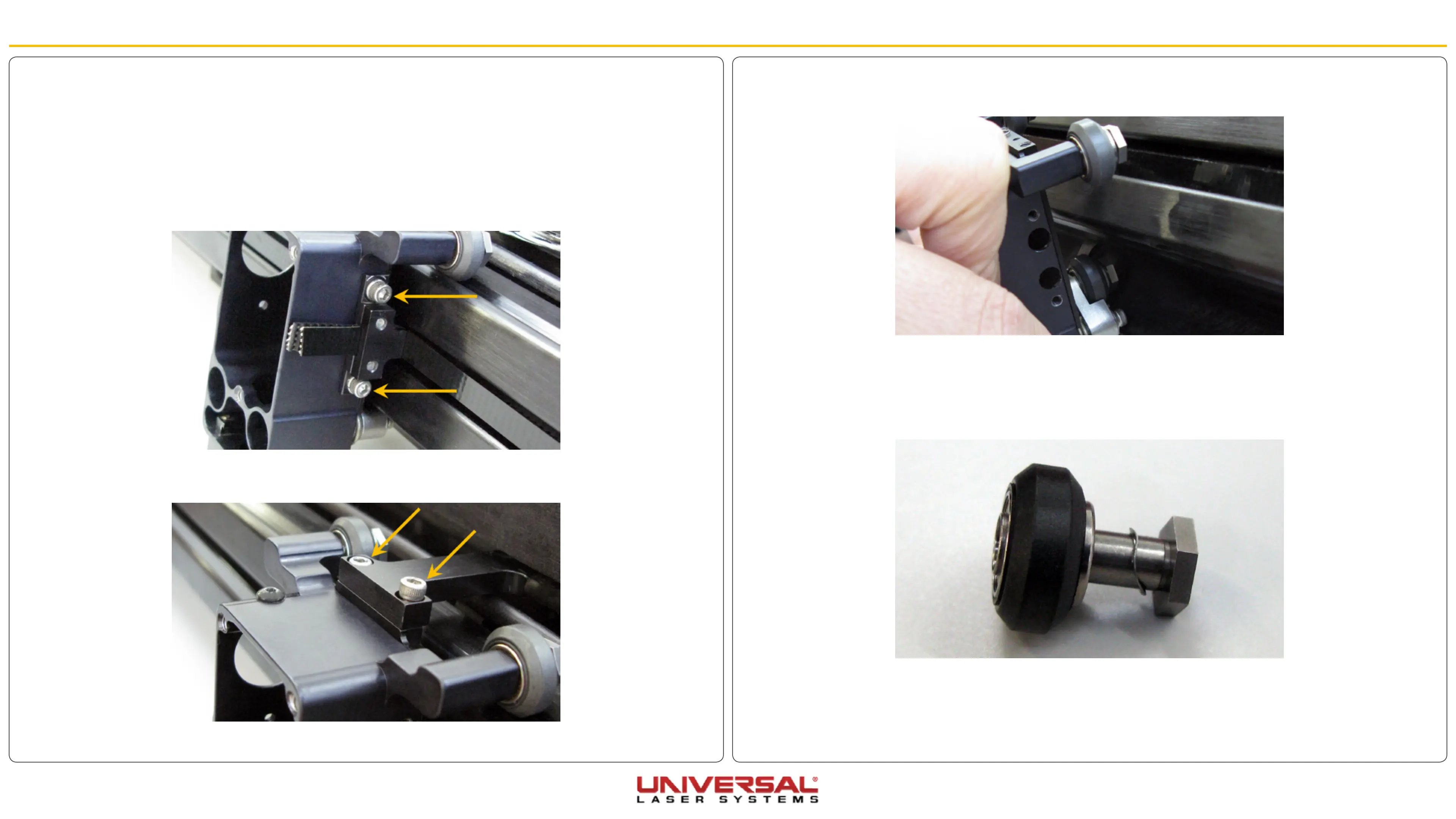

6. Keeping in mind that the bottom bearing in the carriage is spring loaded, grab hold of the Focus
Carriage and gently push up, then tilt forward to remove the Focus Carriage from the X-axis Arm.
7. Hold the Focus Carriage or place it on a flat surface facing down and remove all 3 bearings.
8. Take notice of the Bearing Assembly. There is a small wave washer between the head of the axle and
the bearing. Be careful not to lose or damage this washer. The bearing itself has no orientation and can
be installed with either surface against the carriage as long as all three are installed in the same
direction.
9. Installation is opposite of removal.
X-Axis Bearings
1. Power OFF and unplug the VLS.
2. Open the Top Door and bring the X-axis Arm forward.
3. Bring the Focus Carriage to the middle of the X-axis Arm.
4. Remove the 2 screws located to the right of the Focus Carriage on the belt clamp. Be careful not to lose
the washers.
5. If Air Assist is installed, unscrew the two screws that hold the Hook Manifold in place and set the screws
aside. DO NOT pull the Air Assist hoses out of the Air Assist Track.
