Electronics
Fuse

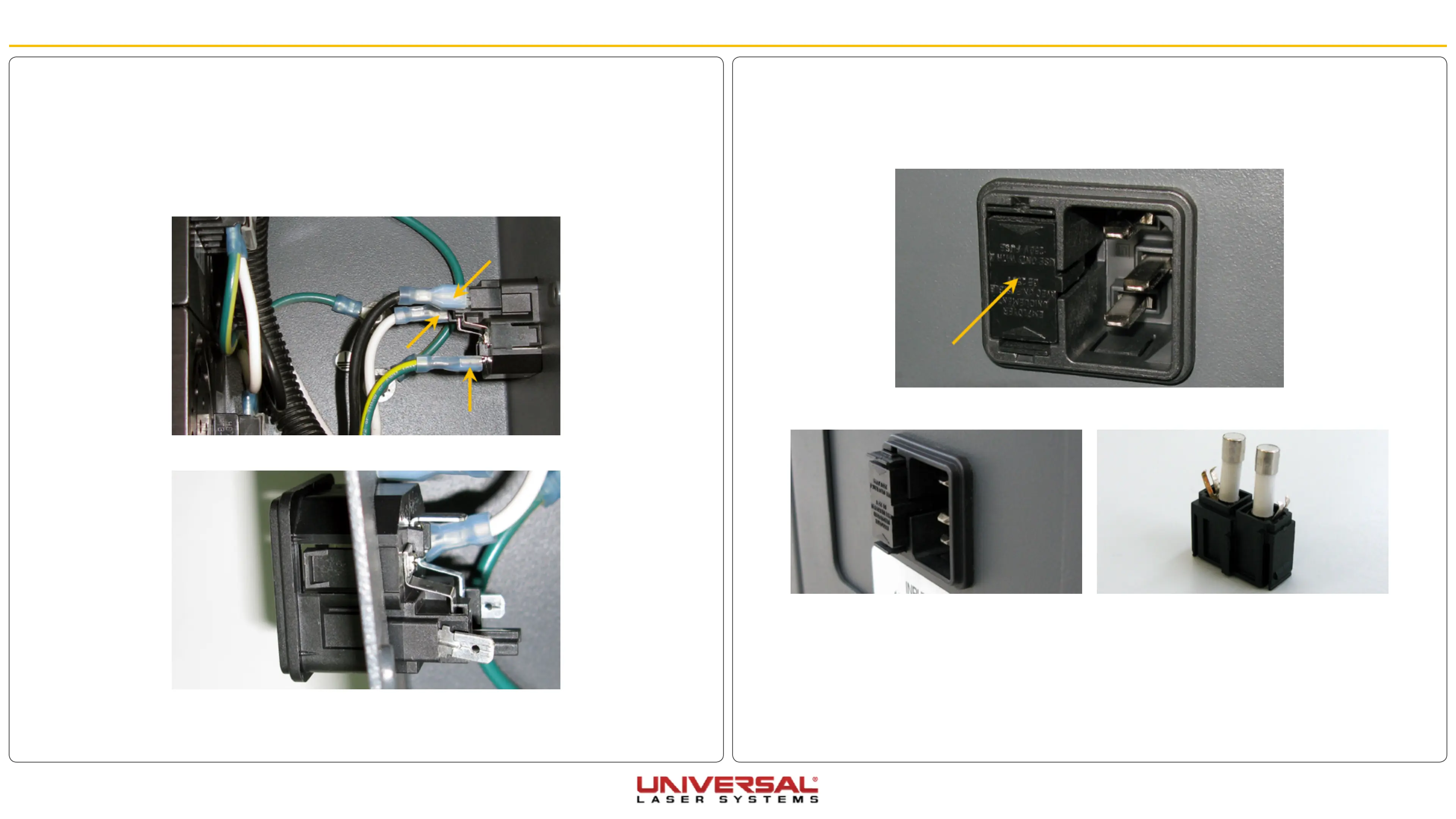

1. Power OFF and unplug the VLS system.
2. Locate the fuse drawer located on the AC power inlet.
3. Using a small flat head screwdriver remove the fuse drawer.
4. Installation is opposite of removal.
AC Power Inlet
1. Power OFF and unplug the VLS system.
2. Remove the Power Supply module.
3. Turn the power supply module over and set it on a safe, flat surface.
4. Locate and disconnect the wiring running from the power supplies and the ground to the inlet.
5. Press the tabs on the side of the AC Inlet and push out of the power supply housing.
6. Installation is opposite of removal.
