F77 Fuse Replacement
• A fuse , otherwise called as a Safety fuse is a major safety device in any
electrical circuit.
• It is sometimes termed as a body-guard of the circuit.
• Fuse saves a system against damage due to excessive ow of current due
to various reasons.
Procedure of checking fuse

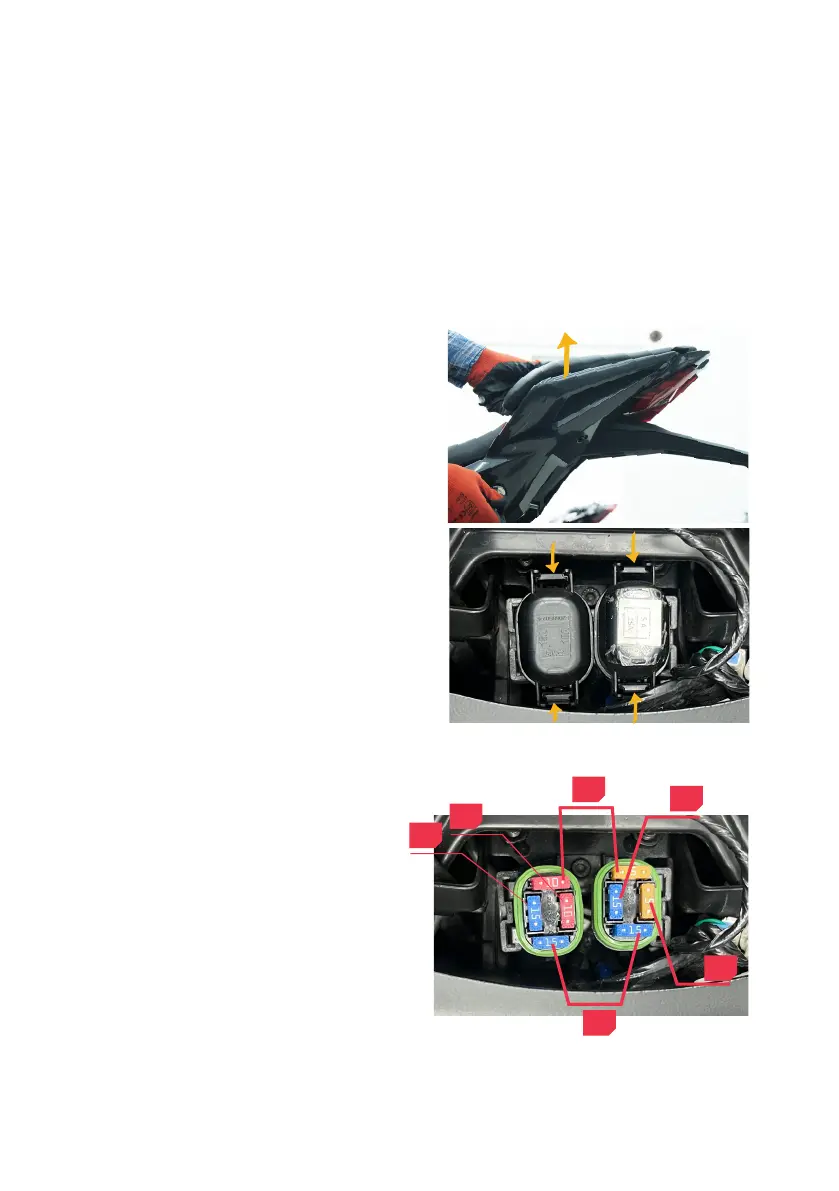

1. Unlock and remove the pillion seat.
2. Press the lock clips, lift and open the
fuse cover as shown.
3. The fuses and their applications.
1. 15a abs main
2. 10a abs sub
3. Spare
4. 15A dc-dc output
5. 5a vcu
6. spare
1
3
4
6
5
2
