um RENEGADE SCRAMBLER SPORT 125 User Manual

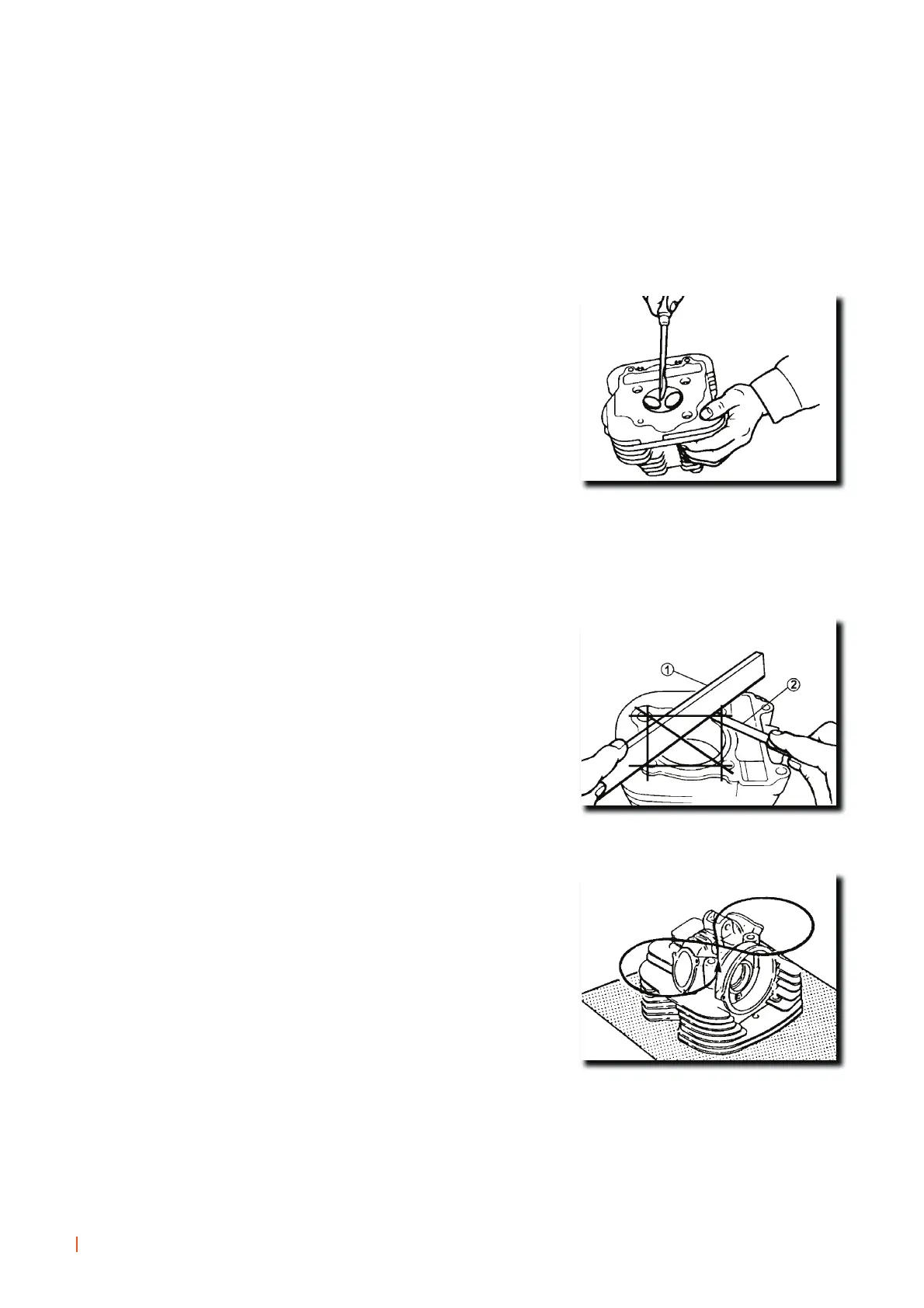

CYLINDER HEAD
1. Eliminate:
- Carbon sediments (from the combustion chamber) Use a
rounded spatula.
N.B.:
AVOID USING ANY SHARP EDGED INSTRUMENT THAT CAN
CAUSE DAMAGE AND SCRATCHING.
- IN THE SPARK PLUG THREADS
- ON THE VALVE SEATS.
2. Inspect:
- Cylinder head
Wear/damage => Renew.
Steps for measuring distortion and for rectification:
Place a ruler (1) and a thickness calliper (2) on the head
cylinder surface, as in the figure to the side.
- Place a 400 ~ 600 emery paper on a flat surface and rec-
tify the surface of the cylinder head by making figure eight
movements.
N.B.:
TURN THE CYLINDER HEAD SEVERAL TIMES TO PREVENT
EXCESSIVE MATERIAL FROM BEING REMOVED FROM ONE
SIDE ONLY.
48
INSPECTION AND REPAIR
WORKSHOP MANUAL

um RENEGADE SCRAMBLER SPORT 125 Specifications

General

Fuel System	Electronic Fuel Injection
Bore x Stroke	56.5 mm x 49.5 mm
Starting	Electric
Engine Type	Single cylinder, 4-stroke, air-cooled
Max Torque	10.5 Nm @ 8, 250 RPM
Gearbox	5-speed
