um RENEGADE SCRAMBLER SPORT 125 User Manual

EMS Link
EMS Link—Installation and
User Manual
4
10 NC NC NC
11 NC NC NC
12 NC NC NC
13 NC NC NC
14 Comm. Line CAN1L CAN Bus low
15 NC NC NC
16 Power BAT+ KL30 permanent power
EMS Link
This file is in Glasscubes or ask through e-mail, download in
your computer and via USB cable put the file in your android
phone , If the App doesn't open, go to settings and unlock it.
Now you can start !

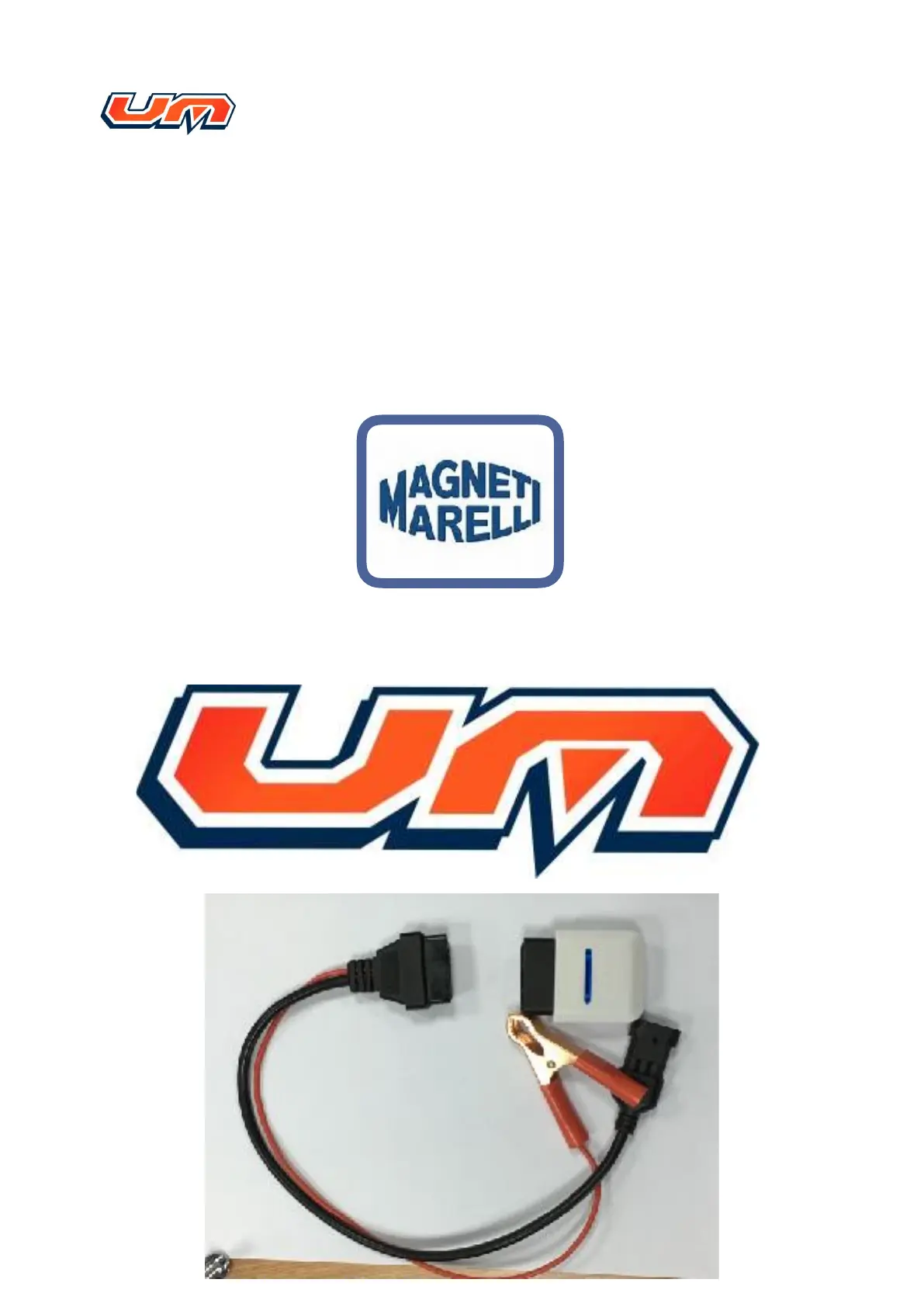

The diagnostic cable part. number :

um RENEGADE SCRAMBLER SPORT 125 Specifications

General

Fuel System	Electronic Fuel Injection
Bore x Stroke	56.5 mm x 49.5 mm
Starting	Electric
Engine Type	Single cylinder, 4-stroke, air-cooled
Max Torque	10.5 Nm @ 8, 250 RPM
Gearbox	5-speed
