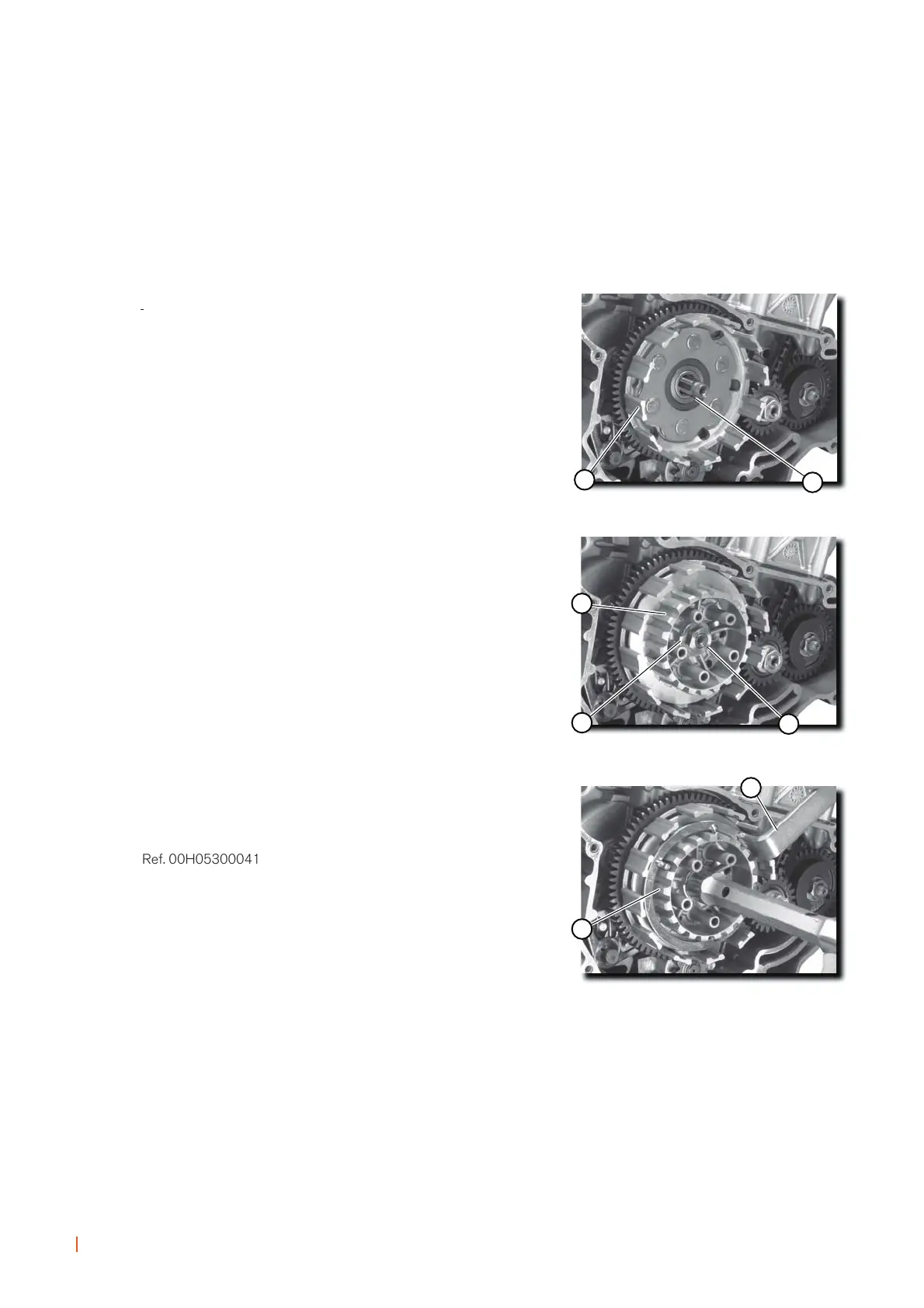

I NSTALLING THE CLUTCH
Fit:
- The clutch bell housing (1).
- The washer (2).
Fit:
- The clutch bell housing (3).
- The seal (4).
- The nut (5).
The clutch housing nut:
3,5-4,5 kgf.m (35-45 N.m)
Closing:
- The seal tab (4).
- Use the clutch housing (7) fitting key (6) .
Bell housing extraction tool:
Ref. 00H05300041
N.B.
See chapter (identification of sets).
I
2
1
3
5
4
6
7
70
ASSEMBLING THE ENGINE
AND ADJUSTMENTS
WORKSHOP MANUAL
Ref. T01010042
