um RENEGADE SCRAMBLER SPORT 125 User Manual

C RANKCASE PARTS

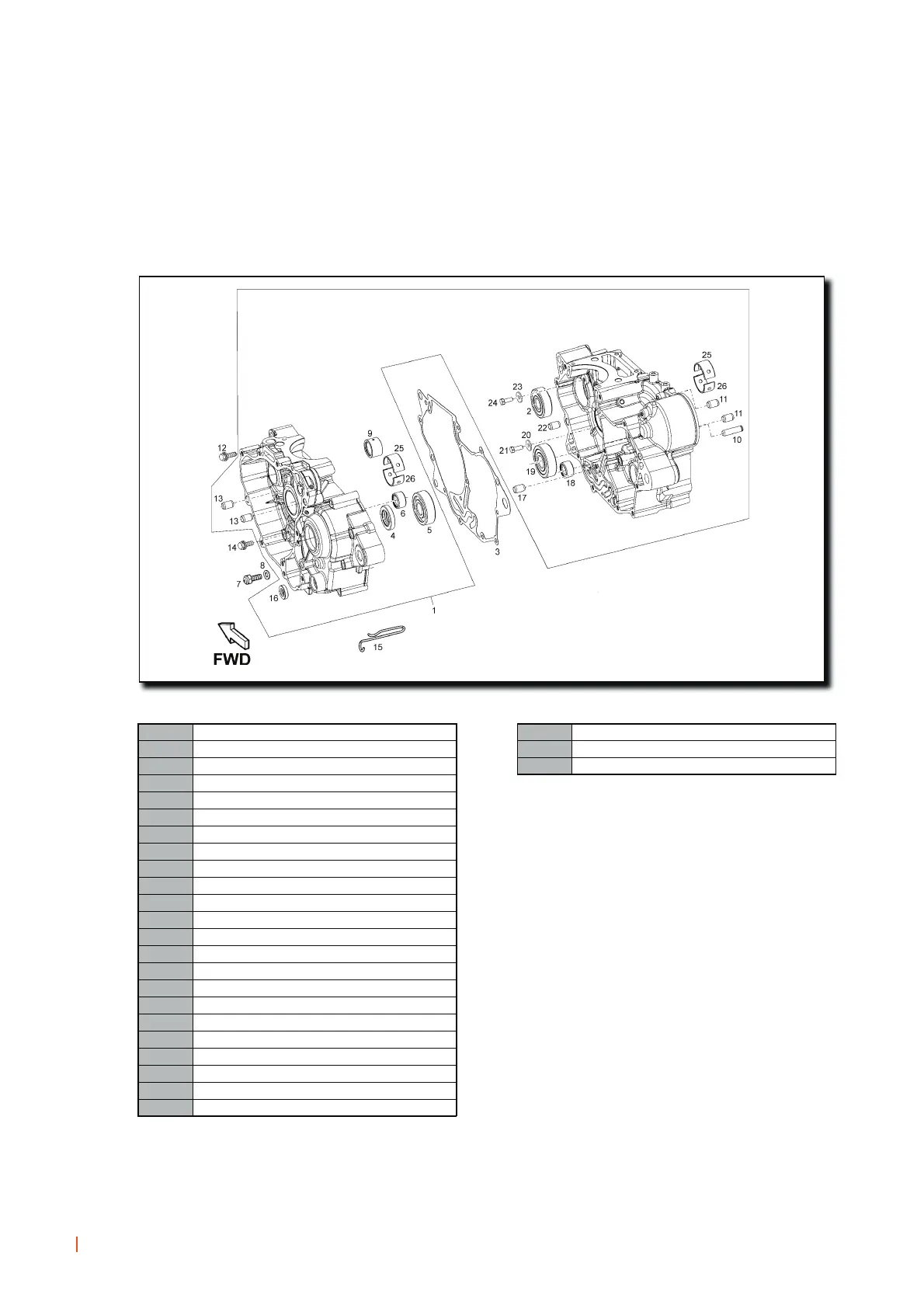

Crankcases assy.
Counterweight bearing
Crankcase gasket
Crankshaft oil seal
Secondary shaft bearing
Primary shaft needle bearing assy.
Neutral switch
Gasket
Counterweight shaft needle bearing assy.
Bolt
Key
M6x75 hex. bolt
Key
m6x60 bolt
Clamp
Selector lever shaft oil seal
Centring stud
Secondary shaft needle bearing assy.
Primary shaft bearing
5.2x15x1.5 washer
M5x14 bolt
Centring stud
5.2x15x1.5 washer
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
M5x14 bolt
Top mounting blue semi-bearing
Bottom mounting blue semi-bearing
67
ASSEMBLING THE ENGINE
AND ADJUSTMENTS
WORKSHOP MANUAL

um RENEGADE SCRAMBLER SPORT 125 Specifications

General

Fuel System	Electronic Fuel Injection
Bore x Stroke	56.5 mm x 49.5 mm
Starting	Electric
Engine Type	Single cylinder, 4-stroke, air-cooled
Max Torque	10.5 Nm @ 8, 250 RPM
Gearbox	5-speed
