Unex SOM-352 Series User Manual

Doc. No: Unex-QSG-21-003
13/30
A printed version of this document is an uncontrolled copy
© 2023 Unex Technology Corporation – Company Confidential

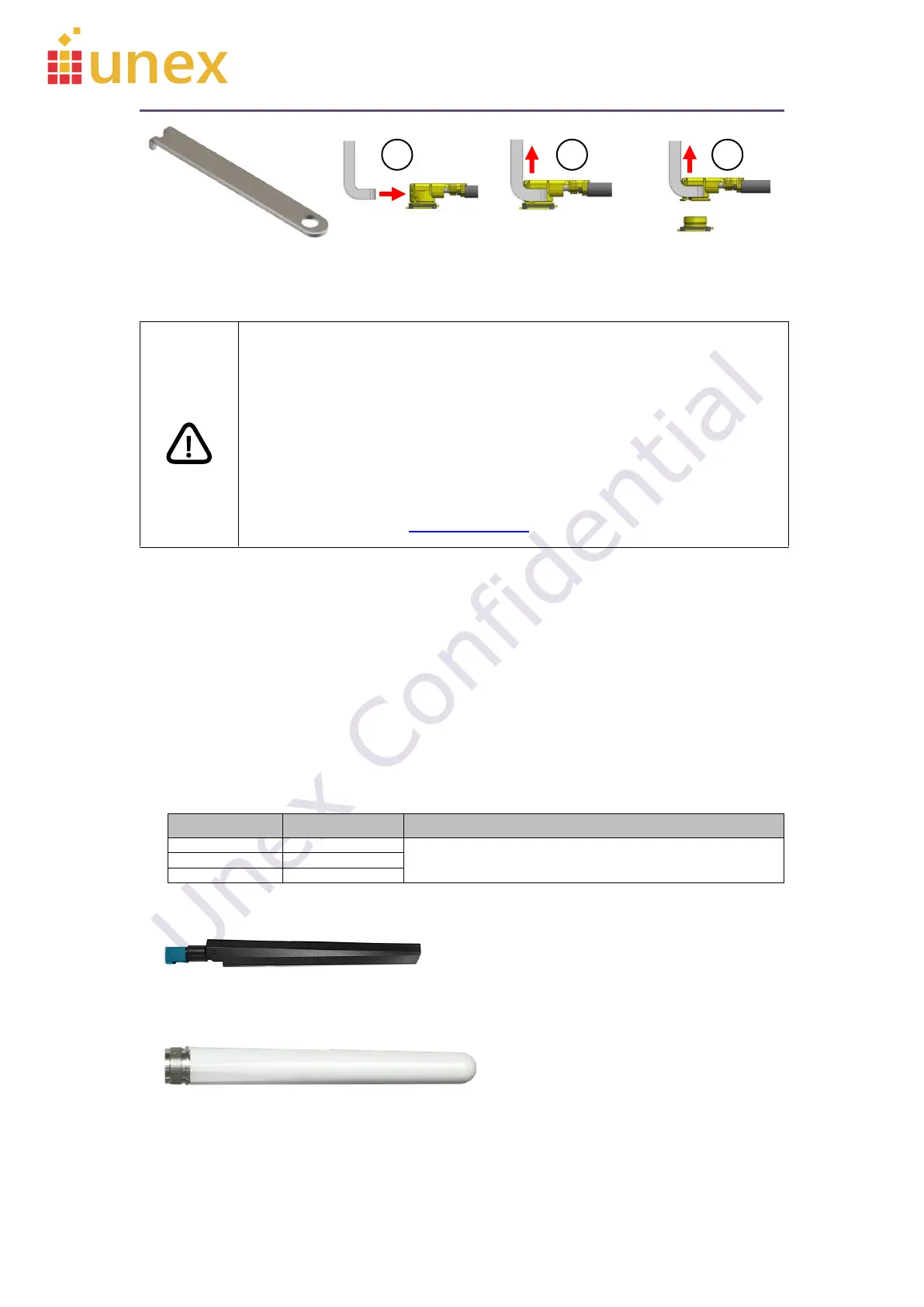

Figure 4: Antenna cable extraction tool
Caution
1 Always use only the extraction tool recommended by the plug
manufacturer of your choice. It is possible to cause severe damage
on the receptacle if a third-party extraction tool is used. For
example, using an I-PEX tool on a HIROSE plug has been known to
lead to connector damages.
2 It is very important to keep the extraction tool at a vertical position
at all time, and apply only vertical pulling force on the tool. Applying
a non-vertical force or using the tool in a crowbar style will damage
not only the antenna connector but also other components in
proximity.
3 Please follow HIM-10002-06EN for more detailed instructions.
8.1.1. 5.9GHz V2X
The V2X antenna ports has a built-in antenna detection function (see TABLE 6). This
detection mechanism only works with Unex V2X antennas EX-55 or EX-53 antennas. EX-
55/EX-53 antennas are not included in SOM-352 product package and can be purchased
separately.
Table 6: V2X antenna status
Antenna Status
Value
Command
OPEN
616-1023
V2X0: cat /sys/bus/iio/devices/iio\:device0/in_voltage4_raw
V2X1: cat /sys/bus/iio/devices/iio\:device0/in_voltage5_raw
NORMAL
410-615
SHORT
0-409
Figure 5: V2X antennas EX-55/EX-53
1
2
3
EX-55
Gain: 5dBi
Radiation Pattern: Omni-directional
Application: Indoor/OBU
Connector: FAKRA-Z
EX-53
Gain: 7.6dBi
Radiation Pattern: Omni-directional
Application: Outdoor/RSU
Connector: Type N
