Model UT107: OPERATING MANUAL

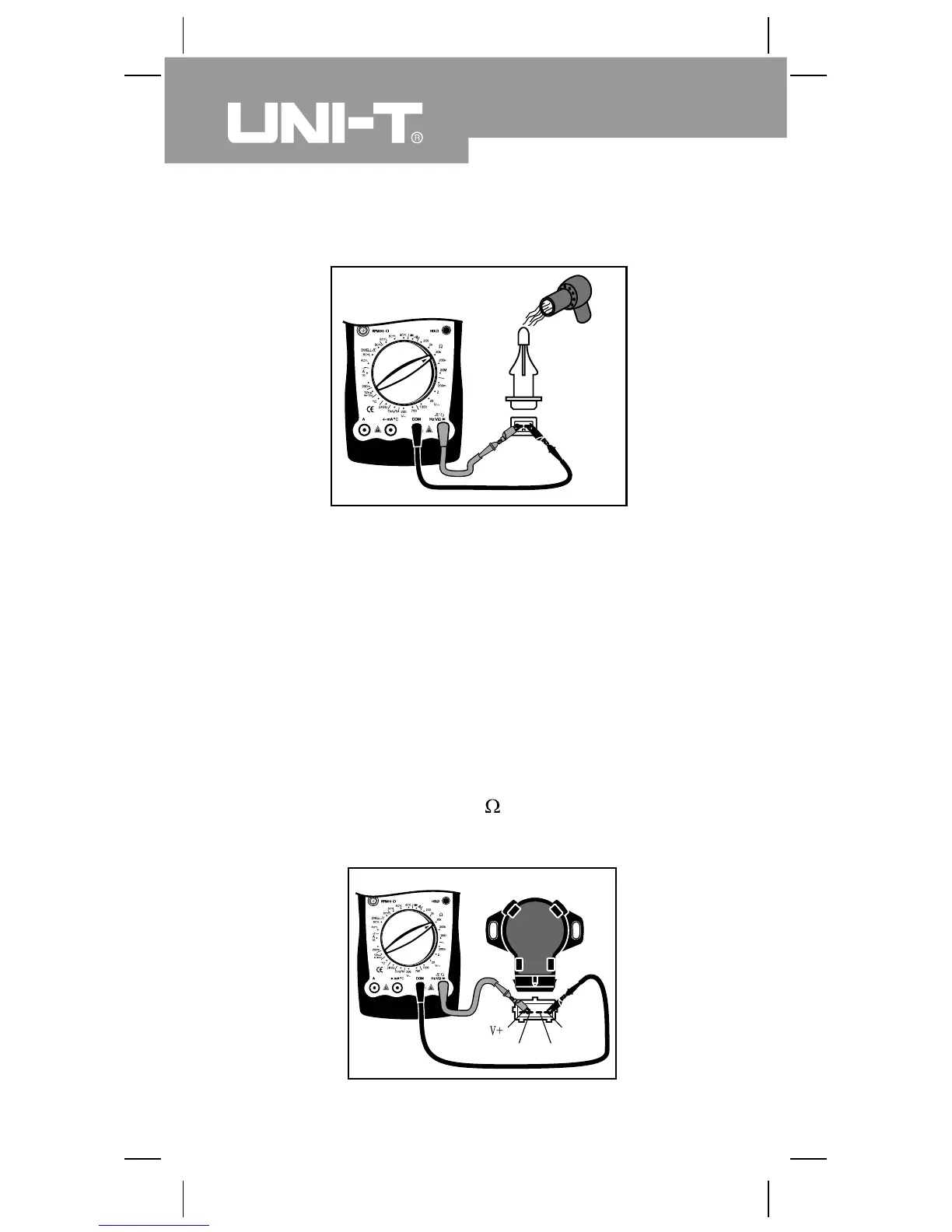

2. Temperature Sensor (see figure 22)
(figure 22)
Red Black
Testing Procedure:
The same as in the resistance testing method.
When the general temperature of a heating sensor
rises, its resistance will drop. The thermal resistance
of the temperature sensor of the automotive engine
is generally less than 300 .
(1)
(2)
3. Position Sensor (see figure 23)
(figure 23)
The temperature sensor changes the output resistance
through the changes in peripheral temperatures. The
hotter the sensor is, the lower the resistance becomes.
The temperature sensor is generally used in engine
braking, air ventilation, flow, fuel temperature and other
equipment.
Heater
Temperature
Sensor
Toyota Motor Throttle
Position Sensor
Signal Terminal
Empty Foot
Ground
To Next Page
