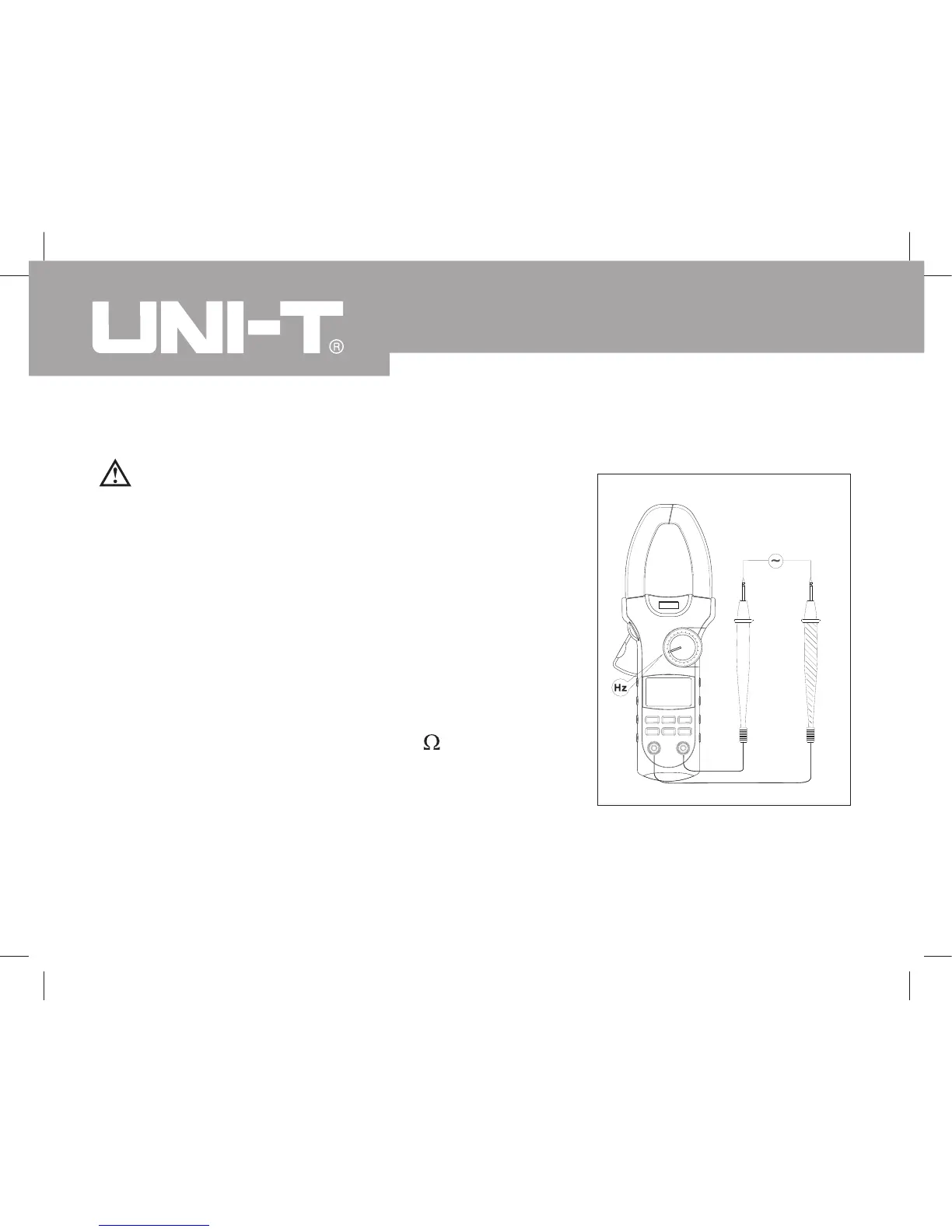

E. Frequency Measurement (see figure 7)
To avoid harms to you or damages to the Meter
from eletric shock, do not attempt to measure
voltages higher than 600V AC/DC, although
readings may be obtained.
The frequency ranges are:
660Hz, 6.6kHz, 66kHz, 660kHz, 6.6MHz and 66MHz.
To measure frequency, connect the Meter as follows:
Insert the red test lead into the V Hz terminal
and the black test lead into the COM terminal.
Set the rotary switch to %Hz. Frequency
measurement mode is a default or press SELECT
to switch to Hz measurement mode.
Connect the test leads across with the object
1.
2.
3.
Red
Black
Figure 7
Warning
Model UT207/208: OPERATING MANUAL
