Uniclass RH144 - Connection Diagram; 6 Modes Diagram

4

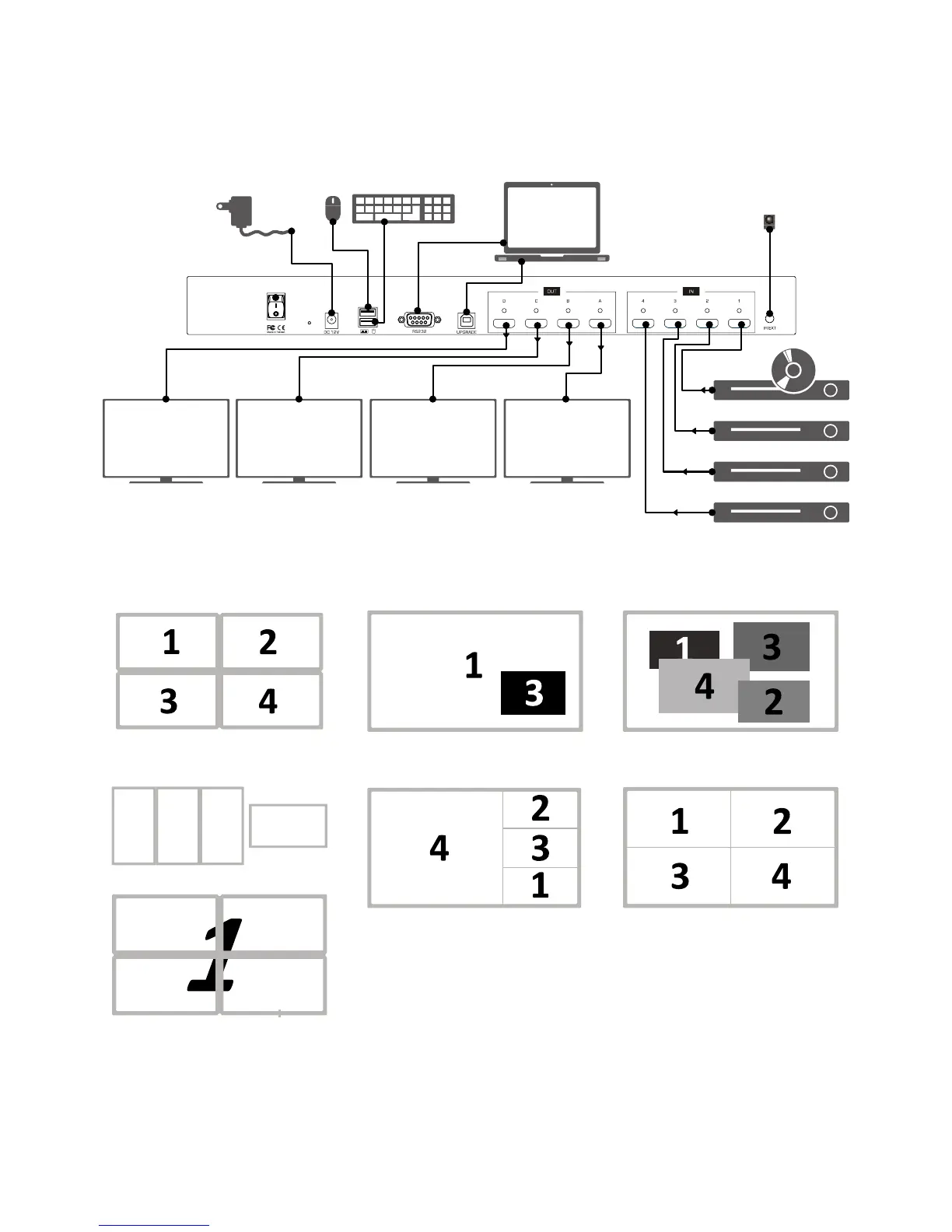

Connection diagram
The diagram illustrated here is an example, the actual application may vary. All illustrated computer,
accessories and monitors are not included in the package, it is for reference only. Make sure all the
devices and peripherals are connected appropriately before using this unit.
ABCD
Video source 1
Video source 2
Video source 3
Video source 4
IR extender
Keyboard
MousePower adapter
6 modes diagram
Matrix mode
PIP mode Windows mode
Quadview modePAP mode
Video wall mode
or
1
1
