Page 15
BLUESTREAK SERIES
INSTALLATION & OPERATING MANUAL
POWERING TECHNOLOGY
Document Number: BLUESTREAK-MAN Rev. 6
bluestreak-man-rev6-0719.indd
11.0 SAFETY AND INDUSTRY STANDARDS
11.1 BLUEstreak modules and power shelves meet the following safety standards:
UL60950-1, 2nd Edition
CSA22.2 No. 60950-1, 2nd Edition
EN60950-1, 2nd Edition
11.2 BLUEstreak modules and power shelves are CE Marked to indicate conformance with the
European Union’s Low Voltage Directive.
11.3 Input conducted EMI meets FCC20780 part 15J Curve B and EN55022 Curve B.
11.4 Input harmonics, meets EN61000-3-2 Class D
11.5 Immunity, meets the following:
Input fast transients, line to line – EN61000-4-4, level 3, criteria A
Input surges, line to line – EN61000-4-5, level 3, criteria A
Input surges, line to ground – EN61000-4-5, level 4, criteria A
ESD – EN61000-4-2, level 4, criteria A
Radiated – EN61000-4-3, criteria A (10V/m)
Dips, Interruptions & Variations – EN61000-4-11, criteria B/C
12.0 OPERATING INFORMATION
12.1 Input Voltage and Connection - The BLUEstreak Series operates from worldwide AC
input voltages in the range of 85 to 264 VAC at 47 to 63 Hz. There are restrictions to the
available total output power when operating at low line, 85-132VAC. The three-wire AC
connection is made to pins P1, P2 & P3 on the rear mounted connector. See the connector
diagram and Pin Connections table in Figure 5.
12.2 Output Connections - The main output is provided on pins P4 to P9 on the connector.
Three pins (P4 to P6) are connected together internally for the +V Out; three other pins (P7
to P9) are connected together internally for the V Return. The output is fully oating and
may be congured for positive or negative operation.

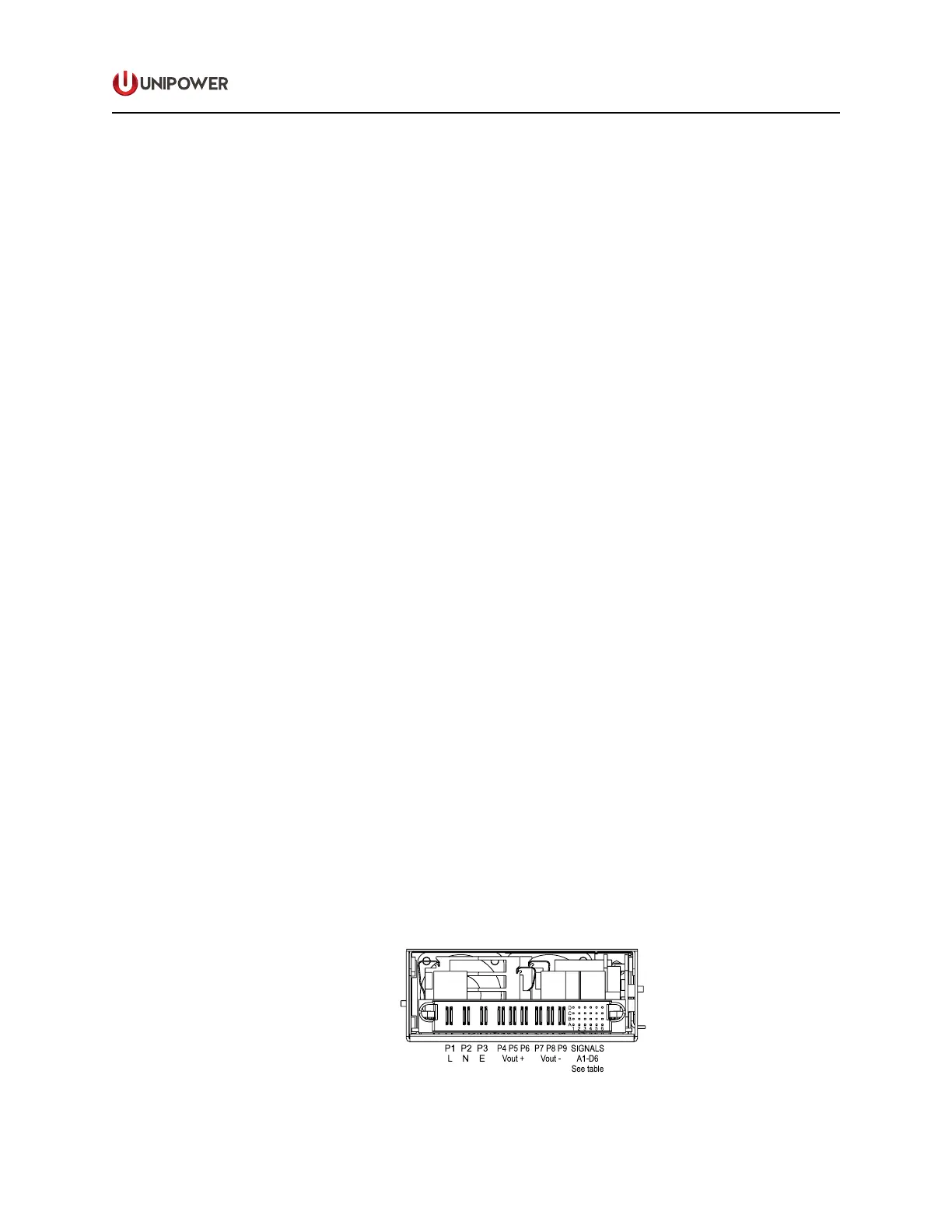

Figure 6 - Module Rear View showing connection details
