UNIRAC EcoFoot2+ - Step 6 & 8: Conductors and Deflectors

INSTALLATION GUIDE
PAGE
11
10-DEGREE BALLASTED RACKING SYSTEM
STEP 6: Route, connect, and secure conductors.
TIP:
Wire clips attached to the module ange (not included) can be used to dress
conductors in a row of modules. Integrated snap features in the Base can be
used to dress conductors bridging rows.

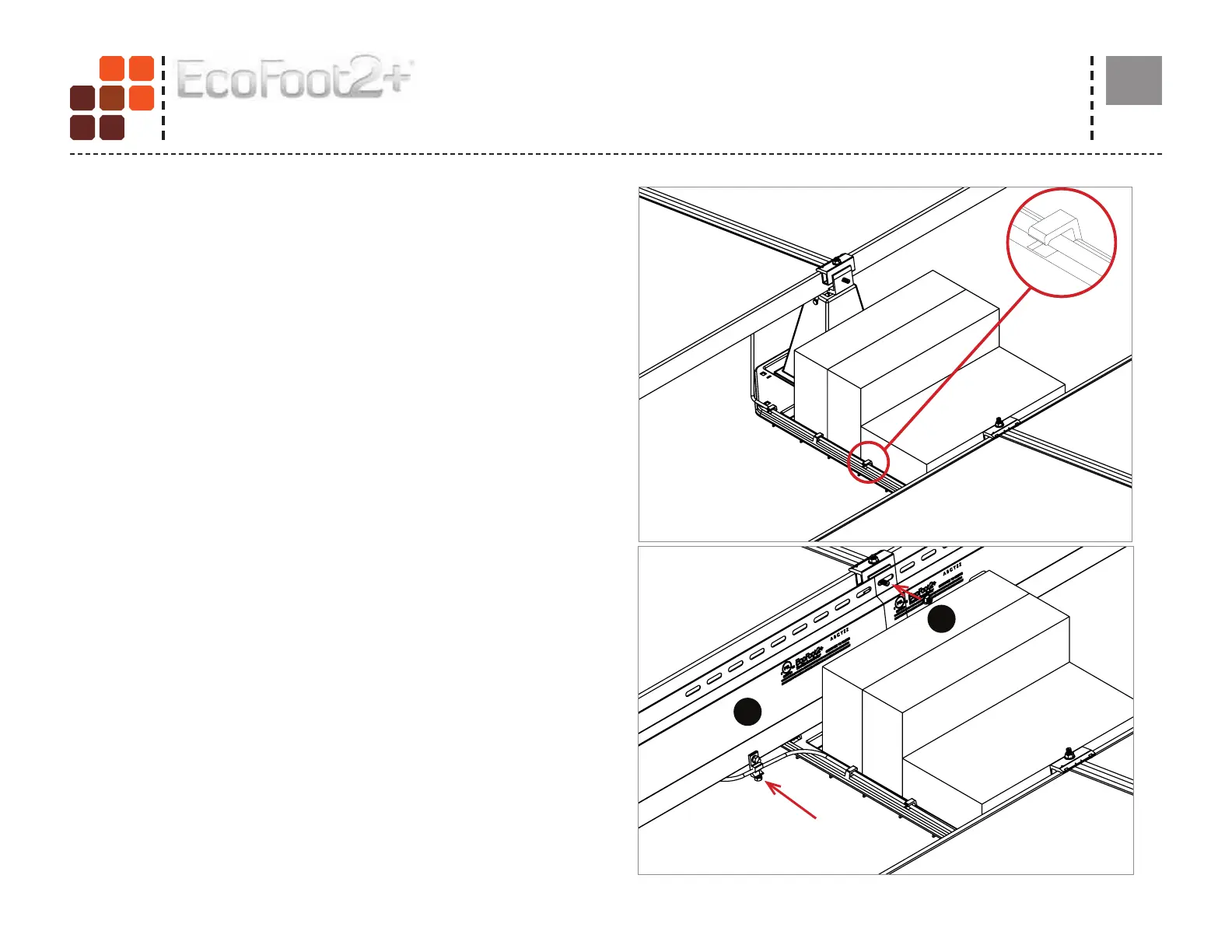

STEP 8: Place Deectors (E) into slot on EcoFoot2+® Base and attach to Rock-
er using Nut (F) provided. Using a 1/2" deep socket, torque Nut (F). Application
of anti-seize on threaded post is recommended.
Torque Nut to 14 ft-lbs.
A
DETAIL
A
SCALE
4 : 1
A
DETAIL
A
SCALE
4 : 1
A
DETAIL
A
SCALE
4 : 1
E
F
SYSTEM INSTALLATION STEPS
STEP 7: For systems that utilize mid supports, install them prior to installing
wind deectors in the next step. See Mid Support Installation section for in-
structions
