INSTALLATION GUIDE
PAGE
16
10-DEGREE BALLASTED RACKING SYSTEM
ROOF ATTACHMENT WITH STRUT
INSTALLATION OF ROOF ATTACHMENT WITH STRUT TOOLS REQUIRED
Torque fasteners to 14 ft-lbs.

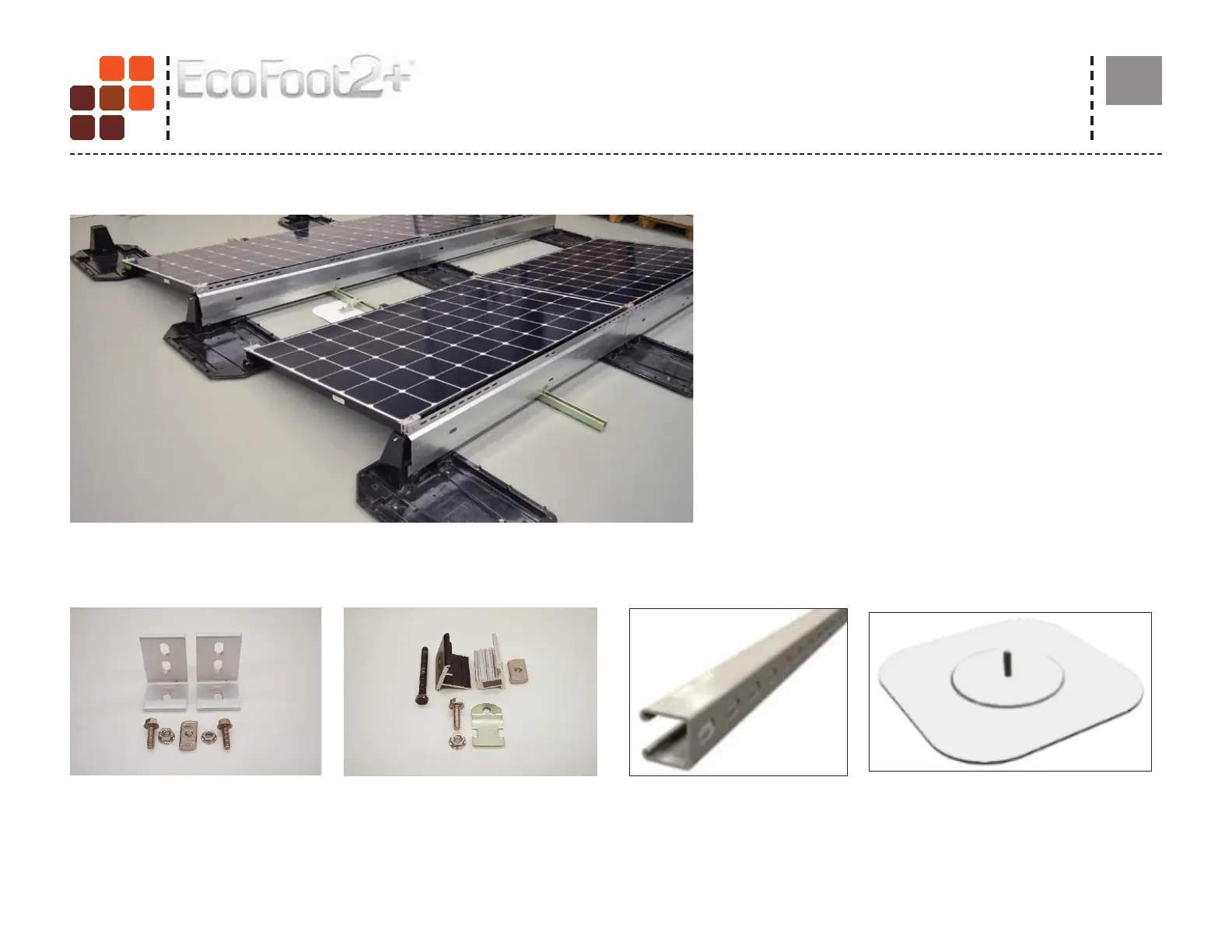

Overview of Attachment System
COMPONENTS
EcoFoot Roof to Strut Hardware Kit
P/N: ES10843
EcoFoot Strut to Module Hardware Kit
P/N: ES10844
Strut (1-5/8” x 1-5/8”) Roof Attachment
Length specied on array layout. Specied based on roof type.
Note:
Roof Attachments require roong screws, available by others. Check with
building engineer or attachment manufacturer for screw requirements.
1. 1/2" Deep Socket
2. 9/16" Deep Socket
3. 1/2" Box End Wrench
4. Calibrated Torque Wrench
5. Power Drill with 3/8" Drill Bit
Note: P/N: Part Number
